Visualizable MEA Electrolysis Cell
Visualizable MEA Electrolysis Cell
Visualizable MEA Electrolysis Cell

Visualizable MEA Electrolysis Cell

$2355.92
item_NoSpecificationsPrice
MA-EN-BE-009701MEA Visualization Type A (10×10 mm)$2355.92
MA-EN-BE-009702MEA Visualization Type A (20×20 mm)$2355.92
MA-EN-BE-009703MEA Visualization Type A (5 cm²)$2355.92
MA-EN-BE-009704MEA Visualization Type A (30×30 mm)$30203.78
MA-EN-BE-009705MEA Visualization Type A (50×50 mm)$30203.78
MA-EN-BE-009706MEA Visualization Type B (10×10 mm)$2355.92
MA-EN-BE-009707 MEA Visualization Type B (20×20 mm)$2355.92
MA-EN-BE-009708MEA Visualization Type B (5 cm²)$2355.92
MA-EN-BE-009709 MEA Visualization Type B (30×30 mm)$30203.78
MA-EN-BE-009710MEA Visualization Type B (50×50 mm)$30203.78
✓ Selected: MA-EN-BE-009701 / MEA Visualization Type A (10×10 mm)
Quality Assurance
Factory Direct
Global Shipping

Details

Product Advantages

MA-EN-BE-009704

MA-EN-BE-009705

MA-EN-BE-009709

MA-EN-BE-009710
Prices for the above specifications are placeholder prices. Please contact our customer service for quotations.

Product Description & Specifications

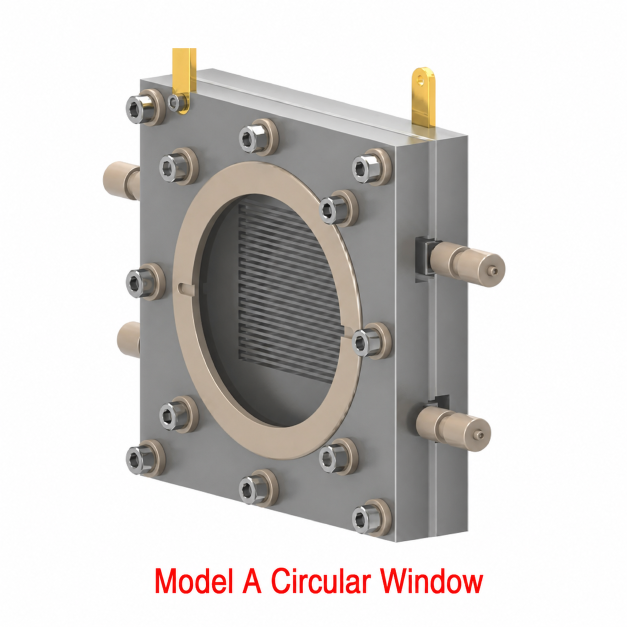

Model: MEA Visualization Type A

This cell is designed for research tests including electrochemical CO₂ reduction, alkaline anion exchange membrane water electrolysis and other electrochemical processes.

•Both anode and cathode are equipped with optical visualization windows for in-situ observation and high-speed photography.

•Visualization MEA cells are available in two versions as required: Type A with circular windows and Type B with square windows.

•The cathode features hollow serpentine flow channels, and the anode adopts hollow multi-parallel flow channels.

Model: MEA Visualization Type B

This cell is designed for research tests including electrochemical CO₂ reduction, alkaline anion exchange membrane water electrolysis and other electrochemical processes.

•Both anode and cathode are equipped with optical visualization windows for in-situ observation and high-speed photography.

•Visualization MEA cells are available in two versions as required: Type A with circular windows and Type B with square windows.

•The cathode features hollow serpentine flow channels, and the anode adopts hollow multi-parallel flow channels.
