Membrane Electrode Assembly (MEA) Electrolytic Cell with Viewing Window

$2355.92

item_No:MA-EN-BE-009701

Specifications

✓ Selected: MEA Visualization Type A (10×10 mm)

Quantity

Quality Assurance

Factory Direct

Global Shipping

Details

Product Advantages

MA-EN-BE-009704

MA-EN-BE-009705

MA-EN-BE-009709

MA-EN-BE-009710

Prices for the above specifications are placeholder prices. Please contact our customer service for quotations.

Product Description & Specifications

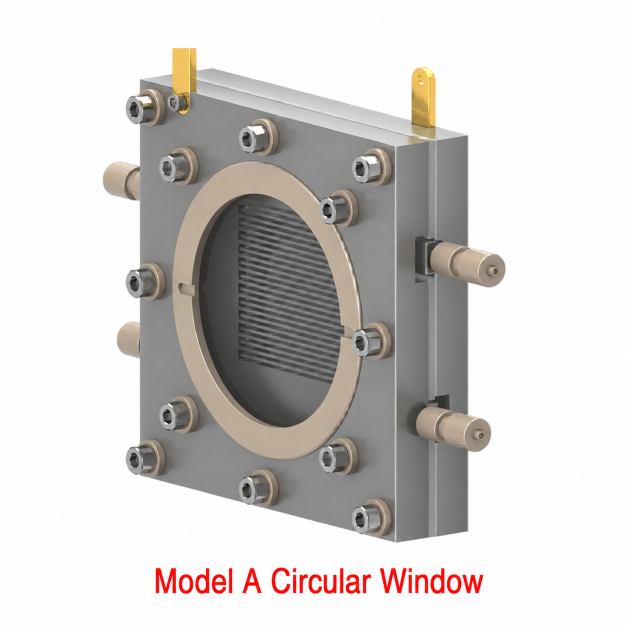

Model: MEA Visualization Type A

This cell is designed for research tests including electrochemical CO₂ reduction, alkaline anion exchange membrane water electrolysis and other electrochemical processes.

•Both anode and cathode are equipped with optical visualization windows for in-situ observation and high-speed photography.

•Visualization MEA cells are available in two versions as required: Type A with circular windows and Type B with square windows.

•The cathode features hollow serpentine flow channels, and the anode adopts hollow multi-parallel flow channels.

Model: MEA Visualization Type B

This cell is designed for research tests including electrochemical CO₂ reduction, alkaline anion exchange membrane water electrolysis and other electrochemical processes.

•Both anode and cathode are equipped with optical visualization windows for in-situ observation and high-speed photography.

•Visualization MEA cells are available in two versions as required: Type A with circular windows and Type B with square windows.

•The cathode features hollow serpentine flow channels, and the anode adopts hollow multi-parallel flow channels.
