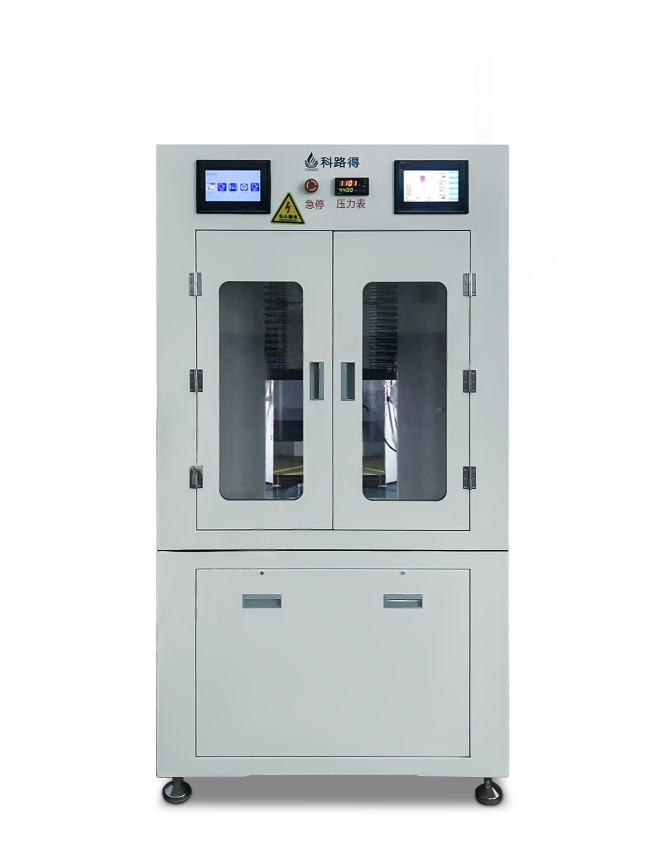

Vertical Fixture-Type Battery Formation Machine

Model：

CAN-FOR24-5V6A64CH

Applied range：

Thevertical fixture forming machine is the 1 kind of equipment specially used for hot pressing forming of soft-pack power lithium battery. It performs battery forming under heating and pressurization, adopts adjustable pressure control to optimize the forming effect and reduce the battery production cycle.

Date issued：

2024-12-24 03:05:11

Equipment Size：

L700mm* W600mm * H970mm

Weight：

800kg

Details

Specifications

Details

Studio size	/
air source	air source pressure ≥ 0.65MPa
power source	voltage AC 220±10%,
equipment weight	800kg
power	installed maximum power 3KW
equipment size	L700mm * W600mm * H970mm

heating mode	aluminum plate built-in heating wire
sorting indicator light	LED light display
contact fixture detection mode	use self-designed professional clip to suppress tab contact
volume separation mode	1. capacity; 2. time; 3. open circuit voltage
heat preservation measures	1. doors around the equipment, the top adopts super grade aluminum silicate fiber with a thickness of ≥ 30mm; 2. The glass adopts vacuum tempered glass with a vacuum gap of ≥ 10mm + super grade aluminum silicate fiber; 3. The door frame is sealed with through-core silicone rubber.
charge and discharge voltage range	charge 0-4.9V discharge 4.9-1.50V
temperature detection method	single chip microcomputer inspection module
current and voltage resolution	current 1mA;2. Voltage 1m
Equipment Weight	About 800KG
Voltage Accuracy	+ (0.1 RD +0.1 FS)
Temperature Control	MCU control
current and voltage test mode	constant current control board adopts four-wire measurement mode to improve measurement accuracy,
communication mode	Ethernet
temperature control accuracy	2 ℃, heating range: room temperature 90 ℃, heating time about 35 minutes (26 ℃-90 ℃)
end condition	1. time; 2. voltage; 3. Current; 4. Capacity, 5. Abnormal
business card paper	contact mode between splint and battery core is isolated by business card paper
constant pressure range	2000-4900mV
time accuracy and range	1. accuracy 1S;2. Range 1-3000min
Maximum number of work steps	32 work steps
Pressure control	Single chip microcomputer control can realize multi-time and multi-pressure section conversion control (factory 4-section pressure setting)
Current accuracy	+-(0.1 RD +0.1%FS)
Cylinder	250mm diameter 400MM stroke, 0.6MPa air pressure can generate 2.8T pressure
Temperature measurement method	Use T-scale thermocouple multi-core wire to detect plate layer temperature, it is displayed on the touch screen through the single chip microcomputer detection, one or two heating plates and one temperature probe
maximum cycle times	255 times
calibration period	90 days
protection function	1. safety protection: overcurrent, abnormal current, overvoltage, low voltage, overcapacity and reverse connection protection; 2. data protection: with data power-down protection function.
Number of connected devices per computer	Maximum 10
Data viewing method and export function	Comprehensive data; Grouped data; Single point curve data; Capacity statistics; EXCEL format data export
pressure feedback	pressure sensor feedback
inspection cycle	8S (whole cabinet)
press health display board	1. Easy maintenance; 2. Current and voltage correction; 3. Sorting quantity display
pressure setting range	100KG-3000KG
equipment failure rate	≤ 5 ‰, channel utilization rate (formation contact qualification rate) ≥ 98% (including failure caused by formation cabinet and fixture)
charging and discharging current range	5mA-6A
curve display	1. Voltage curve; 2. Current curve; 3. Capacity curve
work step content	1. constant current charging; 2. constant current and constant voltage charging; 3. shelving 4; constant current discharging; 5 cycles

& nbsp; & nbsp; & nbsp; The vertical fixture forming machine is the 1 kind of equipment specially used for hot pressing forming of soft-pack power lithium batteries. it uses adjustable pressure control to optimize the forming effect and reduce the battery production cycle by forming the batteries under heating and pressurizing.

1. provide the pressure required for the formation of polymer lithium ion battery;
2. press the surface of lithium battery to ensure reliable connection of lithium battery during formation;
3. heating and temperature control function; Mechanical pressure control function; End prompt and abnormal alarm function; Safety protection function;
4. battery charging function; Battery discharge function; battery sorting function; Data acquisition and link and communication with computer;
5. Voltage accuracy does not need to be calibrated
