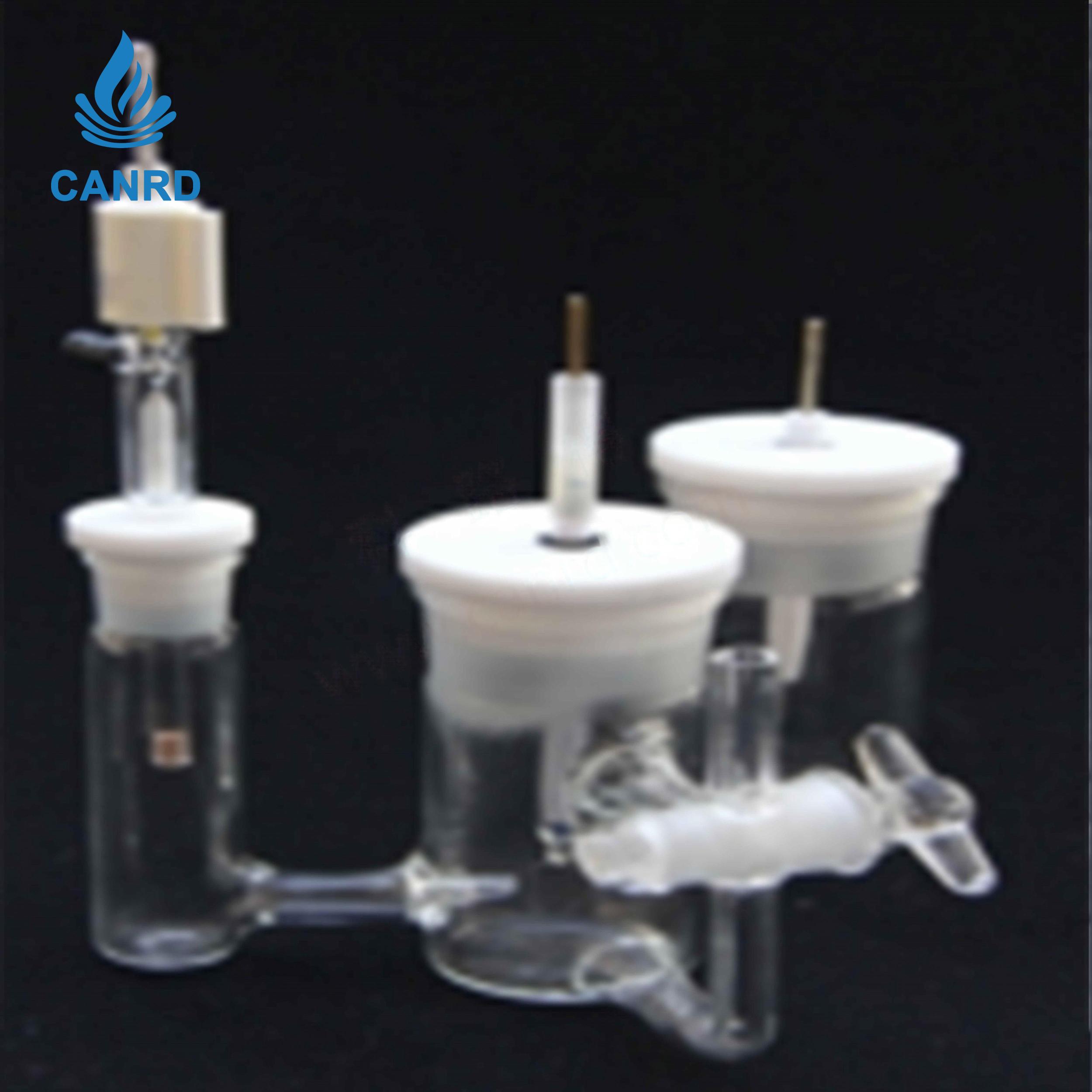

Three-port H-type Electrolytic Cell (Conventional / with Three-way)

Three-port H-type Electrolytic Cell (Conventional / with Three-way)

$120.82
Model：
CH2003（conventional）/CH2003-T(withthree-way)
item_No
Specifications
Price
MA-CM-AE-006506
150ml
$120.82

Details

This product is designed for electrochemical research applications, including experimental materials, energy materials, and analytical electrode studies. The three-port H-type electrolytic cell, available in conventional (CH2003) and three-way (CH2003-T) configurations, features glass sand core or golden-haired capillary isolation between compartments. Both models accommodate three 6 mm electrode holes by default, with customizable hole sizes and numbers upon request. The cell covers come in rubber stopper or PTFE cap variants, and the three chambers can have identical or different volumes ranging from 50 ml to 250 ml. The CH2003-T version incorporates a three-way valve with switches for controlled ventilation above or below the liquid level, enabling precise gas environment management. This cell is well-suited for three-electrode electrochemical measurements, battery material evaluation, and catalysis studies, offering flexibility through customizable volume and sealing options.

Note: The electrolytic cell cover has three 6mm electrode holes by default. The size and number of holes on the cover can be customized according to the electrode size purchased by the customer. Please inform us in advance. The electrode in the photo is for reference only.

CH2003 (conventional type)

Glass sand or golden-haired capillary isolated electrolytic cell;

The cover is divided into rubber plug and tetrafluoroethylene cap;

The volume of the three cells can be the same or different, and the volume can be customized.



CH2003-T (with three-way)

Without electrodes, the electrodes in the photo are for reference only. Ventilation under or above the liquid is controlled through switches;

Glass sand core or golden-haired capillary isolated electrolytic cell.
