Details

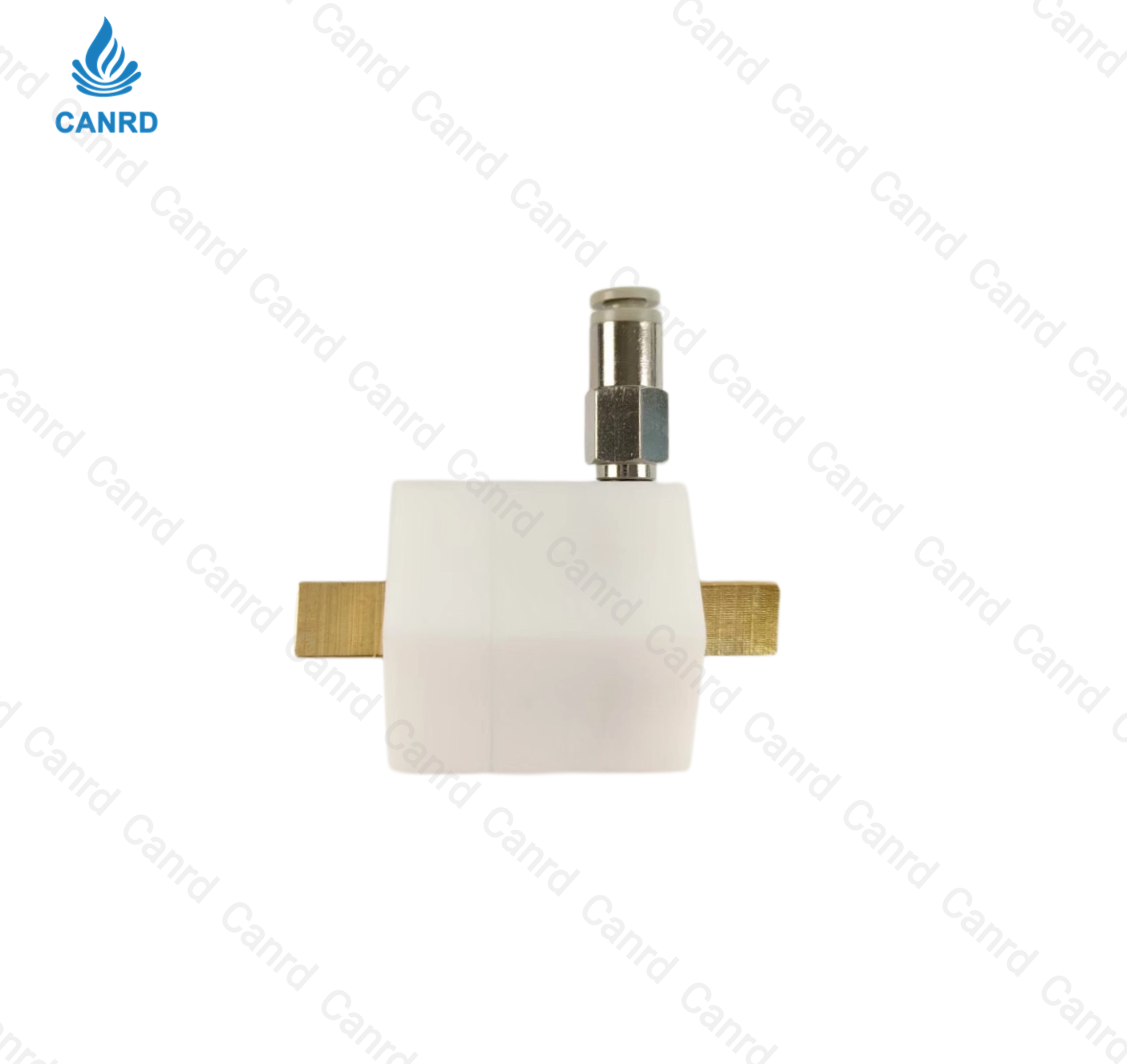

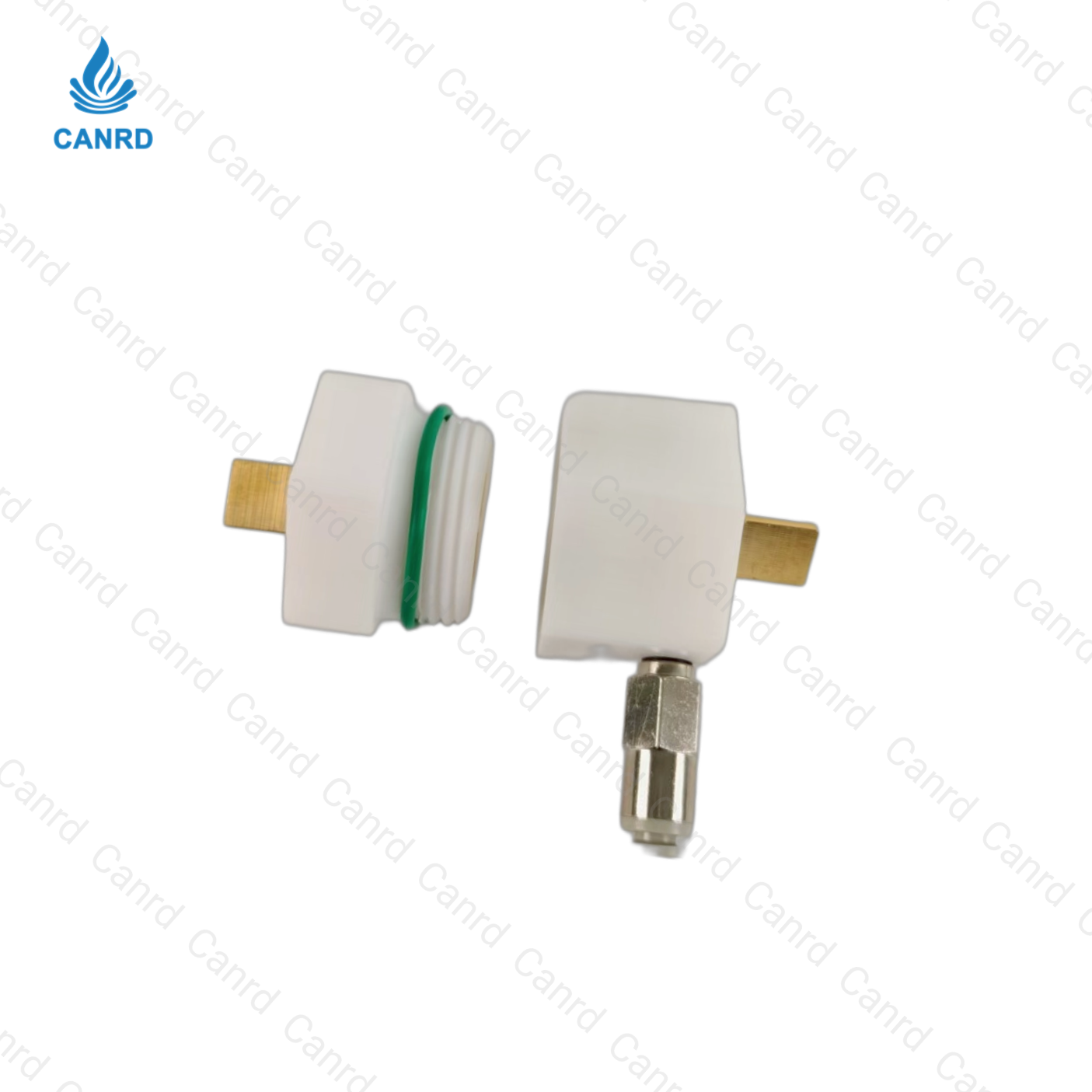

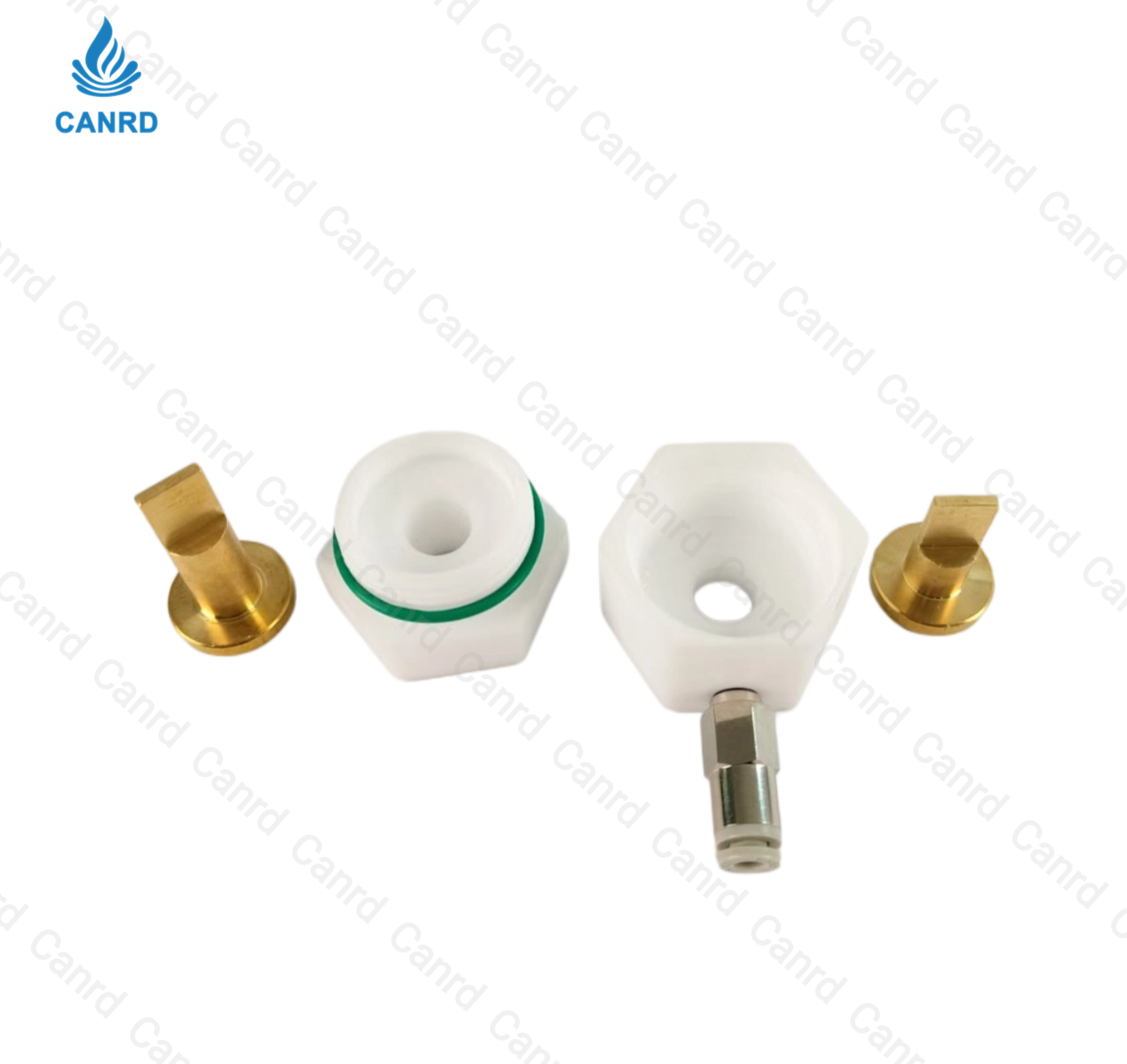

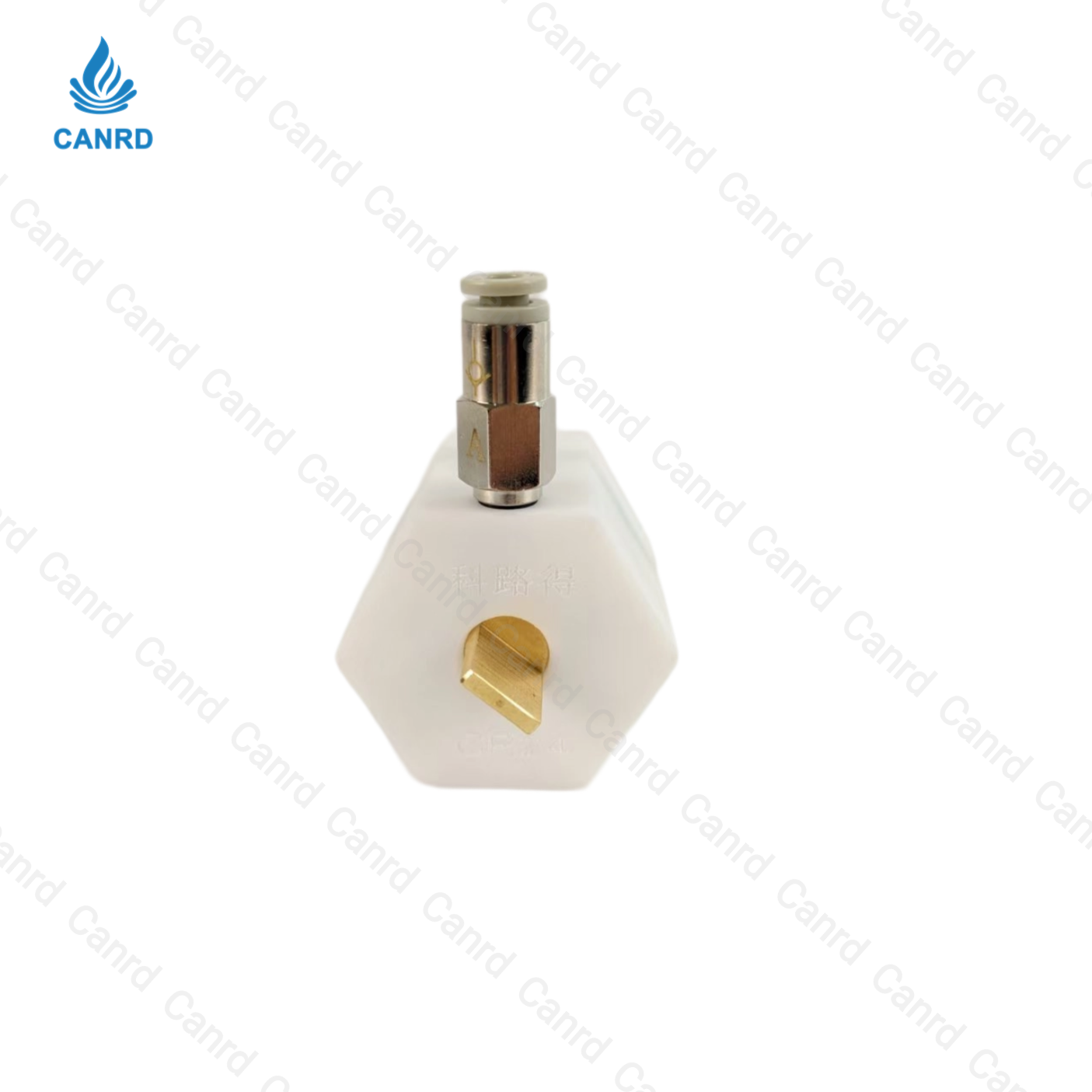

1、Function: Mainly used for coin cell testing. After placing the cell in the fixture, EIS, CV, and other electrochemical tests can be conducted more conveniently and stably.
2、Applicable Range: CR20 (thickness 1.5–3.5 mm), CR24 (thickness 2–4 mm); other sizes can be customized.
3、Material: Made of corrosion-resistant materials.
4、Sealing & Safety: Once locked, the chamber provides sealing. When the internal gas reaches a certain pressure, it can be released through a one-way valve to prevent high pressure from affecting the chamber.
5、Adjustability: The fixture can be rotated at different angles to accommodate cells of varying thickness.
