Details
Technical Parameters:

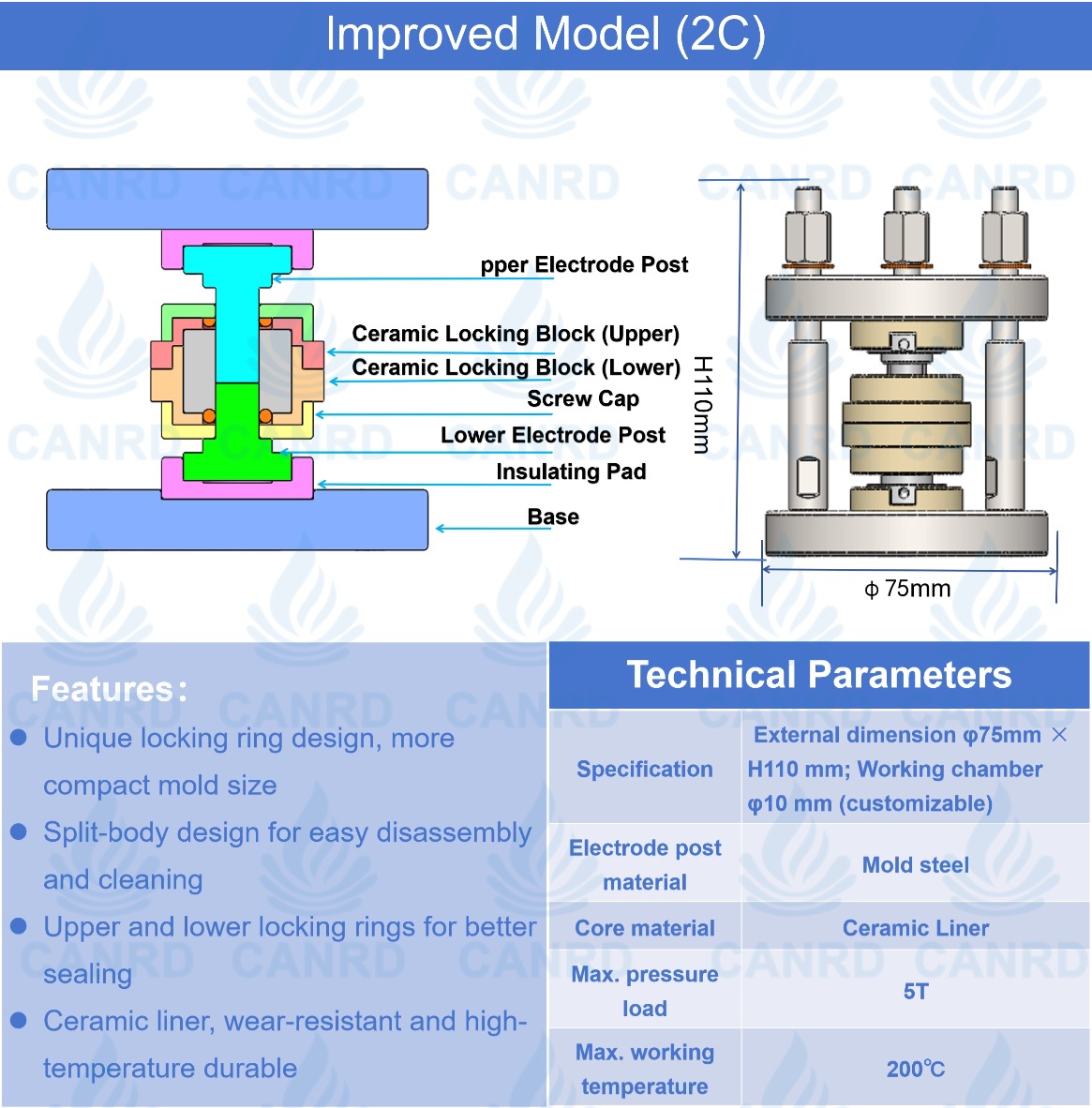

1、Specification: Overall size ⌀75 mm × H110 mm; chamber ⌀10 mm (customizable)
2、Electrode Post Material: Mold steel
3、Core Material: Ceramic liner
4、Application: New energy, lithium battery research, laboratory R&D
5、Maximum Pressure: 5 T
6、Maximum Working Temperature: 200 °C
7、Max Screw Head Diameter: 36 mm
8、Note: Electrode post diameter 10 mm; 0.8 T ≈ 100 MPa; standard maximum pressure 500 MPa (1000 MPa optional)
