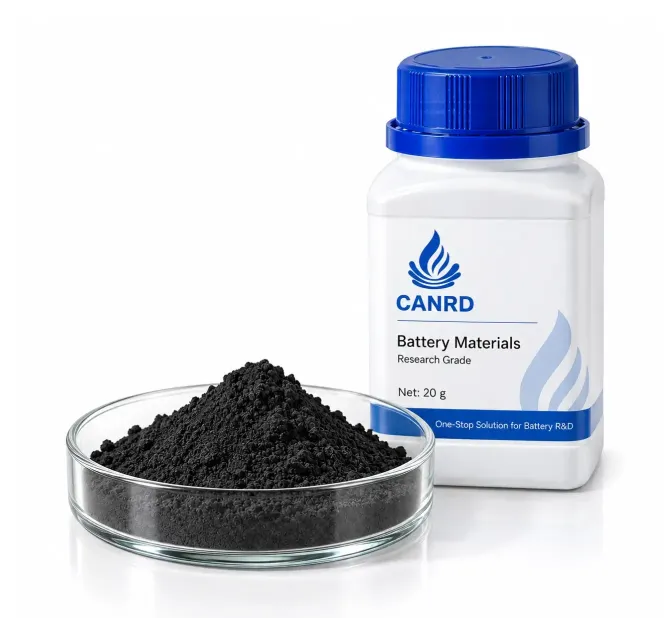

Solid Electrolyte Coated Single-Crystal Nickel-Cobalt-Manganese Oxide NCM613-B

Name: Solid Electrolyte Coated Single-Crystal Nickel-Cobalt-Manganese Oxide NCM613-B
Brand: Canrd
Price: 60.41 USD
Availability: InStock

$60.41

item_No:MA-EN-CA-010101

Name

Specifications

✓ Selected: Solid Electrolyte Coated Single-Crystal NCM613-B / 20g

Quantity

Quality Assurance

Factory Direct

Global Shipping

Details

Specifications

Lithium-ion battery cathode material, single-crystal LiNi₀.₆Co₀.₁Mn₀.₃O₂, coated with LATP, coating content ~0.5%

Physicochemical Properties

No.	Category	Test Item	Unit	Specification	Measured Result	Test Method or Instrument
1	Chemical Composition	Li	wt%	7.4±0.5	7.42	ICP
2		Ni	mol%	63.0±1.0	63.08
3		Co	mol%	10.0±1.0	10.01
4		Mn	mol%	27.0±1.0	26.09
5		Fe	ppm	≤10	6.2
6		Cu	ppm	≤10	2.0
7		Ca	ppm	≤100	50.3
8		Zn	ppm	≤10	5.2
9		Na	ppm	≤200	73.4
10		Si	ppm	≤150	62.0
11		S	ppm	≤900	673.0
12		Metal impurities	ppb	≤50	8.0
13		Li₂CO₃	ppm	≤2000	23.1
14		LiOH	ppm	≤1000	12.3
15	Physical Properties	Particle Size Distribution - D10	μm	1.7±1.0	1.72	Laser Particle Size Analyzer
16		Particle Size Distribution - D50	μm	3.2±1.0	3.21
17		Particle Size Distribution - D90	μm	＜8.0	5.87
18		BET	m²/g	0.9±0.2	0.92	Fully Automatic Specific Surface Area & Pore Size Analyzer
19		TD (Tap Density)	g/cm³	2.3±0.3	2.43	Tap Density Tester
20		pH	/	≤11.8	11.46	pH Meter
21	Electrochemical Performance	Initial Discharge Capacity	mAh/g	≥170.0	178.6	CR2032, 0.1/0.1C (4.3-3.0V)
22	Electrochemical Performance	Initial Coulombic Efficiency	%	≥85.0	87.7	CR2032, 0.1/0.1C (4.3-3.0V)

Half-cell Test

Item	Content
Humidity Control Requirement	Not required for electrode coating
Separator	2500
Electrolyte	1230C
Others	/

Material: vacuum-sealed storage.
Test electrolyte: ternary electrolyte (KLD-1230C).
Electrode baking: 105 °C, 4 h

Packaging requirement: Vacuum packaging with aluminum plastic film, and packed in plastic bag on the outer layer.
Storage requirement: Keep sealed and store in a cool and dry place.
