Sodium iron phosphate pyrophosphate (NFPP)
Sodium iron phosphate pyrophosphate (NFPP)
Sodium iron phosphate pyrophosphate (NFPP)
Sodium iron phosphate pyrophosphate (NFPP)

Sodium iron phosphate pyrophosphate (NFPP)

$15.10
Model:
MA-EN-CA-0010
item_No
Specifications
Price
MA-EN-CA-001001
20g
$15.10

Details

This product, a sodium iron phosphate pyrophosphate cathode material developed for sodium-ion battery research, belongs to the polyanion family and exhibits excellent cycling stability. Due to its strong hygroscopic nature, the material requires strict handling conditions, including vacuum-sealed storage and a production environment with a dew point below -30 °C. Electrode preparation involves baking at 105 °C for 4 hours, and electrochemical testing is typically performed using a dedicated sodium-ion electrolyte (e.g., KLD-NC06). Commonly employed in half-cell evaluations for cathode performance screening and fundamental studies, this material is well-suited for researchers investigating high-cycle-life polyanion cathodes. It is supplied in various quantities (20 g to 1 kg) and must be kept sealed in a cool, dry place to maintain its properties.

The material needs to be vacuum sealed for storage

The material is highly hygroscopic, so it is essential to control the dew point temperature to be ≤ -30 ℃ throughout the entire production process

The electrolyte used during testing is sodium ion electrolyte KLD-NC06

Baking conditions for electrode: Bake at 105 ℃ for 4 hours

Cathode electrode material for sodium ion batteries, polyanion type, material sensitive to moisture, excellent cycling performance



Physical and chemical properties:

Test Item Unit Specification Measured Result Test Method or Instrument
Chemical Composition Na wt% 14.0 ± 2.0 14.88 ICP
P wt% 20.0 ± 1.0 19.46
Fe wt% 25.0 ± 2.0 25.02
C wt% 2.0 ± 1.0 2.01
Cr ppm ≤10.0 3.6
Cu ppm ≤1.0 0.2
Ni ppm ≤3.0 1.6
Zn ppm ≤4.0 2.2
Physical Properties Particle Size Distribution D10 μm ≥0.25 0.375 Laser Particle Size Analyzer
Particle Size Distribution D50 μm 1.0–4.0 1.884
Particle Size Distribution D90 μm ≤8.0 5.746
BET m²/g ≥15 18.76 Automatic Specific Surface Area and Porosity Analyzer
Tap Density (TD) g/cm³ ≤2.5 1.899 Tap Density Meter
pH / ≤11.0 10.35 pH Meter
Moisture Content ppm ≤1200 794.1 Moisture Analyzer
Electrochemical Performance Initial Discharge Capacity mAh/g ≥80.0 83.1 CR2032, 0.1/0.1C (4.0–2.0 V)
Initial Efficiency % ≥93.6 108.5

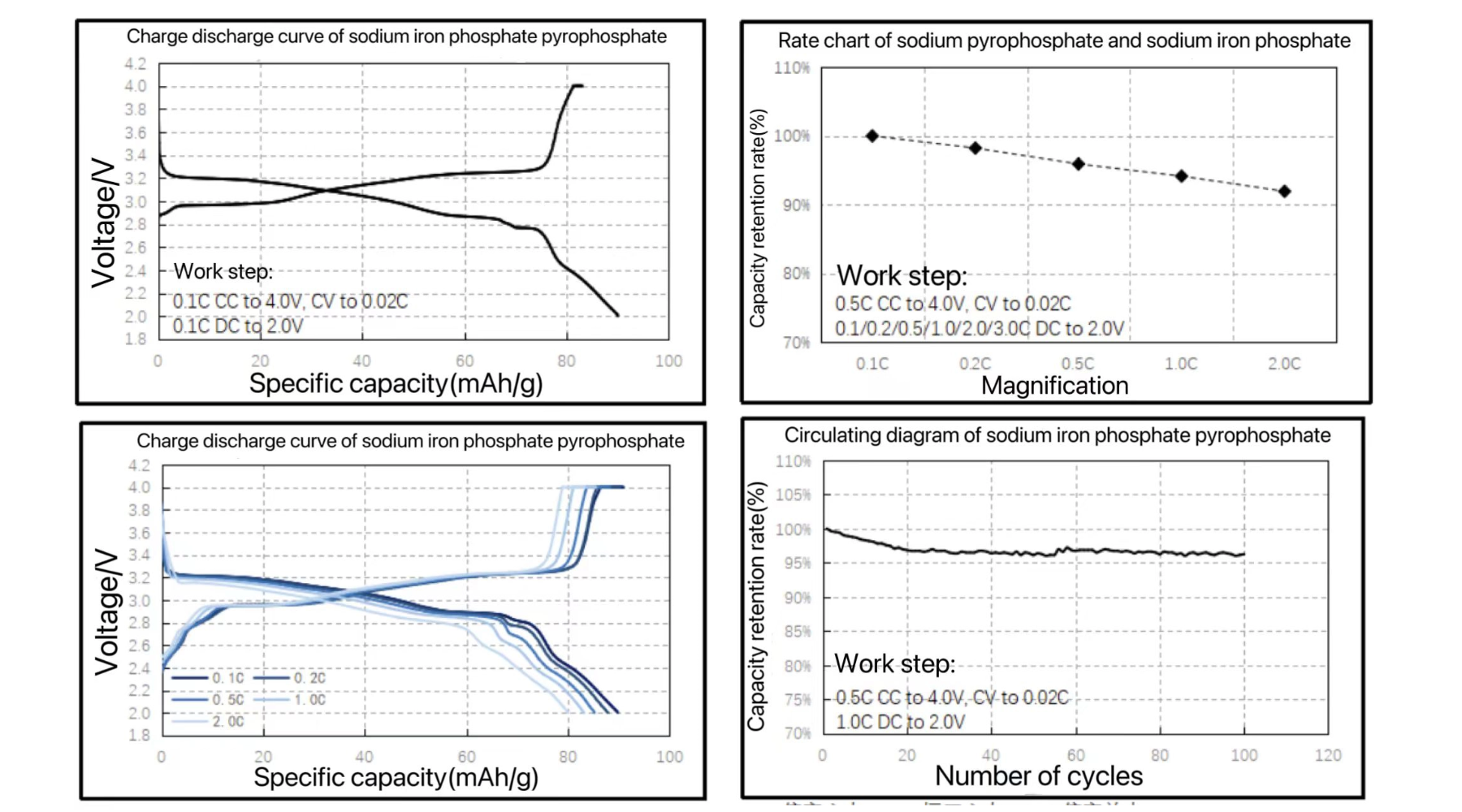

Half-cell testing:

CC-Constant current charging; CV-Constant voltage charging;DC-Constant current discharge

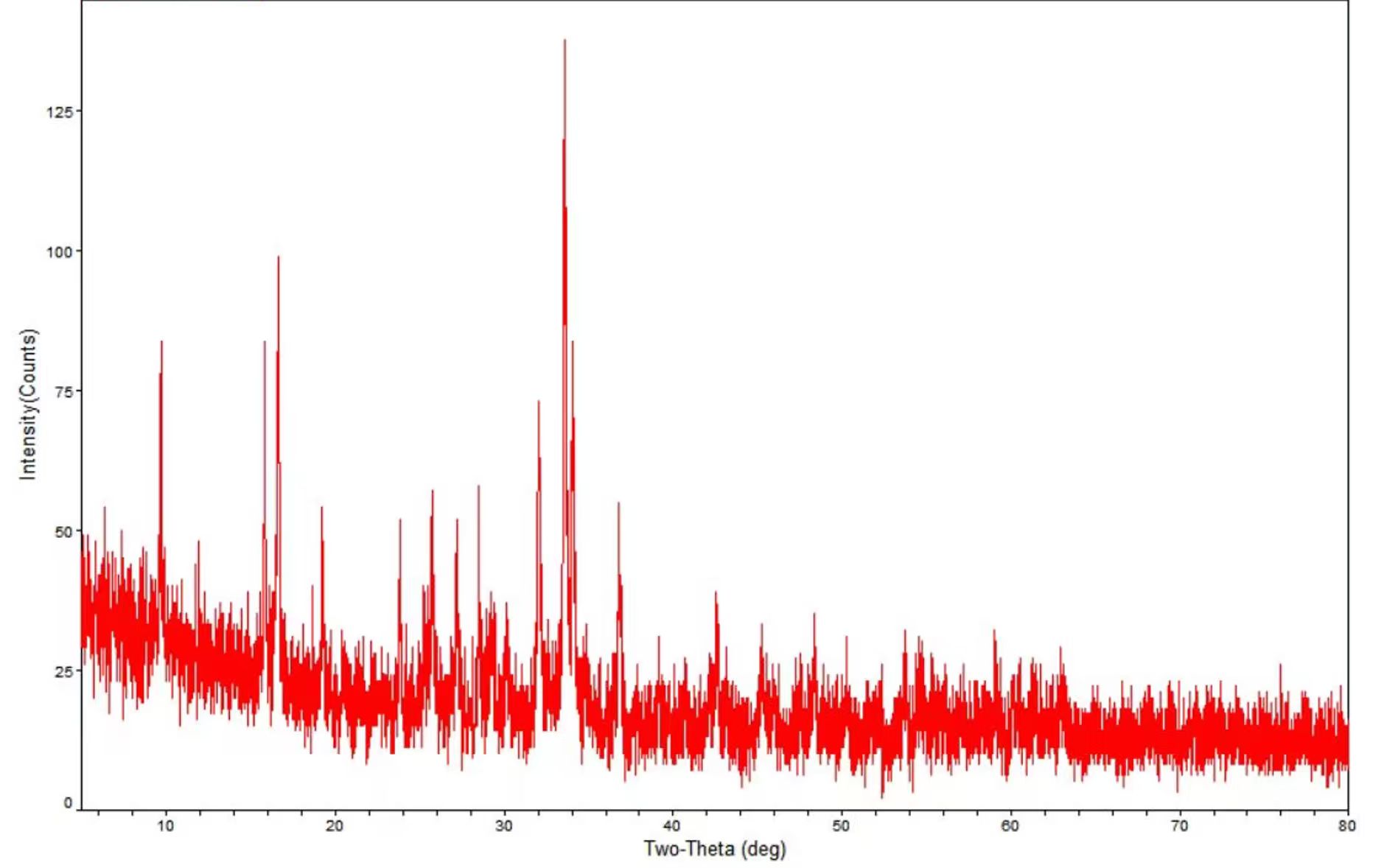

XRD:





Packaging requirements: Vacuum packaging with aluminum-plastic film, outer layer packaged in plastic bags.



Storage requirements: Sealed, stored in a cool and dry place.
