Product Description & Recommendations

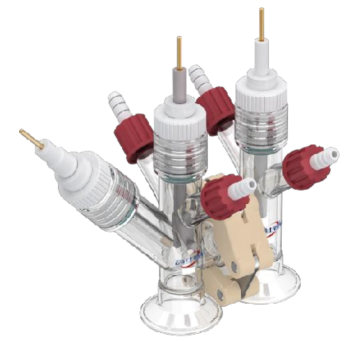

- Cell body material: Borosilicate glass
- Electrodes can be configured as required, and all matching electrodes must be of extended type.
- The single-layer cell body adopts an overhead layer design to effectively eliminate solution dead volume.
- This electrolytic cell is widely applied to three-electrode systems, with a single-cell volume of 10 mL.
- Two sealing configurations are available: relatively sealed and fully hermetically sealed. The cathode compartment and anode compartment are separated by an ion-exchange membrane. The two compartments are hermetically connected via a chain structure for convenient membrane replacement. The reference electrode and working electrode are placed in the same compartment to effectively reduce IR drop.
- The glass sealing section features an internal thread design. Tightening the PTFE fitting compresses the sealing gasket to achieve reliable sealing performance.
- The electrode assembly achieves sealing by compressing an O-ring with sealing screws.
- Sampling ports can be installed on the cell body upon request.
