Silicon oxide (1400) - A
Silicon oxide (1400) - A
Silicon oxide (1400) - A

Silicon oxide (1400) - A

$120.82
Model:
MA-EN-AN-0037
item_No
Specifications
Price
MA-EN-AN-003701
20g
$120.82

Details

This pre-lithiated silicon oxide material, designated Silicon oxide (1400) - A, is developed as a high-capacity anode material for lithium-ion batteries. It features a sub-micron particle size distribution (D50 around 8 μm) with a low BET specific surface area of ≤0.9 m²/g, facilitating good processability and electrode coating uniformity. Electrochemical testing in half cells using NCM electrolyte demonstrates a first reversible capacity exceeding 1400 mAh/g at 1.5 V cutoff, with a first coulombic efficiency of at least 88%. The material is free from a distinct silicon peak and shows low trace metal and magnetic substance contamination, supporting stable cycling. It is typically applied in advanced battery research requiring high energy density anodes. The product is vacuum-sealed in aluminum-plastic film and should be stored in a cool, dry environment to maintain its pre-lithiated state.





Lithium ion anode electrode material, pre lithiated silicon oxide, no silicon peak, with the characteristics of high capacity and high first effect

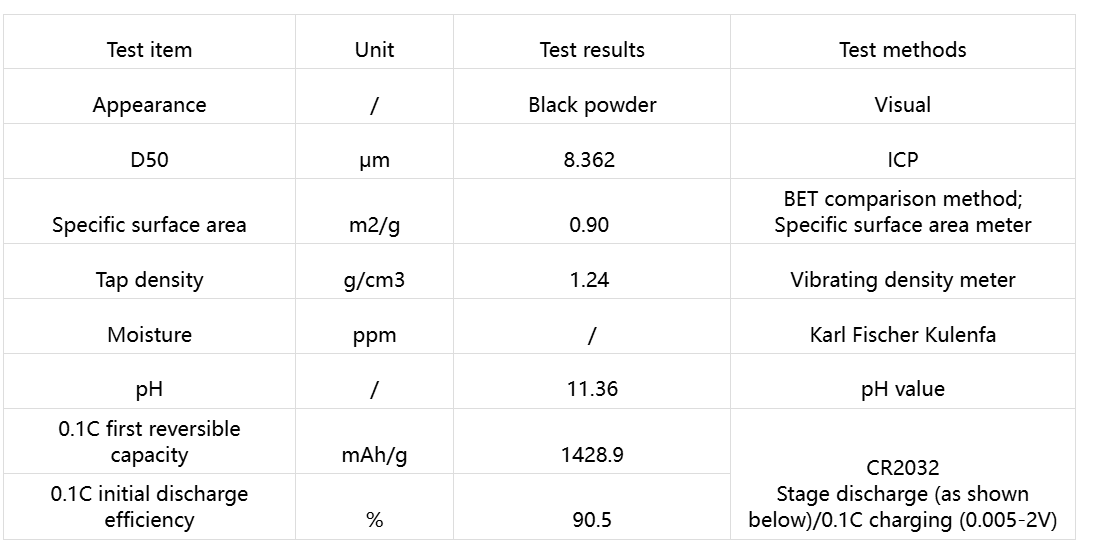

Physical and chemical properties

No. Test Item   Unit Specification Test Result
1 Trace Metal Content Fe (Iron) ppm ≤10.0 6.23
2   Cu (Copper) ppm ≤3.0 1.02
4 Magnetic Substances Fe+Co+Cr+Ni+Zn ppm ≤0.5 0.38
5 Physical Properties

(Particle Size Distribution)
D10 μm 5.0±1.0 4.62
6   D50 μm 8.0±2.0 8.12
7   D90 μm ≤15.0 13.26
8 Physical Properties BET Specific Surface Area m²/g ≤0.9 0.86
9   Tap Density (TD) g/cm³ ≥1.0 1.12
11 Electrochemical Performance 1.5V First Reversible Capacity mAh/g ≥1400.0 1486.5
12   1.5V First Coulombic Efficiency % ≥88.0 88.6
13   0.8V First Reversible Capacity mAh/g ≥1200.0 1365.2
14   0.8V First Coulombic Efficiency % ≥80.0 81.3

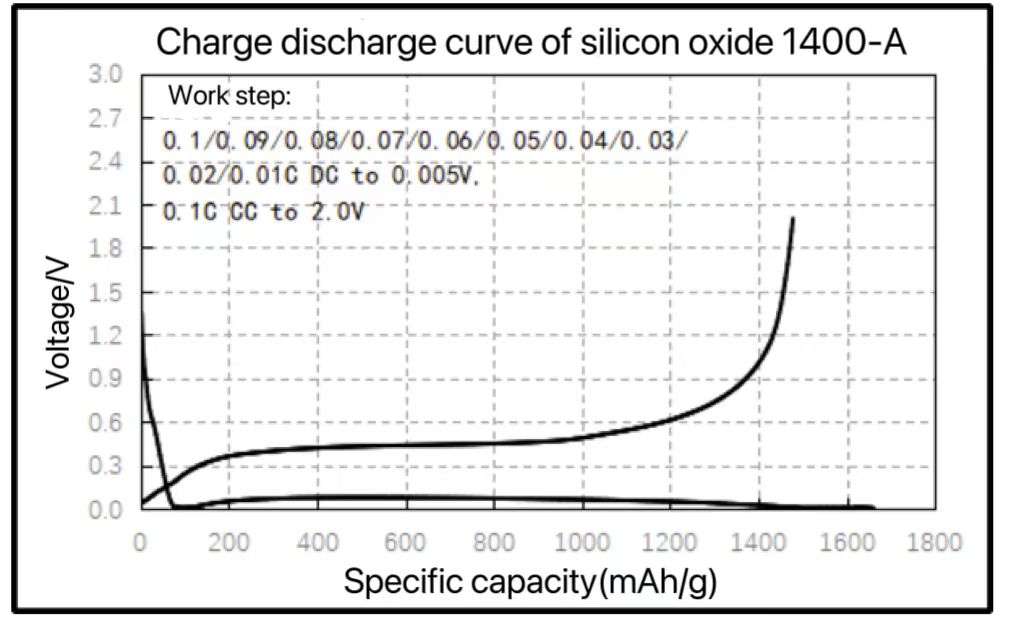

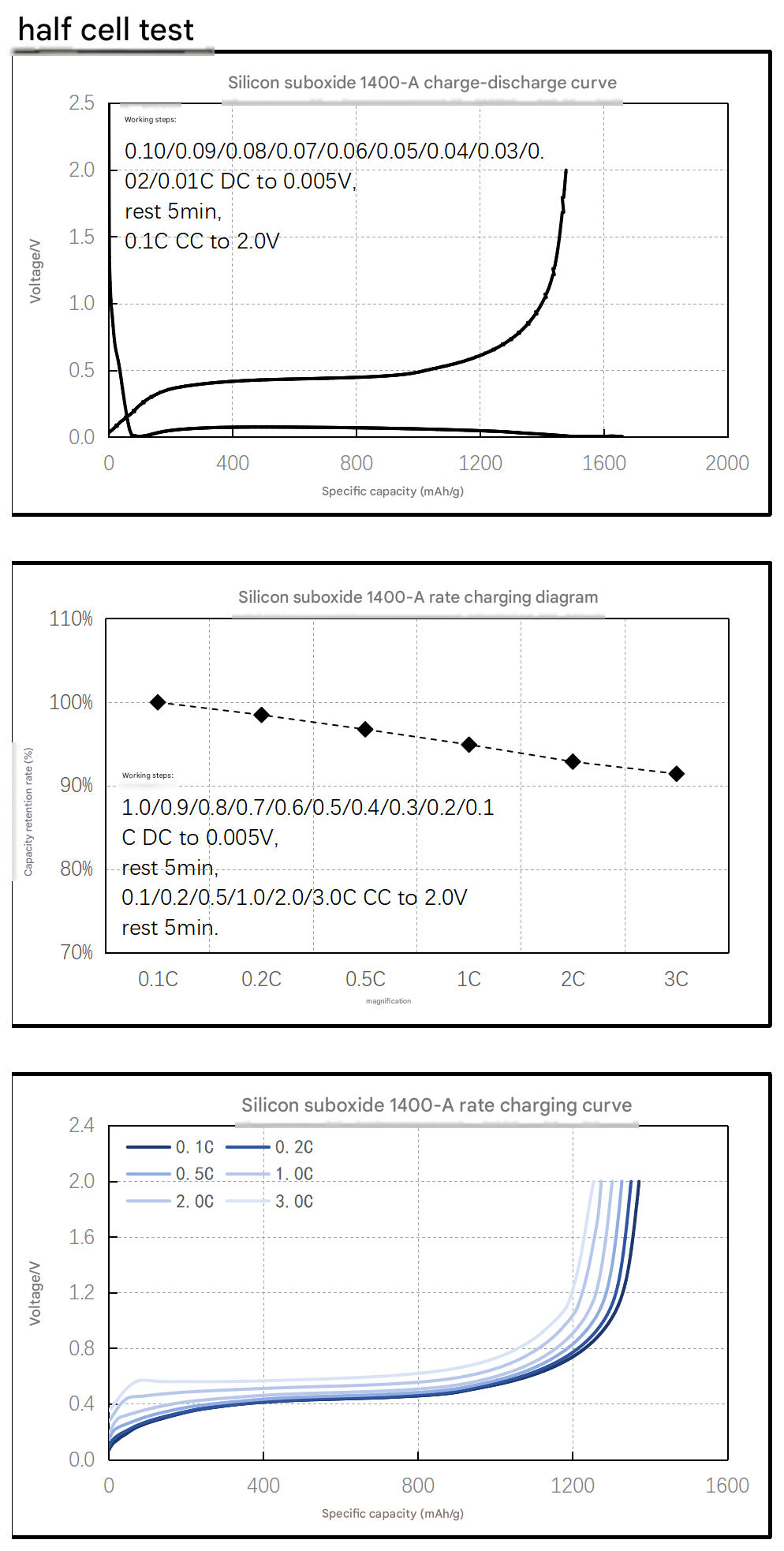

Half battery test

CC constant current charging; DC constant current discharge

Note: The material is pre lithiated material

Packaging Requirements: Vacuum-sealed in aluminum-plastic film, with an outer plastic bag enclosure.

Storage Requirements: Keep sealed and store in a cool, dry place.

The material needs to be sealed and stored.

The electrolyte used during testing is NCM electrolyte (KLD-1230C).

Baking conditions for electrode: Bake at 85 ℃ for 4 hours.
