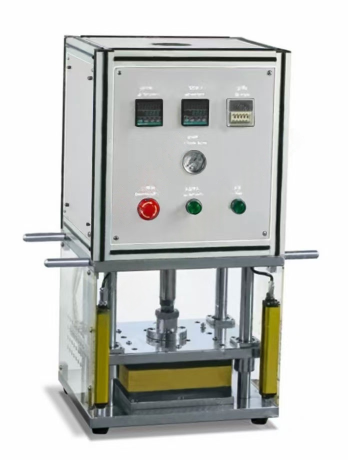

Semi-automatic pole piece die cutting machine

Semi-automatic pole piece die cutting machine

Model：
CAN-DCM50-0280DS
Applied range：
Pneumaticdie-cutting machine is the 1 type of positive and negative electrode die-cutting equipment used in lithium ion laminated battery. The equipment through the pressurized cylinder to achieve the sheet or roll material pole piece of the single die process. According to customer requirements to provide a variety of shapes of die, so as to achieve different sizes of battery pole piece die.
Date issued：
2024-12-24 02:51:55
Equipment Size：
L590mm* W415mm * H900mm
Weight：
190kg

Details

This semi-automatic pole piece die cutting machine is designed for precise electrode shaping in advanced battery manufacturing. Engineered by Canrd (model CAN-DCM50-0280DS), it accommodates diverse production environments, including prismatic aluminum case, cylindrical, pouch cell, solid-state, metal lithium, and zinc‑ion battery lines. The equipment delivers consistent cutting accuracy for electrode sheets, supporting both dry electrode preparation and conventional coating processes. Its semi-automatic operation balances throughput with operator control, making it suitable for research-scale development and small-to-medium production runs. Common applications include electrode patterning for next-generation battery systems, such as solid-state and lithium-metal configurations, where dimensional stability is critical. The machine’s robust construction ensures reliable performance under typical laboratory or pilot-line conditions. By integrating into existing film coating or assembly workflows, it facilitates efficient prototyping and low-volume manufacturing without compromising material integrity.
Equipment Size
L590mm * W415mm * H900mm
Power
100W
Power Supply
AC220V/50HZ
Equipment Weight
190kg
die cutting size
280*180(mm)
Die cutting stroke
150mm
compressed air
0.3MPa ~ 0.6MPa
pole piece burr after punching
with the knife die, the minimum vertical burr can reach 15μm and the minimum horizontal burr can reach 20μm
punching accuracy
0.1mm
booster cylinder
about 3T

Pneumatic die-cutting machine is the 1 positive and negative electrode die-cutting equipment used in lithium-ion laminated batteries. The equipment through the pressurized cylinder to achieve the sheet or roll material pole piece of the single die process. According to customer requirements to provide a variety of shapes of die


1. Pressurized cylinder drive, adjustable punching force and punching speed;

2. It has upper and lower precision pressing plates and high-performance tools to ensure die-cutting accuracy;

3. Die-cutting products have small burrs and less powder falling;

4. Two-handed start, with safety light curtain;

5. PLC man-machine interface control;

6. The discharging area is equipped with a roller group to reduce the labor burden.

7. Fixed height limit and adjustable limit two ways to adjust the parallelism of the double template.
