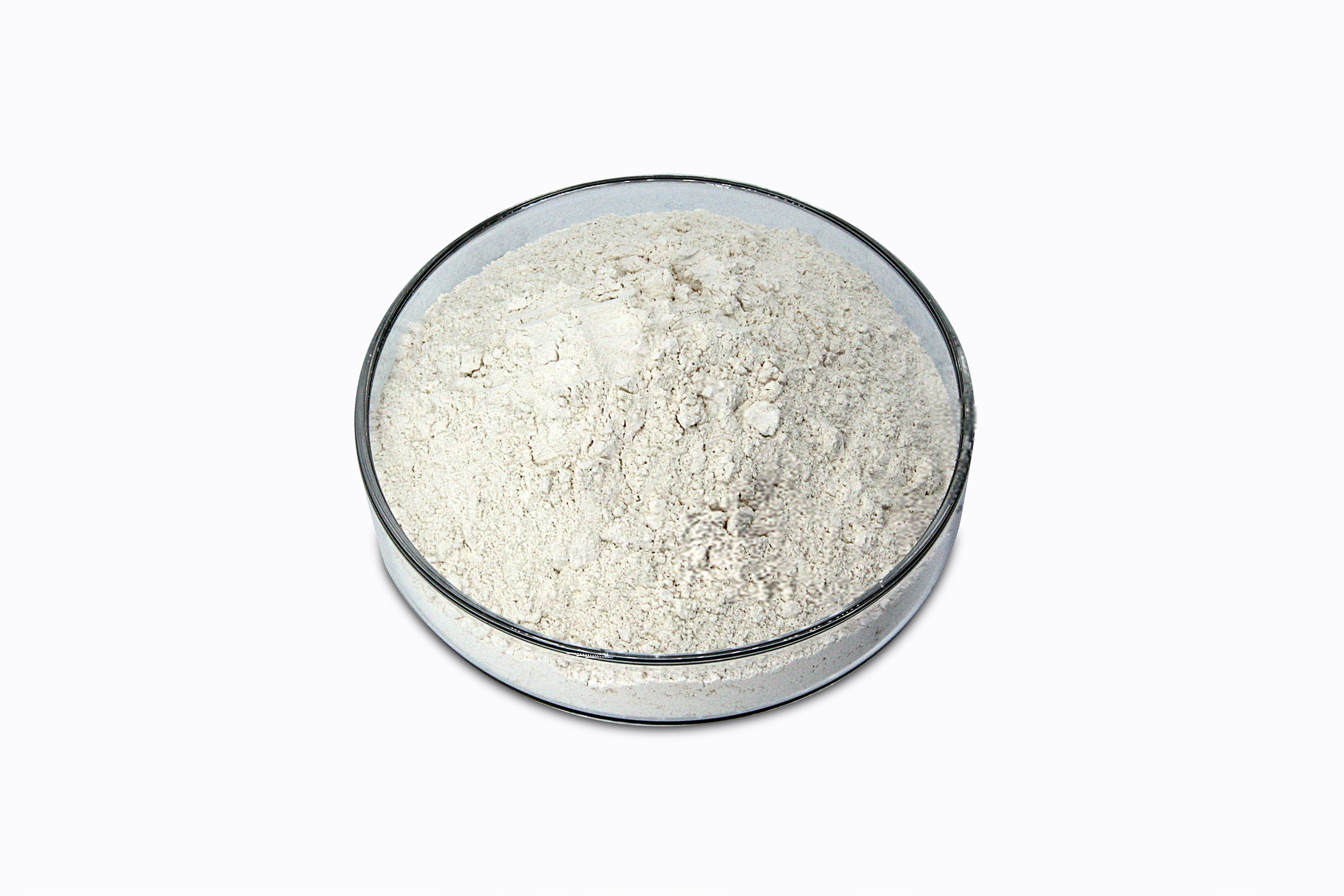

Samarium Doped Cerium Oxide SDC20

$120.82

Chemicalformula：

Sm0.2Ce0.8O1.9

Model：

FM-EM-SO-0011

Brand：

canrd

Classification：

solidoxide fuel cell SOFC, energy materials, experimental materials, fuel cells, all

item_No

Specifications

Price

FM-EM-SO-001101

50g

$120.82

Details

Overview

Details

This product is designed for advanced energy materials research, particularly in solid oxide fuel cells (SOFCs) and related electrochemical systems. Samarium-doped cerium oxide SDC20 (Sm0.2Ce0.8O1.9) features a fluorite-type crystal structure where Sm³⁺ substitution introduces oxygen vacancies, enhancing oxygen ion conductivity. It exhibits high thermal stability, mechanical hardness, and resistance to common acids and alkalis, making it suitable for high-temperature ceramic components, oxygen sensors, and catalyst supports. Technical characterization confirms a surface area of 54.1 m²/g and a particle size below 50 nm (45 nm measured), with low impurity levels (each below 100 ppm) and a loss on ignition of 0.3%. This material provides reliable performance for solid-state ion conduction and catalytic applications in energy conversion devices.

samarium doped cerium oxide SDC20, I .e. S'm'Ce. O', is doped with cerium oxide (CeO₂) as the base and samarium (Sm) at a mole fraction of 20%. In terms of crystal structure, Sm³ enters the crystal lattice of CeO₂ to form a fluorite-type structure. Due to the difference in ionic radii between Sm³ and Ce ³, oxygen vacancies will be introduced into the crystal lattice, which has an important impact on its performance.
[characteristics] high oxygen ion conductivity, high thermal stability, high hardness and wear resistance, not easy to react with common acid and alkali.
[use] solid oxide fuel cell (SOFC), oxygen sensor field, high temperature ceramic field, catalytic field (as catalyst carrier).

Product Name	Samarium-doped Cerium Oxide SDC20		Product Code	FM-EM-SO-00011
Chemical Formula	Sm0.2Ce0.8O1.9
Test Item	Unit	Specification	Test Method	Test Result
Main Components
CeO2	%	79.54~80.04	XRF, ARL Perform'X 4200, ThermoFisher	79.87
Sm2O3	%	19.96~20.46	XRF, ARL Perform'X 4200, ThermoFisher	20.13
Impurity Components
Al2O3	ppm	max. 100	Optima 2000DC, PE	19
Fe2O3	ppm	max. 100		10
TiO2	ppm	max. 100		29
SiO2	ppm	max. 100		21
CaO	ppm	max. 100		33
CuO	ppm	max. 100		5
BaO	ppm	max. 100	18
ZnO	ppm	max. 100	7
La2O3	ppm	max. 100	3
Loss on Ignition	%	≤ 0.5	0.3
Surface Area	m²/g	≥ 50	54.1
Particle Size	nm	< 50	45
