Resin Porous Carbon Special for CVD Si-C Anode

Resin Porous Carbon Special for CVD Si-C Anode

$30.21
item_NoSpecificationsPrice
MA-EN-AN-00460110g$30.21
MA-EN-AN-00460220g$45.31
MA-EN-AN-00460350g$90.61
MA-EN-AN-004604100g$151.02
MA-EN-AN-004605500g$302.04
MA-EN-AN-0046061000g$453.06
✓ Selected: MA-EN-AN-004601 / 10g
Quality Assurance
Factory Direct
Global Shipping

Details

Physical Properties:

Test Item Unit Specification Range Test Result

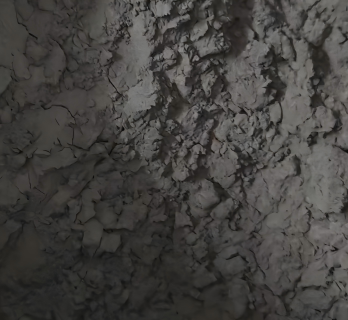

Appearance / Black powder Visual inspection
Particle Size Dn10 μm ≥3.0 3.6
Dv01 μm ≥3.0 3.5
Dv10 μm 5.0 ± 0.5 4.9
Dv50 μm 8.0 ± 0.5 8.1
Dv90 μm ≤18.0 13
BET Specific Surface Area m²/g ≥1900 1923
Pore Volume cm³/g 0.90 ± 0.03 0.87
Micropore Fraction % >85 91.3
Single-Point Average Pore Diameter nm <2.0 1.72
Tap Density g/cm³ ≥0.30 0.43
Ash Content % ≤0.3 0.02
Moisture Content % ≤1.0 0.413
pH / 7.5 ± 1.5 7.2
Impurity Content Fe ppm ≤100 15.58
Co ppm ≤20 0.35
Cr ppm ≤10 0.71
Ni ppm ≤50 1.8
Cu ppm ≤10 0.35
Na ppm ≤150 8.66
Ca ppm ≤100 21.71
Zn ppm ≤25 3.35
Magnetic Substances ppm ≤1.0 0.23

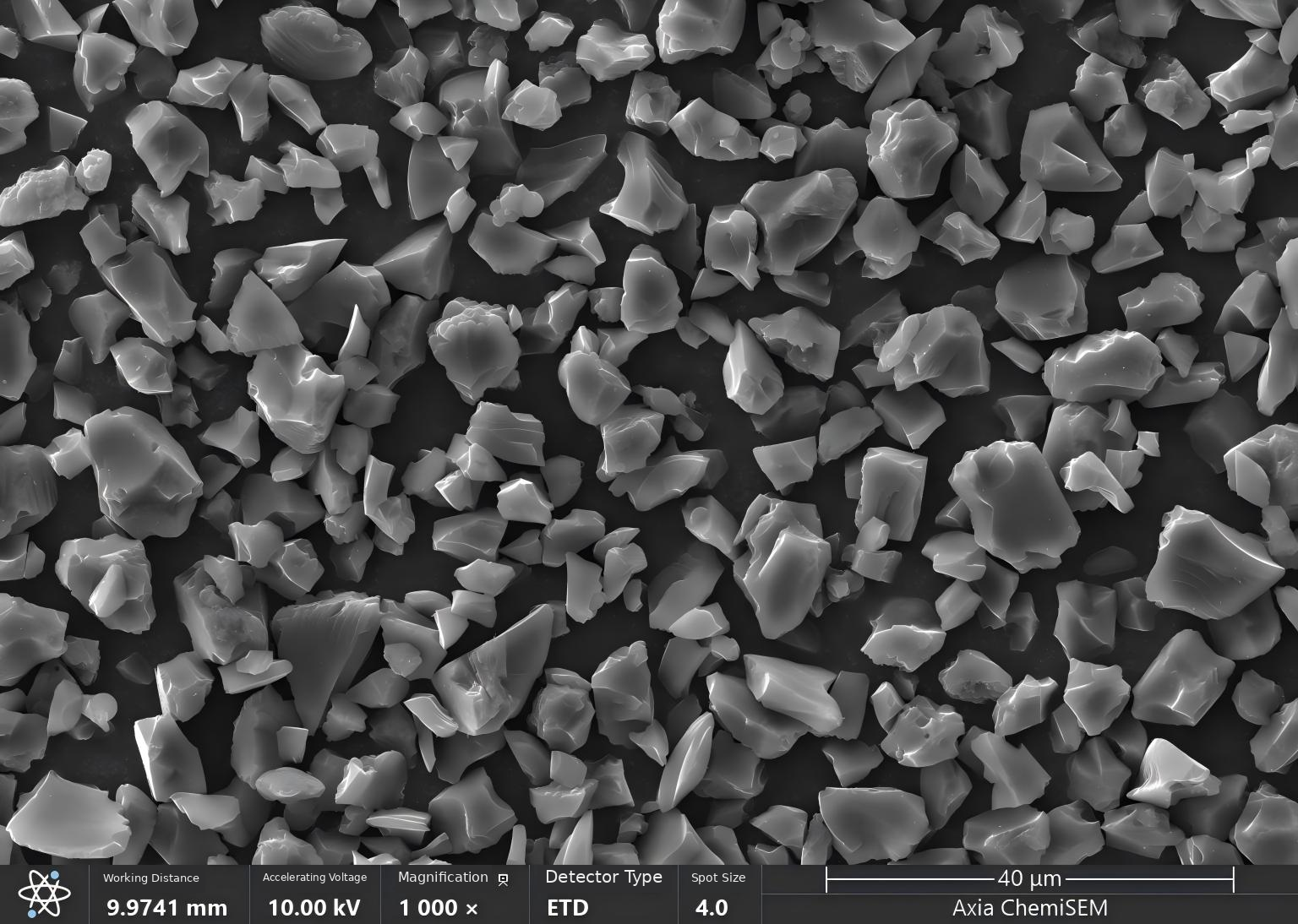

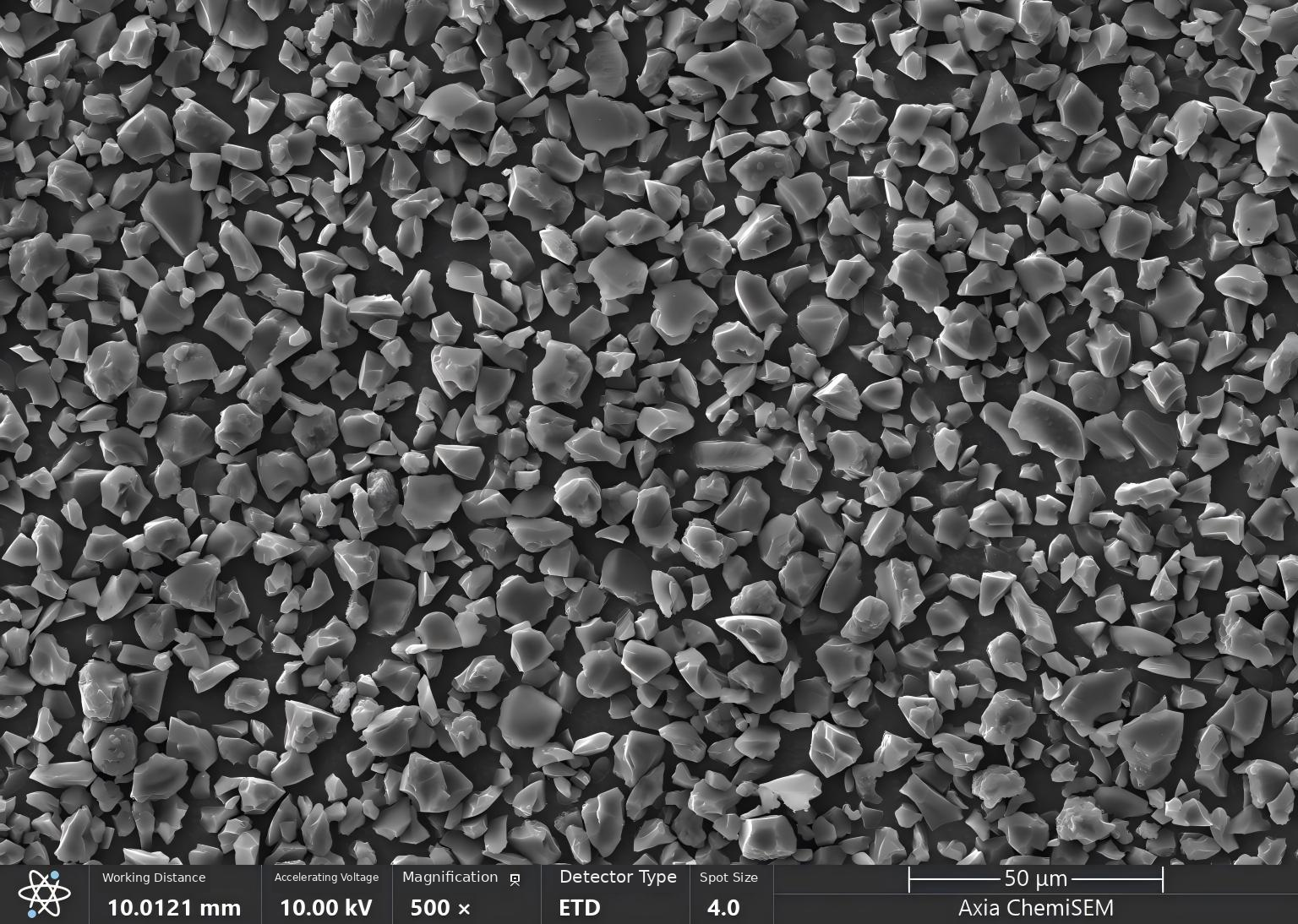

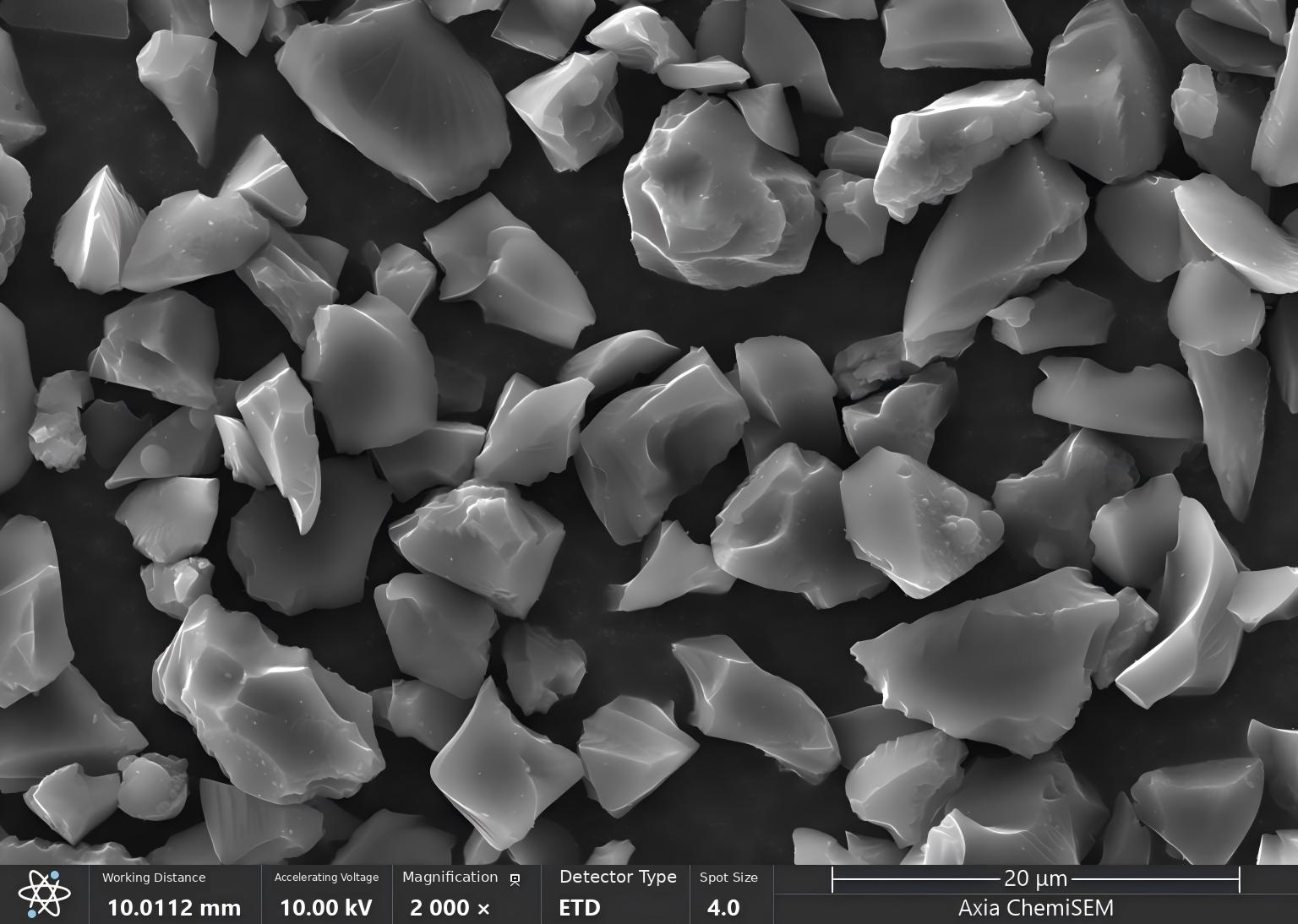

SEM:





Packaging, Transportation, and Storage:

Store the product in a clean, cool, and dry environment at ambient temperature (temperature ≤45 °C; relative humidity ≤90% RH).



Product Instructions and Recommendations:

When kept in sealed packaging and stored in a cool, dry place, the shelf life is six months.
