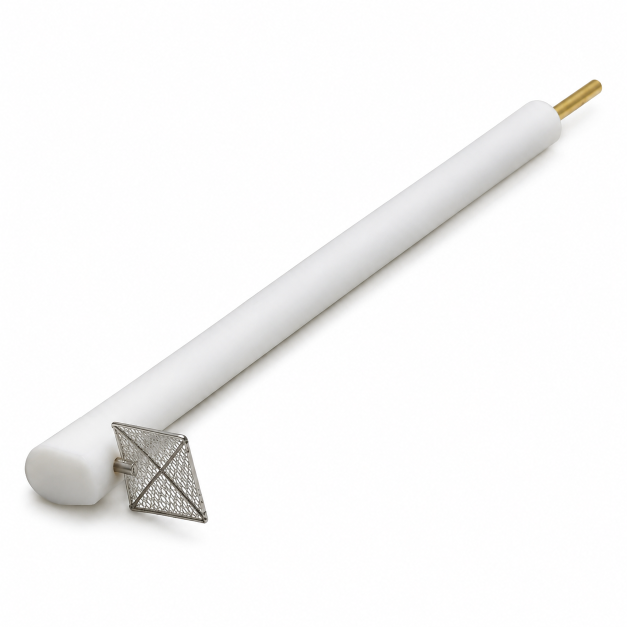

Platinum Mesh Electrode

Name: Platinum Mesh Electrode
Brand: Canrd
Price: 246.77 USD
Availability: InStock

$246.77

item_NoSpecificationsPrice

MA-CM-AE-00190110*10 1pc$246.77

MA-CM-AE-00190210*15 1pc$286.64

MA-CM-AE-001903Φ20 1pc$379.66

MA-CM-AE-00190410*20 1pc$326.21

MA-CM-AE-00190515*15 1pc$337.38

MA-CM-AE-00190630*30 1pc$730.03

MA-CM-AE-00190720*20 1pc$443.70

✓ Selected: MA-CM-AE-001901 / 10*10 1pc

Quantity

Quality Assurance

Factory Direct

Global Shipping

Details

Overview

Details

This product is designed for researchers in electrochemistry, energy materials, and analytical applications, offering a high-purity platinum mesh electrode with a PTFE outer jacket for reliable performance in corrosive or high-temperature environments. The platinum mesh, with a purity exceeding 99.95% and a 52-mesh configuration, ensures excellent conductivity and catalytic activity, making it suitable for use as a working or counter electrode in electrochemical cells, battery research, and sensor development. Available in both rectangular and circular sizes, including 10×10 mm and 20×20 mm, the electrode can be customized to meet specific experimental requirements. The electrode features a 20 mm terminal and a 60 mm jacket, with a total length of 80 mm, while alternative models offer a gold-plated terminal for oxidation resistance. These characteristics support reproducible measurements in fundamental studies and applied energy research.

Tianjin Aida:

Rectangular, circular electrode sizes can be customized according to customer requirements.

Electrode material: Platinum

Outer jacket material: PTFE

Platinum purity: above 99.95%

Platinum mesh: 52 mesh

Terminal length: 20mm

Outer jacket length: 60mm

Total electrode length: 80mm

Gaosirui platinum mesh electrode

Platinum mesh sizes: 10*10mm, 10*15mm, 10*20mm, 15*15mm, 20*20mm, 25*25mm

Platinum mesh purity: 99.99%

Platinum mesh origin: USA, Japan

Outer jacket material: PTFE

Outer jacket diameter: 6mm

Outer jacket length: 60mm

Total electrode length: 75mm

Platinum column length: 10mm, 15mm, with 5mm embedded in PTFE, can be used as a φ1mm platinum plate electrode after grinding when it is no longer usable due to external wear.

The tail of the electrode is a gold-plated wire column that will never oxidize.
