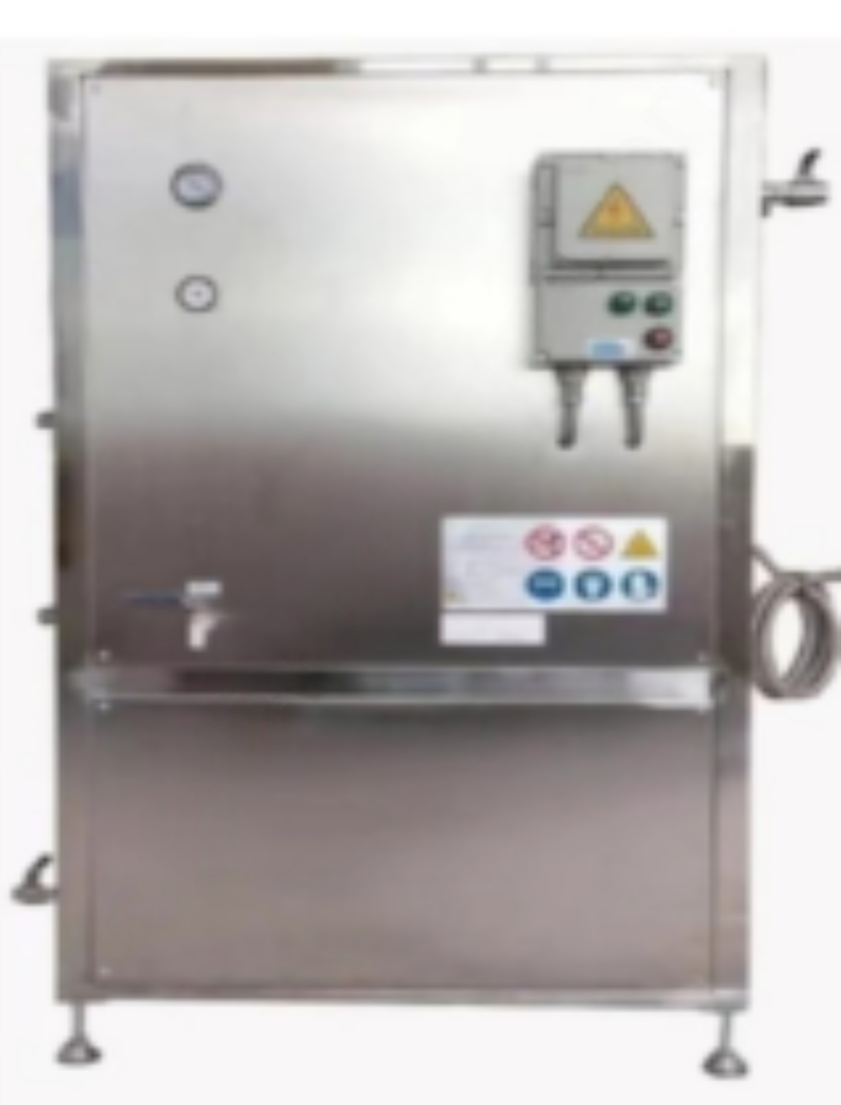

NMP recovery system (3000 horizontal type)

Model：

CAN-REC16-3000ST

Applied range：

Itis suitable for scientific research units to recycle NMP solvent in coating process and implement environmental protection emission standard: GB 30484-2013 "Emission Standard for Pollutants from Battery Industry" non-methane total diameter content standard.

Date issued：

2024-12-19 00:58:53

Equipment Size：

L1800mm* 900mm * H1200mm

Weight：

600kg

Details

Specifications

Details

Power

3.7kW

spray tank volume	2 m
Pure water evaporation capacity	18L/h
material	304 stainless steel
solvent storage capacity	180L
recovery rate	≥ 99%
recovery concentration	≥ 80%
tail gas emission	≤ 30 mg/m
treated air volume	3000 m/h

it is suitable for scientific research units to recycle NMP solvent in coating process and implement environmental protection emission standard: GB 30484-2013 "emission standard for pollutants from battery industry" non-methane total diameter content standard.

1. The equipment is fully automated to maintain stable NMP concentration and TVOCs content in exhaust air;

2. The equipment adopts two-stage spray adsorption design to ensure the stability and safety of the system operation, and the exhaust gas discharged meets the national and local environmental protection requirements;

3. Equipment composition: recovery tower, pump group, fan, ventilation pipe, NMP liquid storage tank and electric control system;

4. The recovery unit has high recovery rate, low operating cost, beautiful appearance, small footprint, superior performance and simple operation, and can be widely used in the coating link of lithium battery production line.
