Lithium-ion Battery Cathode Electrode Sheet (NCM811 Lithium Nickel Cobalt Manganese Oxide SY34)

Name: Lithium-ion Battery Cathode Electrode Sheet (NCM811 Lithium Nickel Cobalt Manganese Oxide SY34)
Brand: Canrd
Price: 75.51 USD
Availability: InStock

$75.51

Model：

SY34XX

item_No

Specifications

Price

SY34XX

Single side (5 sheets/pack) (Uncalendered)

$75.51

Details

Overview

Specifications

Details

This NCM811 electrode sheet (SY34XX) is developed for advanced lithium-ion battery research, featuring a single-crystal nickel-cobalt-manganese (NCM811) active material with a high active material ratio of 94.5%. The electrode, coated on a 12 µm aluminum foil current collector, delivers a specific capacity of 188 mAh/g (3.00–4.30V) and an areal capacity of 3.82 mAh/cm², with a coating areal density of 21.50 mg/cm². Available in both roll-pressed and unrolled configurations, the unrolled sheets require custom compaction. Designed for full-cell testing with the recommended electrolyte KLD-1230C, this electrode supports a 6-month shelf life under vacuum sealing and is typically used in laboratory-scale coin cells or small pouch cells. Its high nickel content and single-crystal structure make it suitable for studying high-energy-density cathode performance.

Canrd	10*10cm		5 sheets/pack			Coating
NO.	Electrode Name	Model	Main Material	Active Material Capacity (mAh/g)	Loading	Areal Density (mg/cm²)	Areal Capacity (mAh/cm²)
1	NCA Electrode	SY51	NCA-S (Nickel Cobalt Aluminum Oxide)	195	94.50%	17.66	3.25
2	Ni90 Electrode	SY41	Ni90 Single Crystal NCM	195	94.50%	9.50	1.75
3	NCM811 Electrode	SY33	NCM811 Single Crystal	188	94.50%	9.20	1.63
4	NCM811 Electrode	SY34	—	188	94.50%	21.50	3.82
5	NCM622 Electrode	SY25	NCM622 Single Crystal-B	168	96.70%	10.00	1.62
6	NCM622 Electrode	SY24	—	168	96.70%	21.60	3.51
7	NCM523 Electrode	SY15	NCM523	165	94.00%	19.70	3.06
8	NCM523 Electrode	SY13	NCM523	165	94.00%	10.50	1.63
9	LCO Electrode	LC02	High Voltage Lithium Cobalt Oxide-Z-4.45V	178	96.40%	10.00	1.72
10	LRM Electrode	FL01	Lithium-rich Manganese-based-E	280	95.00%	5.96	1.59
11	Graphite Electrode	SM02	Natural Graphite (Standard)-A	340	95.70%	5.80	1.89
12	Fast Charging Graphite Electrode	SM04	Fast Charging Graphite-B	350	96.70%	5.60	1.90
13	Silicon Carbon Electrode	SC02	Silicon Carbon Anode 1800 (Porous Carbon Deposited Silicon)	420	95.00%	4.80	1.92
14	NFM Electrode	NT02	Sodium Nickel Iron Manganese Oxide	127	95.50%	12.27	1.49
15	NFM Electrode	NT03	—	127	95.50%	8.00	0.97
16	Hard Carbon Electrode	YT02	Imported Hard Carbon (5 μm)	300	95.50%	6.00	1.72
17	LFP Electrode	LF07	Lithium Iron Phosphate (High Compaction Density)	150	91.50%	12.30	1.69
18	LNMO Electrode	NM01	High Voltage Lithium Nickel Manganese Oxide-B	130	96.00%	7.50	2.00
19	NFPP Electrode	NF01	Sodium Iron Phosphate Pyrophosphate	100	93.50%	15.30	1.43
20	Vanadium Pentoxide Electrode	VO02	Vanadium Pentoxide	300	80.00%	5.00	1.20
21	Manganese Dioxide Electrode	MO01	Manganese-based or Vanadium-based Material	100	80.00%	5.00	/
22	Zinc Negative Electrode	ZA01	Pure Zinc Powder / Alloy Zinc Powder	/	70.0%–96.0%	5.0–15.0	/

MOQ for Custom Small Electrode Sheets: 10*10cm/pcs，5cs/pack，1pack

To place an order or request a quotation, please Contact Us.

Current collector areal density (mg/cm²)	3.40
Electrode size	10*10
Current collector thickness (µm)	12 (Aluminum foil)
Active material ratio	94.5%
Compatible electrode type for full cells (N/P ratio)	None (Customization is available upon request).
Pack density (g/cc)	2.50-3.35 (Compaction value not provided for unrolled electrode sheets; calculate it yourself)
Active material	Nickel-Cobalt-Manganese NCM811 (Single Crystal)
Shelf life	6 months (vacuum sealed). Use within one month of opening.
Recommended electrolyte	KLD-1230C
Electrode name	NCM811 electrode sheet
Electrode number	SY34XX
Active material specific capacity (mAh/g)	188(3.00-4.30V)

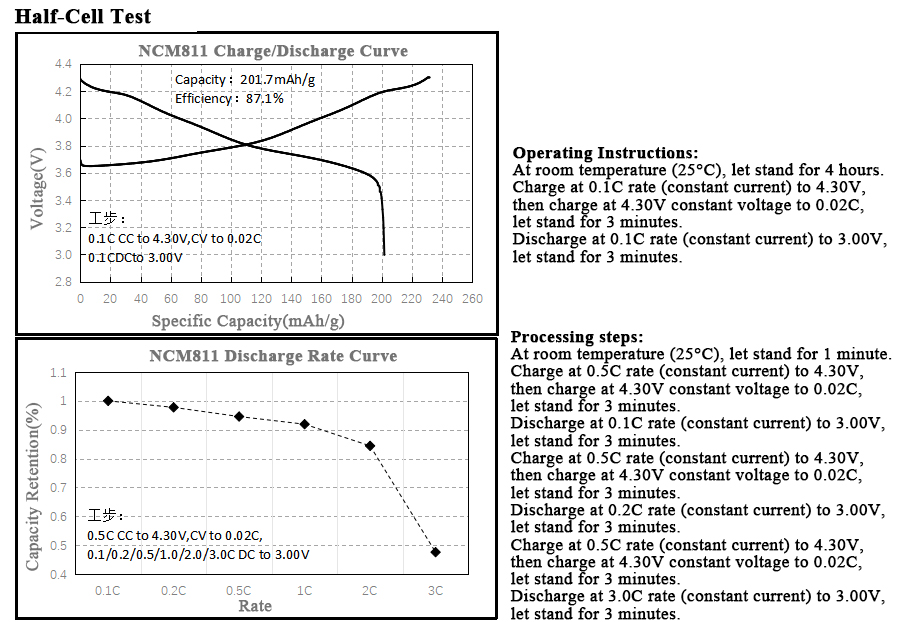

Test conditions description	At room temperature (25℃), let stand for 4 hours, charge at a 0.1C rate (constant current) to 4.30V, charge at 4.30V constant voltage to 0.02C, let stand for 3 minutes, discharge at a 0.1C rate (constant current) to 3.00V, and let stand for 3 minutes.
Test condition	At room temperature (25℃), 0.1/0.1C, 3.00-4.30V
Areal capacity (mAh/cm²)	3.82
Coating areal density (mg/cm²)	21.50 (tolerance ±2.0%)
Usage recommendations	1. If the electrode sheet is not rolled, it generally needs to be rolled before punching and baking (the compaction density can be referenced from the minimum value in the "Compaction Density" column of this table); 2. Baking conditions: 85-105℃ for 4 hours (if vacuum baking, two air changes are required); 3. The areal density needs to be determined based on the actual weight of each small disc.
