Details
Sealed packaging required
Wrap with plastic wrap even if not fully used

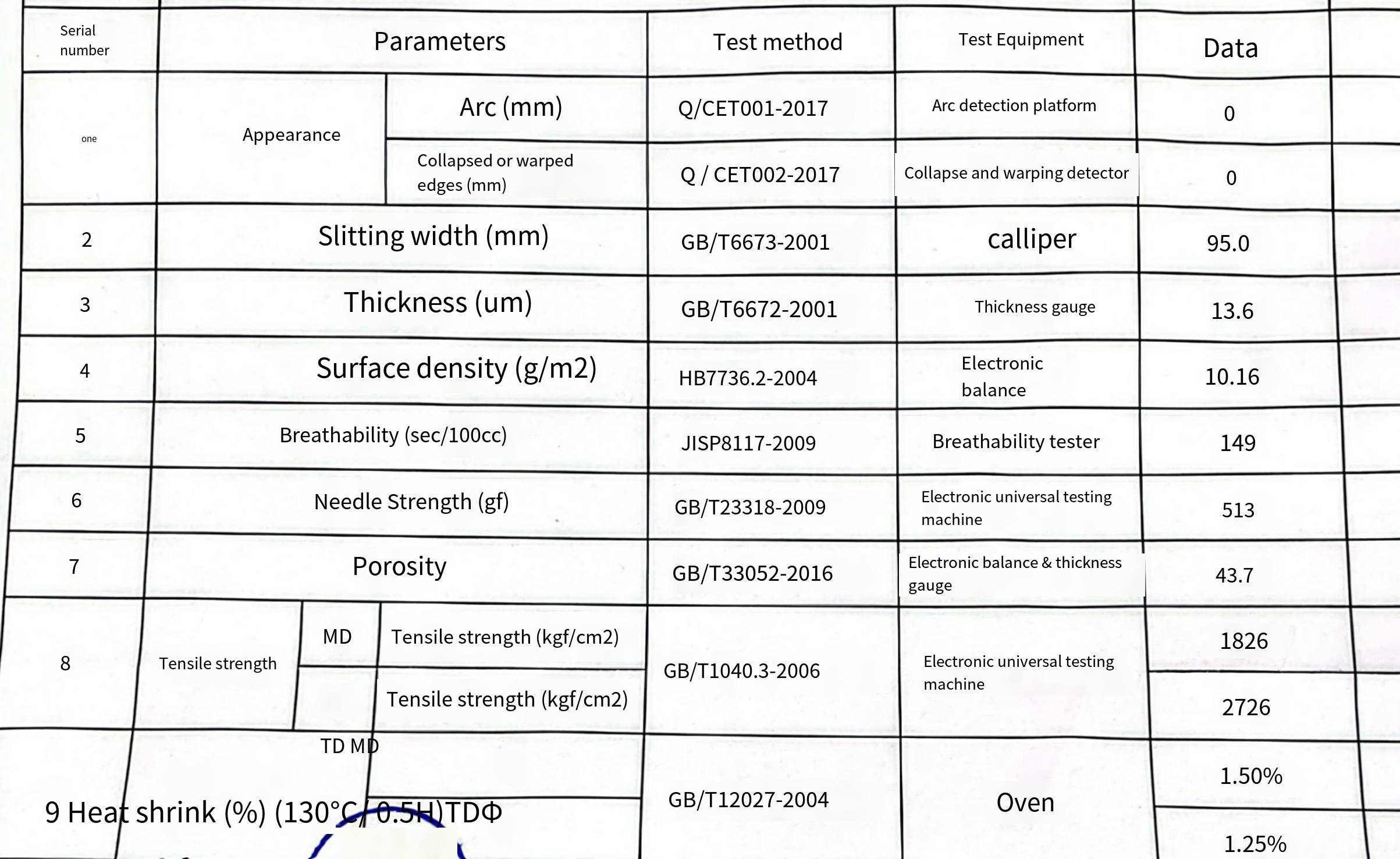

Thickness: 13.6um
Area density: 10.16g/m2
Permeability: 149sec/100cc
Puncture strength: 513gf
Porosity: 43.7
Thermal shrinkage (130℃/0.5H): MD 1.5%, TD 1.25%
Tensile strength: MD 1826 kgf/cm2, TD 2726 kgf/cm2
L is the LATP slurry coating

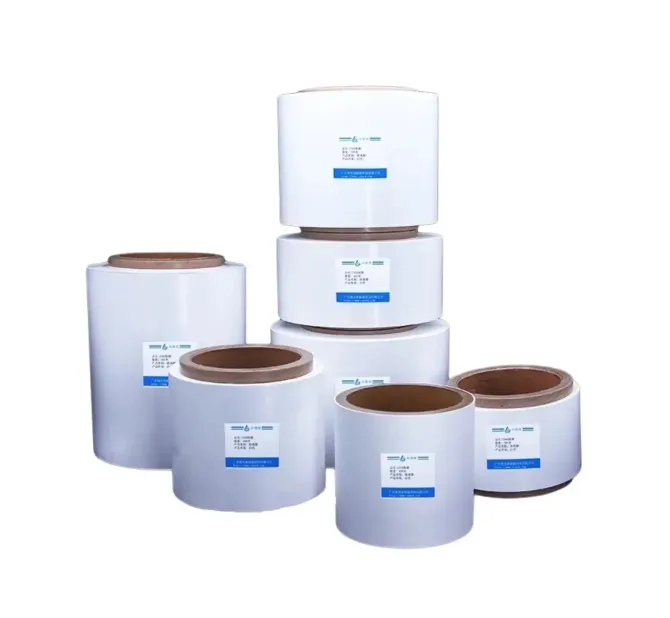

9um PE+4um LATP coating treatment
