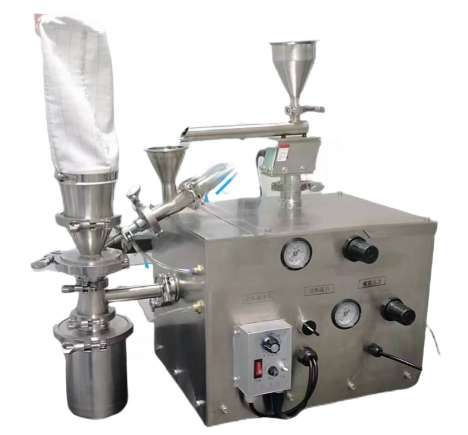

jet mill

jet mill

Model：
CAN-CRU64-0050AS
Applied range：
Thejet mill has a wide range of adaptability for superfine grinding of various materials. For high hardness, brittle materials, coagulation and fibrous materials have good crushing properties.
Date issued：
2025-01-06 21:15:35
Equipment Size：
650*400*680mm

Details

This product is a jet mill developed for advanced battery material processing, specifically integrated into dry electrode preparation lines and solid-state battery manufacturing workflows. As a versatile unit, it serves both as crushing and coating equipment, enabling fine particle size reduction and uniform dispersion of electrode powders. The CAN-CRU64-0050AS model from Canrd is engineered to support solvent-free, continuous processing, which is critical for next-generation battery research and production. Its design facilitates precise control over particle morphology and distribution, making it suitable for preparing high-performance cathode and anode materials, as well as solid electrolyte composites. By enabling efficient milling without liquid media, this jet mill helps maintain material purity and reduces downstream drying steps, aligning with industrial-scale dry electrode coating requirements.
Dimensions
650*400*680mm
Weight
\
Power
AC 220V ,50Hz
Installation
The connecting parts of the equipment are all quick-fitting connections
Treatment particle size
D90:5~20 μm
Processing capacity
5~200g/batch (0~500 g/h depending on material)
Compressed air flow
>0.5 m3/min
Feed particle size
60~100 mesh
Wind pressure
>6 Kg/cm
Seal
Gasket, O-ring, etc. are silica gel and PTFE
Material
Stainless steel, lining material: ceramic
Pneumatic pipe diameter
Φ8mm
Surface treatment
Internal polishing, external drawing surface

The jet mill has a wide range of adaptability for ultra-fine grinding of various materials. For high hardness


1. Corrosion resistance, wear resistance, long service life, no pollution materials;

2. Strong ultrafine crushing ability and low energy consumption;

3. can be more than two kinds of mixed material crushing;

4. Compact structure, small footprint, equipment connection parts are quick connection, simple operation, easy assembly, disassembly and maintenance.
