Details
Recommendations for double-sided compaction density of 1.45g/cm3 and single-sided compaction density of less than 1.2g/cm3 to prevent curling
1. Application scope: high rate, long-life batteries
2. Has a longer life and can be applied to EV class cells & amp; science research
3. Low-cost and long-life artificial graphite with excellent processing performance
| Features: | Features high energy density, minimal expansion, long cycling, high initial efficiency, etc. |
| Applicable range: | High-capacity polymer batteries, cylindrical batteries, etc. |
| Application field: | 3C fast charging, EV |

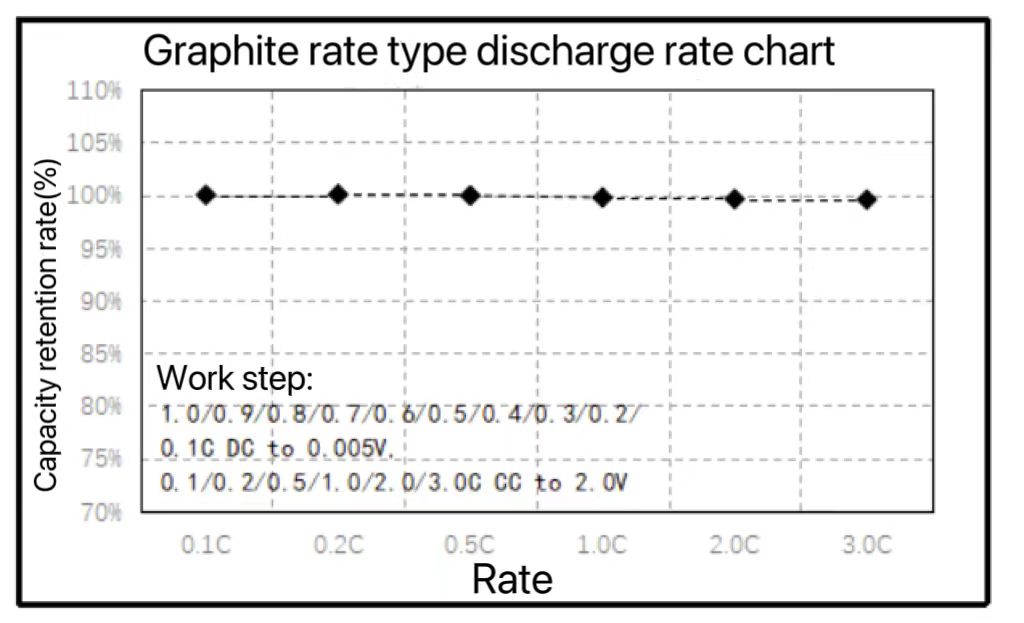

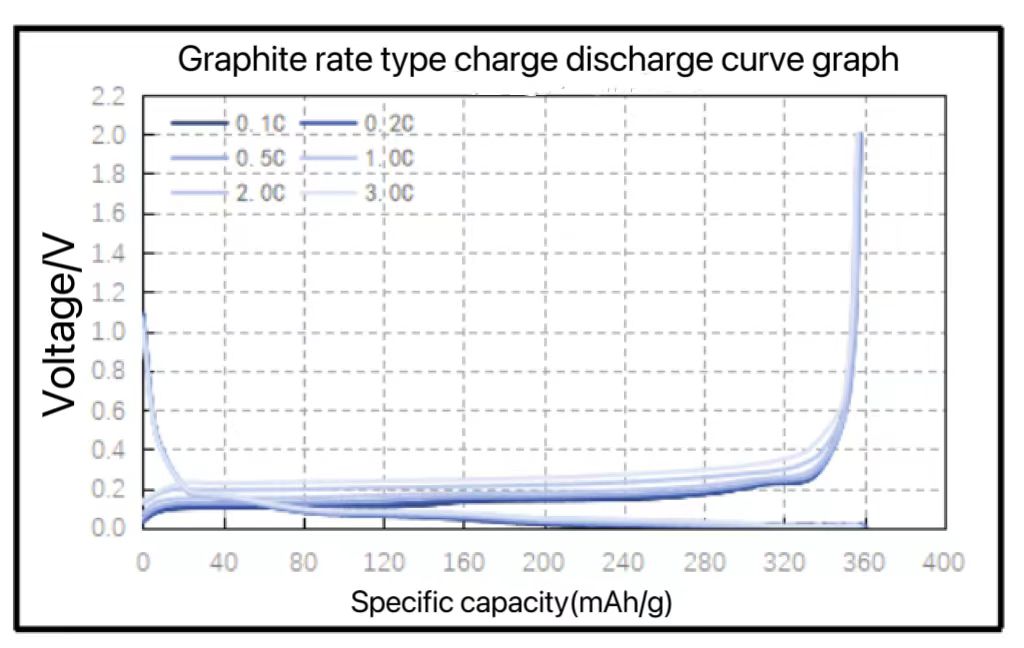

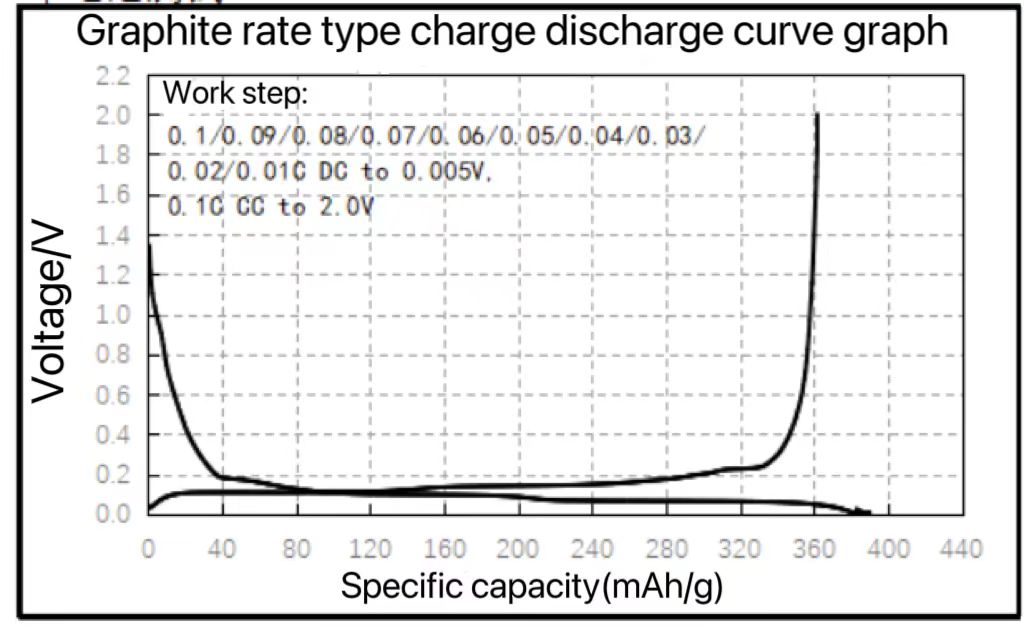

Half battery test
Note:
-
CC constant current charging; DC constant current discharge
-
Recommend electrolyte: Graphite coin cell electrolyte(KLD-1230C)

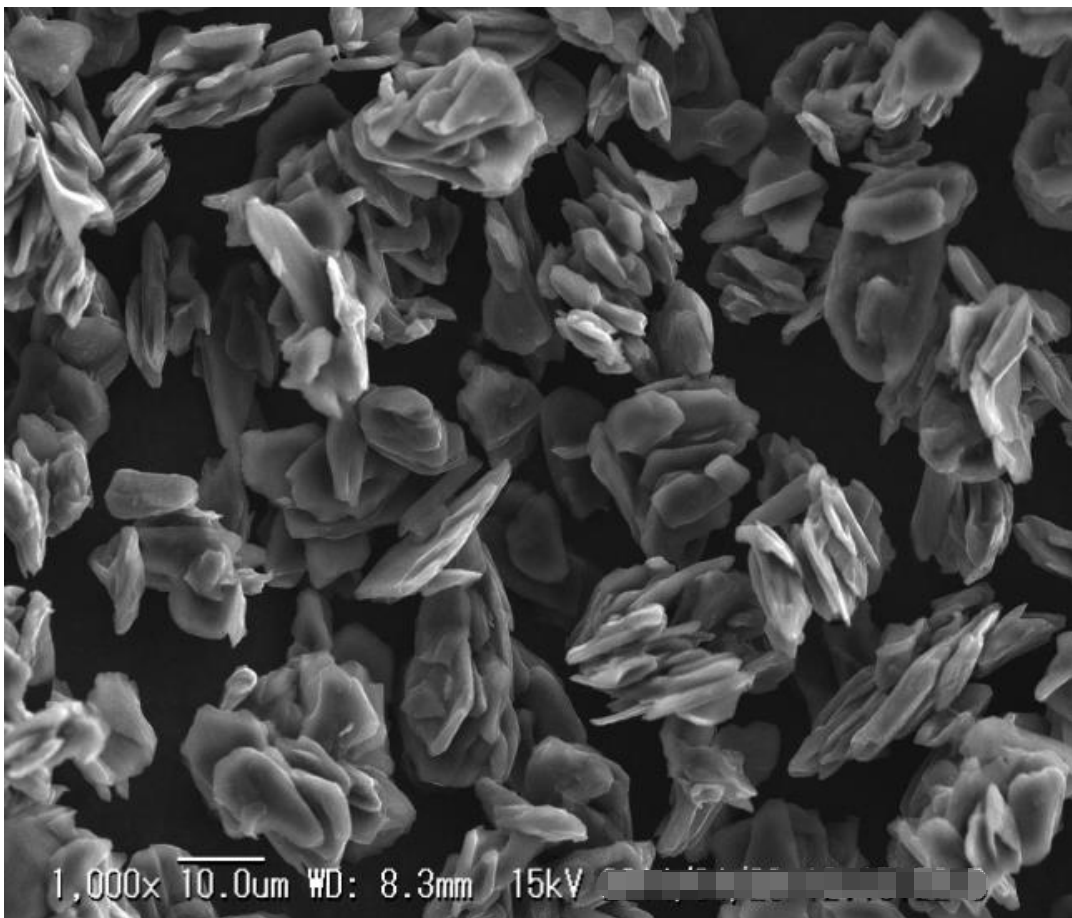

SEM：
Overview
Graphite (magnification type)
Graphite is the 1 allotrope of carbon
Overview
Graphite (magnification type)
Graphite is the 1 allotrope of carbon
Overview
Graphite (magnification type)
Graphite is the 1 allotrope of carbon
