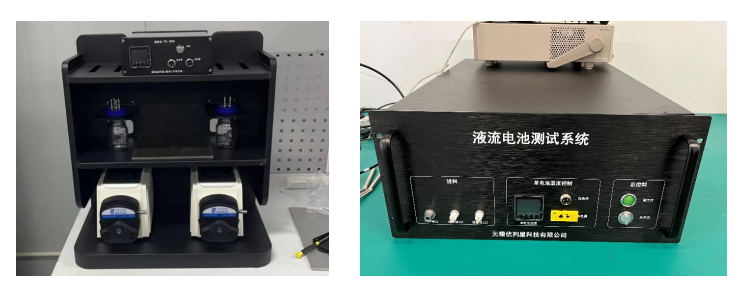

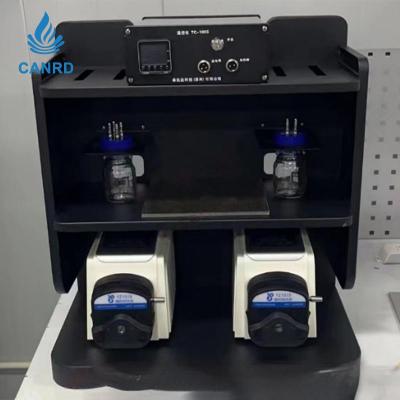

The T6-220 flow battery test platform is a test platform designed by our company for flow batteries, which is suitable for the performance evaluation of flow battery single batteries. It can carry out performance research on the core materials (electrolyte, separator, electrode, bipolar plate, etc.) and flow field structure of flow batteries, and provide complete experimental data for scientific research users.

1. Features:

A. Desktop design, high integration, complete functions, small footprint, small and convenient

B. The main components and sensors of the system are made of internationally renowned manufacturers, with reliable quality, good stability and high measurement accuracy;

C. The power supply has a variety of operation mode options, which can be programmed to operate;

D. Products can be customized according to customer needs, suitable for sulfuric acid/mixed acid vanadium liquid flow system, iron and chromium liquid flow system, etc

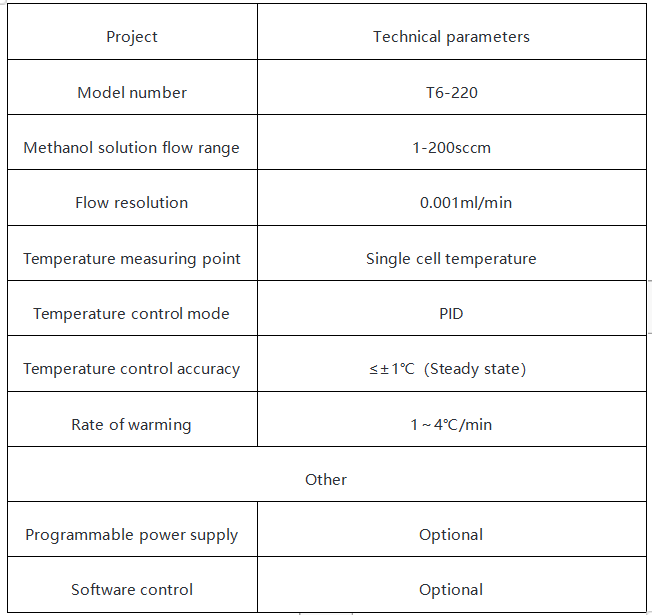

2. Product configuration and technical specifications:

A. Solution flow control

B. Temperature PID control

C. Battery thermal balance management

D. It has constant power, constant current and constant voltage modes, and can be programmed to run automatically
