Fast charging graphite-B
Fast charging graphite-B
Fast charging graphite-B

Fast charging graphite-B

$22.65
Model:
MA-EN-AN-0013
item_No
Specifications
Price
MA-EN-AN-001301
20g
$22.65

Details

This graphite material is developed for high-rate fast-charging applications in advanced lithium-ion battery research. As an anode-grade product, it exhibits a D50 particle size of approximately 9.0 µm with a narrow distribution, a BET specific surface area below 1.5 m²/g, and a tap density exceeding 1.0 g/cm³, supporting efficient electrode compaction. Electrochemical testing demonstrates an initial reversible capacity of 362.2 mAh/g and a first-cycle Coulombic efficiency of 92.7%, indicating good capacity retention and low irreversible loss. Low magnetic impurity levels (Fe+Cr+Ni+Zn at 0.06 ppm) further enhance its suitability for high-performance cell assemblies. The material is supplied as a black powder, vacuum-sealed in aluminum-plastic film, and should be stored in a cool, dry environment. It is commonly used in experimental studies focusing on fast-charging anode formulations and high-rate battery performance evaluation.













High-rate fast charging

No. Test Item   Unit Specification Measured Result
1 Magnetic Substances Fe+Cr+Ni+Zn (ppm) ≤0.1 0.06
2 Physical Properties Particle Size Distribution - D10 (μm) 5.0±1.0 5.42
3 Particle Size Distribution - D50 (μm) 9.0±1.0 9.26
4 Particle Size Distribution - D90 (μm) ≤17.0 16.22
5 BET Specific Surface Area (m²/g) ≤1.5 1.38
6 Tap Density (TD) (g/cm³) ≥1.0 1.12
7 Ash Content (%) ≤0.1 0.01
8 Electrochemical Performance Initial Reversible Capacity (mAh/g) ≥340.0 362.2
9 Initial Coulombic Efficiency (%) ≥92.0 92.7

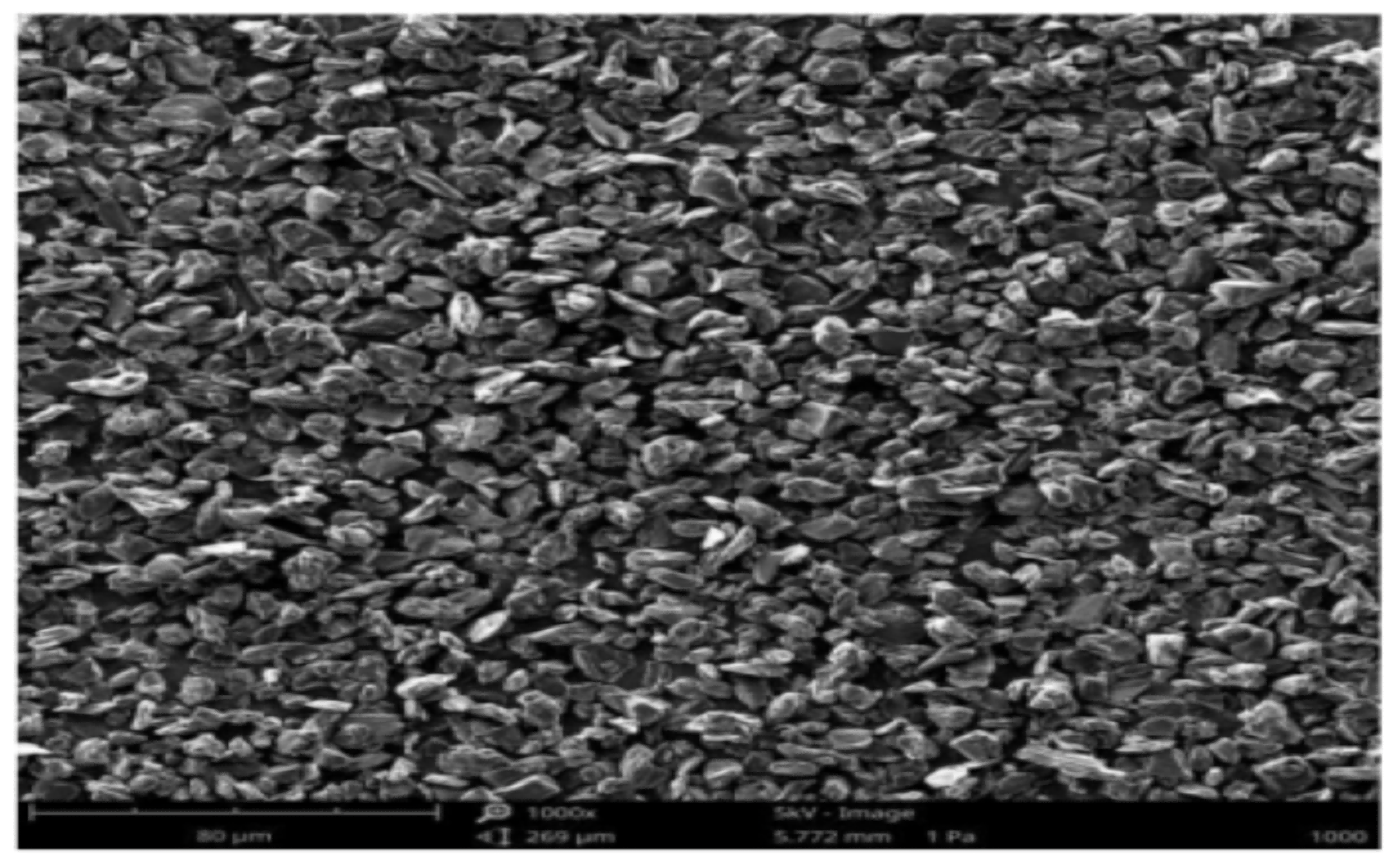

Particle morphology




The electrolyte used for testing is NCM electrolyte (KLD-1230C).

The range for compacting the electrode :

The electrode sheets are baked at 85°C for 4 hours, with a sealing pressure of 1300 psi.

D50 (um) 9.0+-1.5
Tap density (g/cm3) 1.05+-0.10
D10 (um) 5.0+-2.0
BET (m2/g) 1.40+-0.30
D90 (um) 15.5+-3.0

Appearance: Black powder; uniform color, free of clumps and foreign matter.
Packaging Requirements: Vacuum-sealed in aluminum-plastic film; outer packaging consists of a plastic bag.
Storage Requirements: Keep sealed; store in a cool, dry place.

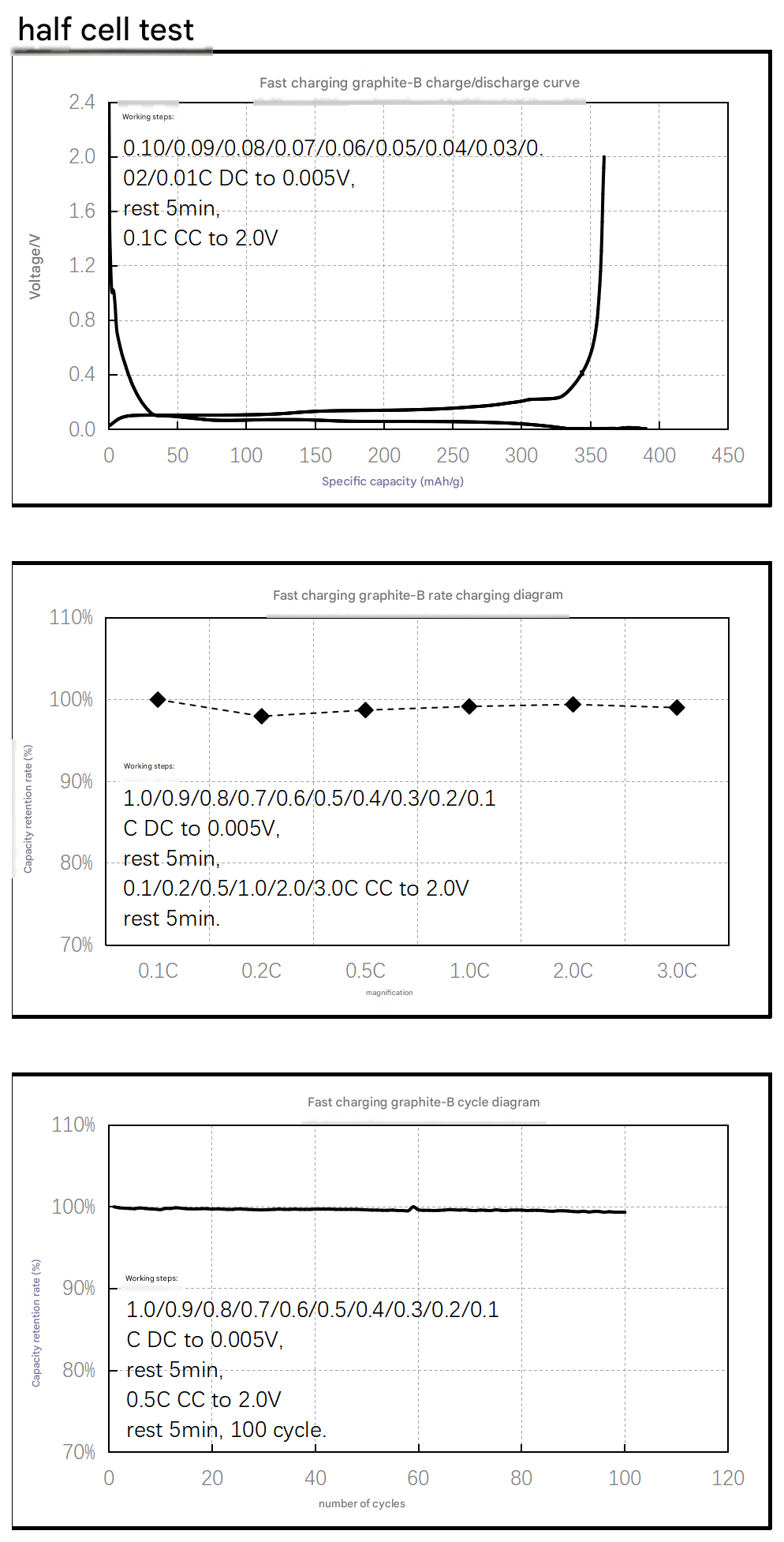

Note: CC — Constant Current Charging; DC — Constant Current Discharging; CV — Constant Voltage Charging.
