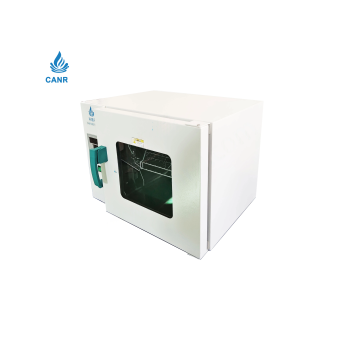

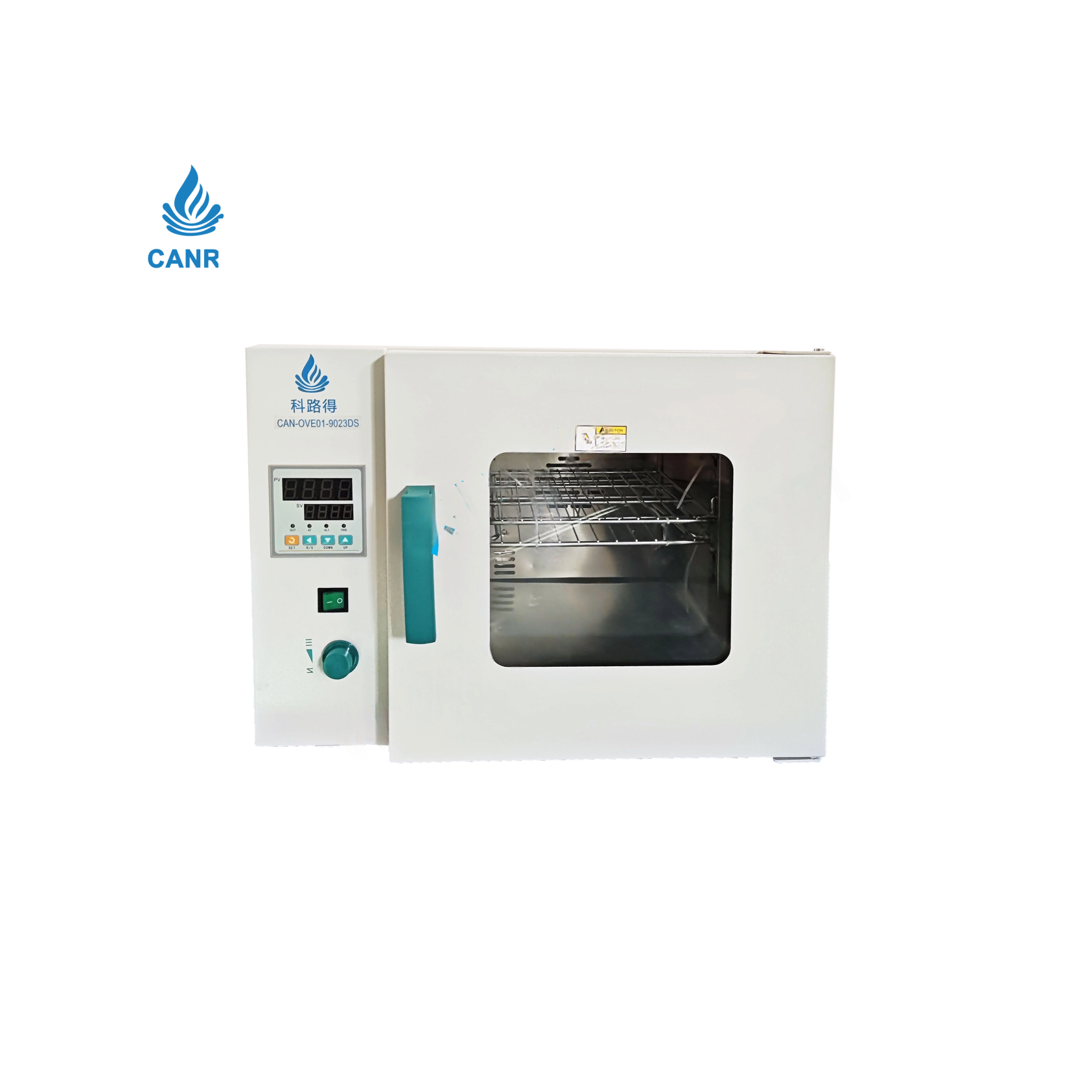

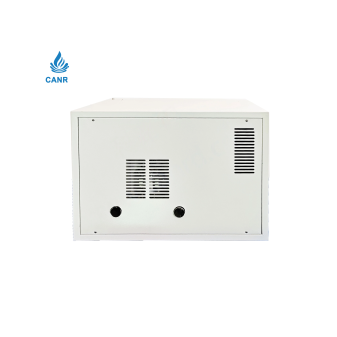

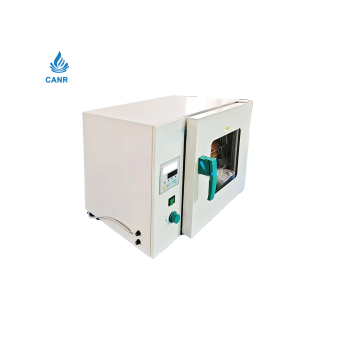

Electric heating constant temperature blast drying oven (23L, LCD screen)

Model：

CAN-OVE01-9023DY

Applied range：

Suitablefor industrial and mining enterprises, medical colleges, scientific research units, etc. for drying, baking, melting wax, sterilization.

Date issued：

2024-12-27 03:53:13

Equipment Size：

L596mm* W500mm * H445mm

Weight：

29kg

Details

Overview

Specifications

Details

This product is developed for precise thermal treatment and drying processes within advanced battery and materials research lines, including button cell, prismatic, cylindrical, and solid-state battery assembly setups. The CAN-OVE01-9023DY oven features a 23-liter chamber with forced air convection for uniform temperature distribution, controlled via an intuitive LCD interface. Its constant temperature maintenance capability supports stable baking of electrodes, separators, and other moisture-sensitive components during cell fabrication. The design accommodates standard bench-top operation and integrates seamlessly into glovebox-free workflows where controlled drying is critical. This model prioritizes reliability and ease of use for laboratory-scale drying applications, with robust construction suited for long-duration runs typical of electrode preparation and electrolyte removal processes. No performance values beyond those specified are inferred.

Studio Size	L 300mm * W 280mm * H275mm
Site Load	29
Equipment Size	L 596mm * W 500mm * H445mm
Operating Environment	regular Environment
Power	About 810W
Power Supply	AC:220V/50HZ

Working environment temperature	5~40 ℃
Timing range	0~9999min
Temperature control accuracy	RT +10~200 ℃
Temperature resolution	0.1 ℃
Temperature fluctuation	± 1 ℃
