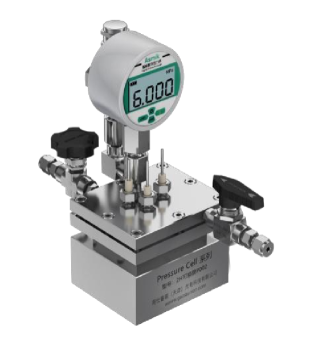

Dual-Chamber High-Pressure Electrochemical Cell with Internally Replaceable Membrane
Dual-Chamber High-Pressure Electrochemical Cell with Internally Replaceable Membrane

Dual-Chamber High-Pressure Electrochemical Cell with Internally Replaceable Membrane

$5321.96
item_No:MA-EN-BE-011501
✓ Selected: P002-1(20+20ml)
Quality Assurance
Factory Direct
Global Shipping

Details

Product Description & Specification

Model: P002-1

• Material: Titanium (Ti)

• Maximum Withstand Pressure: 6 MPa

• Volume: 20+20 ml

• Valve Material: 304 Stainless Steel

• Single chamber volume: 20 ml, customized volume available upon request

• Three-electrode system

• Reference electrode and working electrode are arranged in one chamber; counter electrode is placed in a separate chamber

• Reference Electrode: Ag/AgCl Electrode (Sold Separately)

• Counter Electrode: Platinum Plate Electrode (Sold Separately)

• Working Electrode: Glassy Carbon Electrode Clip (Sold Separately)
