Details
| Serial No. | Configuration | SDF-400 Timed Disperser |
| 1 | Whole Machine | 1 Set |
| 2 | Barrel | 1 Piece, 1.5L Double-layered Bucket |
| 3 | Grinding Disc | 1 Piece |
| 4 | Dispersing Disc | 2 Pieces |
| 5 | Speed Controller | 1 Set |
| 6 | Carbon Brush | 1 Pair |
| 7 | Clamp | 1 Pair |
| 8 | Instruction Manual | 1 Booklet |
| 9 | Certificate of Compliance | 1 Piece |
The content below contains lithium battery industry terminology and its translation into English:
一、overview

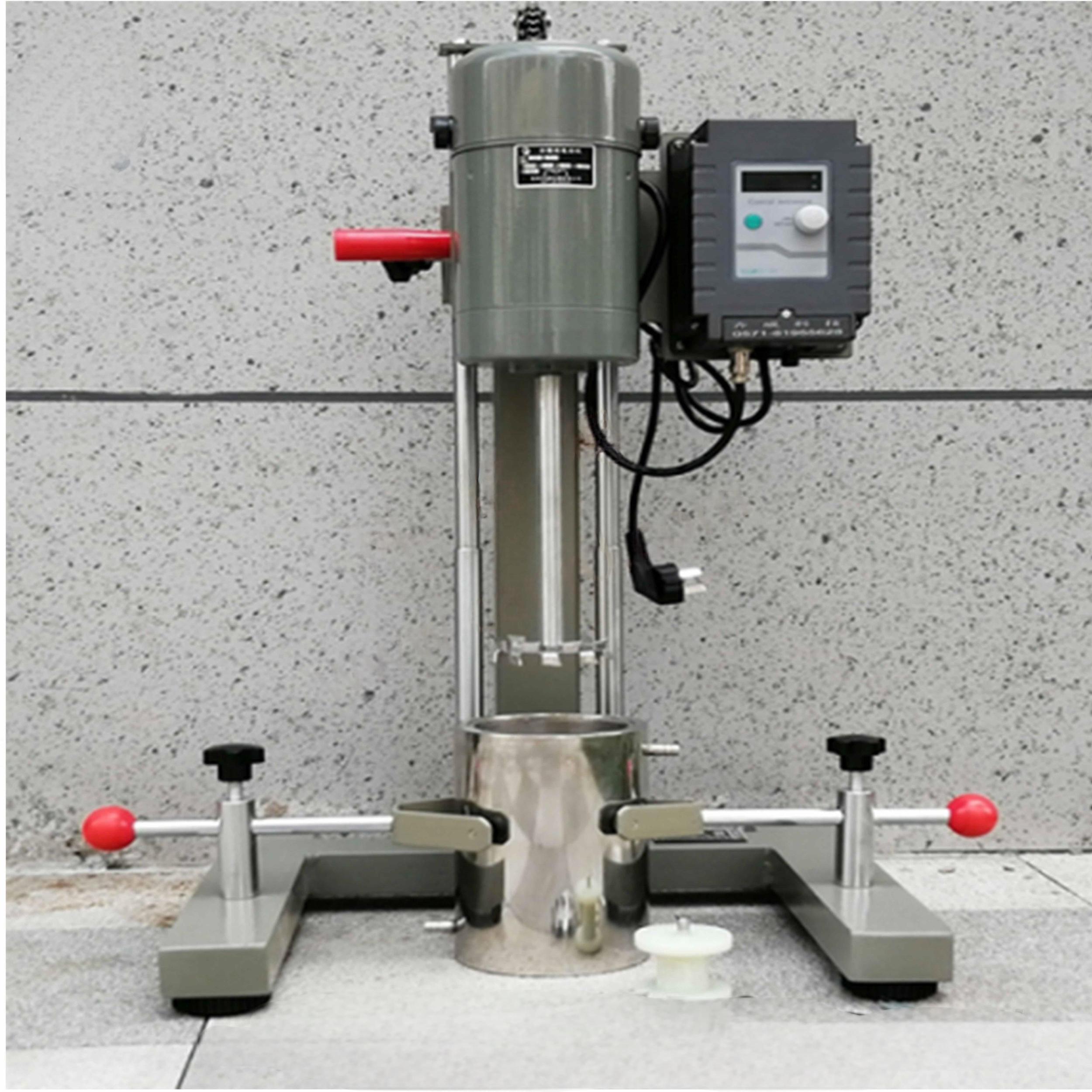

The laboratory high-speed disperser combines the functions of dispersion and stirring, with high efficiency, good mixing effect, and easy cleaning. The manual lifting is simple and convenient.
Widely used in factories, research institutions, universities, medical units, and other applications for dispersion, stirring, and mixing of materials in liquids.
Timed operation, stirring time can be set.
二、Scope of application and main technical parameters
| Model | SDF-400 |
| Power | 400W |
| Adjustable Range | 100-8000r/min |
| Dispersing Disc | Φ50mm；Φ60mm; |
| Grinding Disc | Φ60mm； |
| Lifting Stroke | 250mm |
| Dimensions | 460×420×750mm |
| Barrel | 1.5L |
| Voltage | 220V 50HZ |
| Gross Weight | Approximately 35KG |
三、Main structure
This machine consists mainly of the following components:
1. Motor
2. Intelligent Motor Speed Controller
3. Barrel
4. Lifting Stand.
5. Dispersing Disc, Grinding Disc
四、install
1. Fix the two clamps on the bracket, fix the steel barrel, and align the hole of the barrel cover with the motor shaft.
2. Connect the motor to the five-core aviation plug on the speed controller. (Pay attention to the direction of the gap.)
3. Connect the ground wire properly.
五、use and maintenance
1. When using, fix the selected grinding disc or dispersing impeller to the rotating shaft .
2. Adjust the height of the rotating shaft and container content, lock the motor seat and container, place the material and cover the container lid.
3. Turn on the power, switch on, wait for the display to reset to zero, and set the desired speed with the positioning knob.
4. This motor is a series-excited motor, and sparks are generated when it rotates. It is not suitable for use in explosion-proof workshops.
5. Speeds greater than 4000r/min should not be run without load.
6. When the length of the motor carbon brush is less than 10mm, it should be replaced.
Intelligent controller button instructions
This intelligent controller has two working modes. Choosing different modes can make the motor operate in timed or non-timed mode.
Timing operation method: When the startup window displays "0000," press "Time," the red light in the upper right corner will be on. Adjust the positioning knob to set the time, then press "Time" again, and you can set the corresponding speed by the positioning knob. The instrument will stop automatically when the set time is over.
Stop operation: In any working condition, the machine will stop running when the positioning knob is pressed once.
