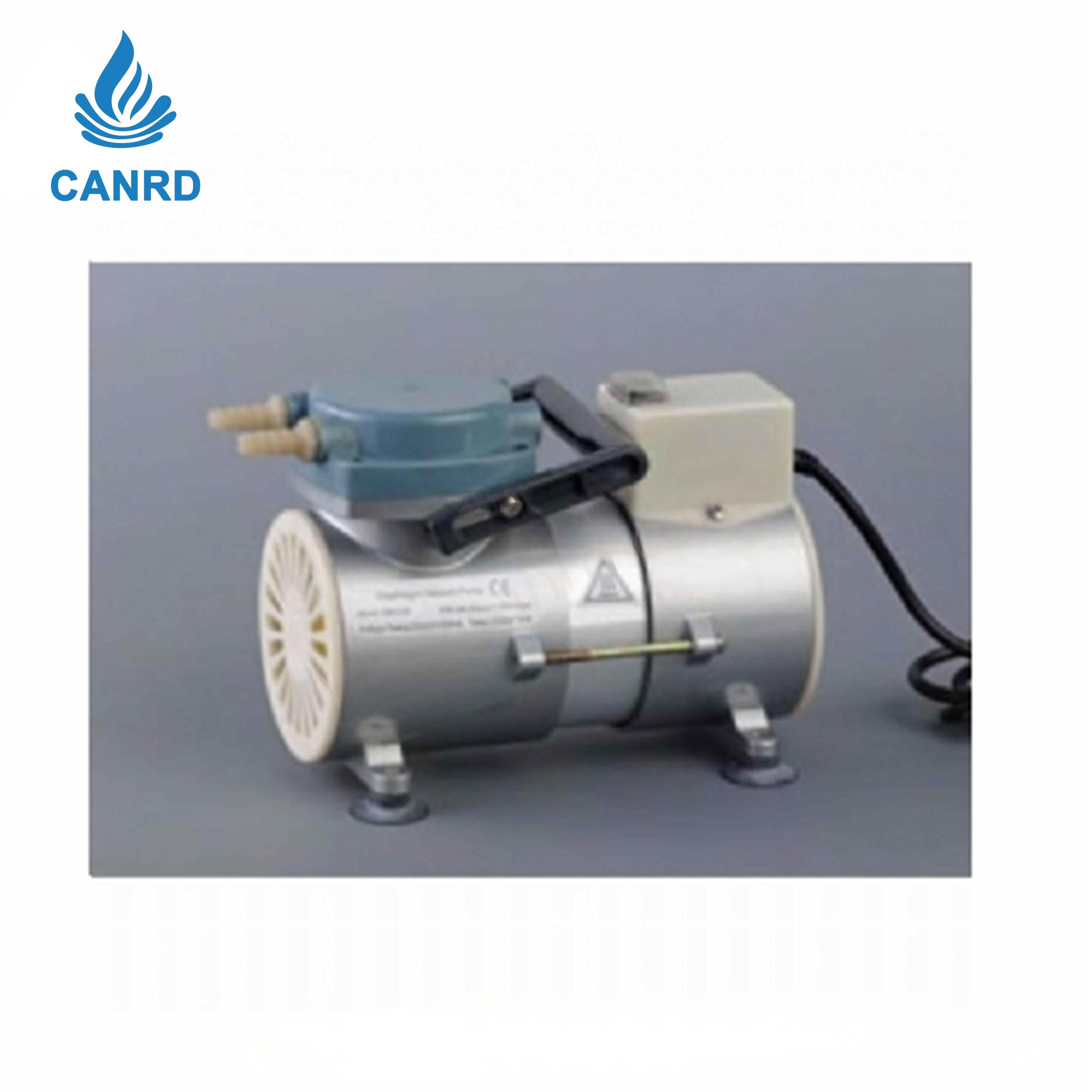

Diaphragm Vacuum Pump

Diaphragm Vacuum Pump Product Introduction:

Diaphragm vacuum pump, advanced design, high work efficiency, long service life, is a new generation of products integrating high-tech. In addition to being suitable for applications of circulating water vacuum pump and rotary vane vacuum pump, it is also used in fields such as medical and pharmaceutical product analysis, fine chemicals, biochemical pharmaceuticals, food inspection, criminal investigation technology, etc. It is a product supporting precision chromatographic instruments and one of the equipment in the laboratory. It has obtained multiple national patents, is safe and reliable, and easy to use.

Application Cases:

1. Vacuum filtration

2. Vacuum distillation

3. Vacuum adsorption

4. Solvent filtration

5. Solid phase extraction

6. Dehydration

7. For compression and air conversion gases

Diaphragm Vacuum Pump Product Features:

1. No need for any working medium (oil-free), no pollution. At the same time, the gas exchange chamber of the machine is built-in with filter material to ensure the purity of the air.

2. The production process adopts new technology and new materials. It is easy to move and work smoothly, ensuring ideal vacuum and high air flow rate.

3. The dedicated motor has passed the EU CE certification and is provided by a professional motor manufacturer ODM. Reasonable rotation design, equipped with overheat circuit breaker, automatically cut off power after the pump body temperature reaches 130°C, protecting the motor from damage during long-term operation.

4. It uses frictionless diaphragm movement, does not generate heat, and has no friction loss. The diaphragm is made of imported rubber, corrosion-resistant, and has a long service life.

5. The body is designed with an automatic cooling exhaust system, which can ensure continuous operation for 24 hours.

6. It adopts pressure-adjustable design to meet a certain range of vacuum and gas flow rate.

7. The bearings use imported classic bearings, with smooth operation, low noise, and high work efficiency.

8. The parts of the pump in contact with the gas are treated with special fluoropolymer Teflon surface, which has complete chemical corrosion resistance.

9. Small size, lightweight, easy to move, saving laboratory space, and convenient for maintenance.

Jinteng GM-0.20 Diaphragm Vacuum Pump, pumping speed: 12L/Min, ultimate pressure vacuum degree: ≥0.075Mpa; 250mbar, positive pressure: ≥30Psi, inlet: φ6mm, outlet: φ6mm, weight: 4Kg

Jinteng GM-0.33A Diaphragm Vacuum Pump, pumping speed: 20L/Min, ultimate pressure vacuum degree: ≥0.08Mpa;200mbar, inlet: φ6mm, outlet: muffler, pump head: 1, weight: 7.5Kg

Jinteng GM-0.5A Diaphragm Vacuum Pump, pumping speed: 30L/Min, ultimate pressure vacuum degree: ≥0.08Mpa;200mbar, positive pressure: ≥30Psi, inlet: φ6mm, outlet: φ6mm, pump head: 1, weight: 8Kg

Jinteng GM-0.5B Diaphragm Vacuum Pump, pumping speed: 30L/Min, ultimate pressure vacuum degree: ≥0.095Mpa; 50mbar, inlet: φ6mm, outlet: muffler, pump head: 2, weight: 10Kg

Jinteng GM-1.0A Diaphragm Vacuum Pump, pumping speed: 60L/Min, ultimate pressure vacuum degree: ≥0.08Mpa;200mbar, positive pressure: ≥30Psi, inlet: φ6mm, outlet: φ6mm, pump head: 2, weight: 10Kg
