Carbon Paper GDS310 (Hydrophilic)
Carbon Paper GDS310 (Hydrophilic)
Carbon Paper GDS310 (Hydrophilic)

Carbon Paper GDS310 (Hydrophilic)

$84.57
Model:
FM-EM-GD0014
item_No
Specifications
Price
FM-EM-GD001401
20*20cm
$84.57

Details

This product is developed for advanced energy research applications, particularly in fuel cells and zinc battery systems, as a hydrophilic carbon paper gas diffusion layer (GDL). The GDS310 variant, with a thickness of 0.31 mm and a porosity of 77%, offers a balanced combination of mechanical integrity and gas transport properties. Its tensile strength reaches 10 N/cm in the cross-direction, while flexural modulus values of 3500 MPa (machine direction) and 2000 MPa (cross-direction) ensure structural stability under compression. Low through-plane resistance (<5 mΩ·cm²) and air permeability under 10 seconds support efficient electron and gas diffusion. Designed for experimental setups, it is commonly used as a substrate for catalyst layers or diffusion medium in membrane electrode assemblies. The hydrophilic treatment enhances water management, making it suitable for low-humidity or liquid-feed systems.

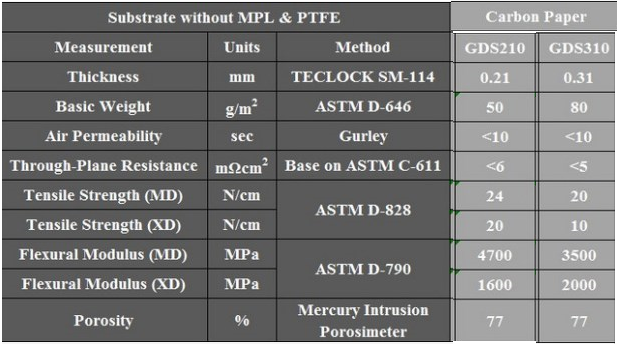

Tesile Strength (XD) (N/cm) 10
Air Permeability (sec) <10
Flexural Modulus(MD) (MPa) 3500
Thickness(mm) 0.31
Porsity (%) 77
Flexural Modulus (XD) (MPa) 2000
Through-Plane Resistance (mΩ·cm2) <5
