Details
Product Introduction:
1. Test clip temperature range: -40℃~120℃;
2. Test cable temperature range: -20℃~80℃
3. Can be used with Blue Battery charging and discharging equipment and Canrd constant temperature chambers (if used with NEWAE equipment, the battery positive and negative terminals need to be reversed; the positive and negative terminal sequence of NEWAE test cables is the opposite of this product);
4. All female connectors for connecting to the test cabinet use GX16-4 female connectors;
5. Adaptable current ≤5A. If a higher current is required, new test cables need to be customized;
6. 1250 is the test clip model number, representing a test clip width of 12mm and a length of 50mm, which cannot be mounted on a guide rail;

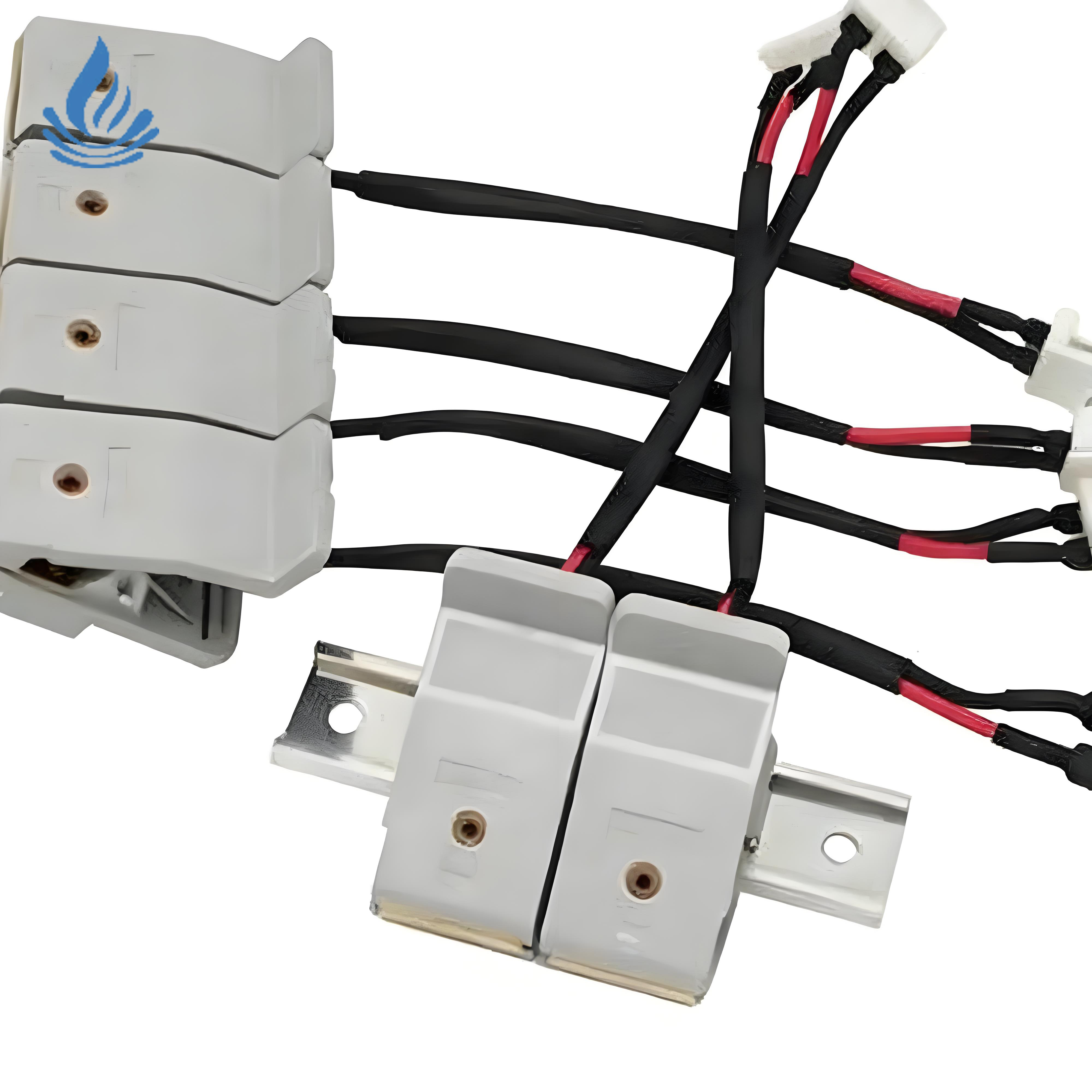

7. 2545 is the test clip model number, representing a test clip width of 25mm and a length of 45mm, which can be mounted on a guide rail, which needs to be purchased separately;

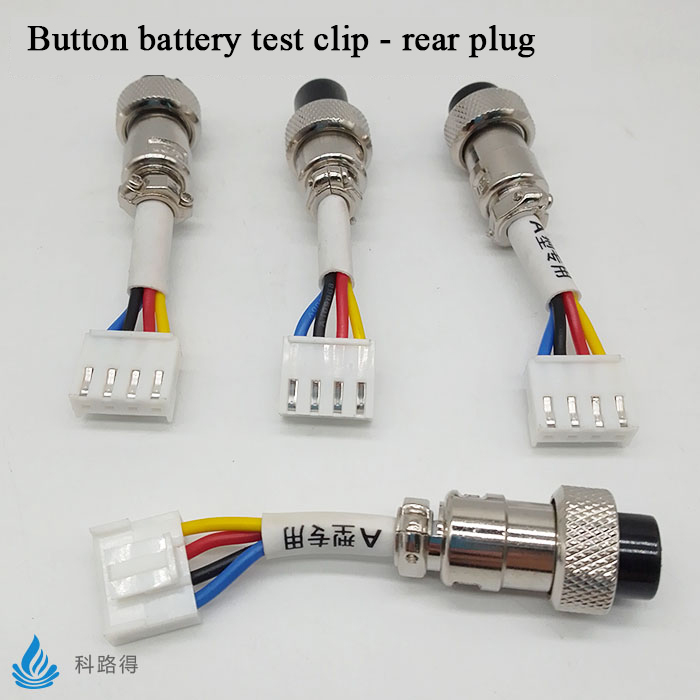

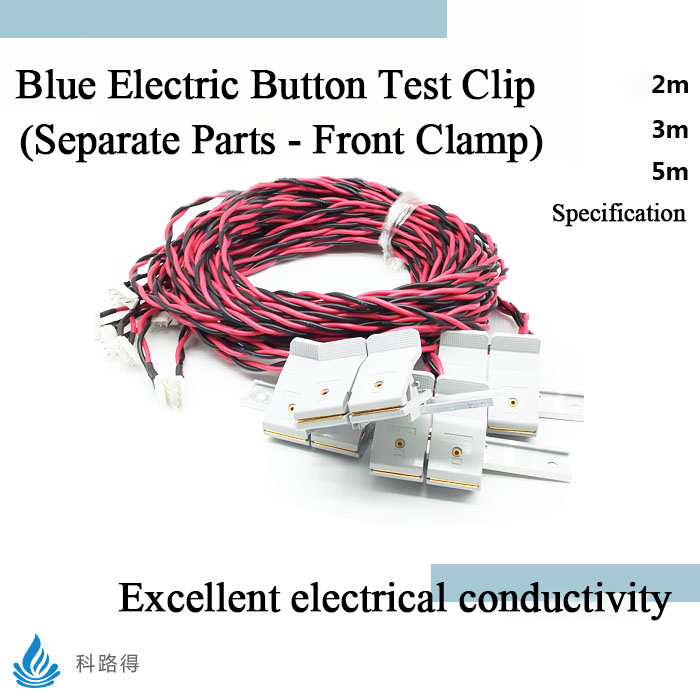

8. Canrd button battery test clips - two clips with 15cm/2m/3m/5m rear plugs, each with one guide rail;
9. Custom orders of different specifications start from 80 pieces.
Test clamp temperature range: -40℃~125℃
