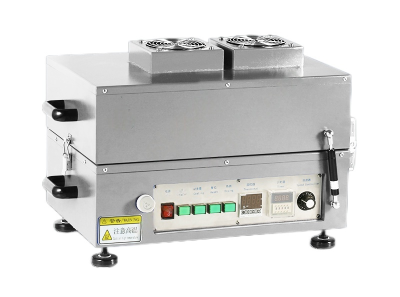

automatic coating dryer

automatic coating dryer

Model：
CAN-COT50-0250DB
Applied range：
Thisproduct is widely used in various high temperature coating research, such as ceramic film, crystal film, battery material film, special nano film; can adapt to the development of science and technology of film formation under high temperature conditions in the future.
Date issued：
2024-12-08 18:07:08
Equipment Size：
L500mm× W350mm × H320mm
Weight：
50kg

Details

This automatic coating dryer is developed for precision drying processes in battery electrode manufacturing, particularly suited for button cell and single-layer stacked battery production lines. Designed for consistent heat distribution and controlled solvent removal, it supports the fabrication of uniform electrode coatings essential for electrochemical performance. The system integrates reliable temperature management and adjustable drying parameters to accommodate different slurry formulations and substrate speeds. Common applications include drying coated aluminum and copper foils in lab-scale or pilot production environments. Built by Canrd, the CAN-COT50-0250DB model emphasizes operational stability and process repeatability, making it a practical choice for research institutions or small-batch battery assembly where coating quality directly impacts cell consistency and longevity.
Site Load
/
Equipment Size
L500mm × W350mm × H320mm
Vacuum Plate Size
L365mm × W200mm × H32mm
Power Supply
AC:2200V, 50HZ
Equipment Weight
50kg
heating and drying system
room temperature ~ 120 ℃, digital display temperature controller, precision 1 ℃
coating speed
0~120mm/sec (such as lithium iron phosphate slurry)
coating width
100mm coating speed can be customized
precision
10um
coating drive
motor drive, coating speed is stable and adjustable
coating method
flat plate coating, standard metering devices such as film maker or scraper
vacuum pump
Including one built-in oil-free vacuum pump
stroke
The stroke can be adjusted by the stroke switch between 0~250mm
vacuum plate size
L365mm × W200mm × H32mm
scraper adjustable range
0.02~3.5mm adjustable

& nbsp; & nbsp; & nbsp; This product is widely used in various high-temperature coating research


1. strong wind circulation drying heating, digital display temperature control;

2. Flat plate coating, motor-driven blade coating, stable and adjustable coating speed;

3. The coating speed is adjustable, and the vacuum aluminum plate can be quickly placed or removed from the substrate;

4. The stroke can be adjusted between 0~250mm by the stroke switch

5. Standard film making device, high coating precision, coating thickness adjustable;

6. Can be used in the glove box, easy to operate, small size, can save space;

7. Built-in vacuum pump, substrate adsorption without deformation and wrinkles;

8. Exquisite appearance, sheet metal using three-dimensional geometric design, simple and beautiful.
