304S Coin Cell Case (Anode and cathode) Two Pieces - CR2032 / 2025 / 2016 / 2430

Name: Button Battery Test Fixture
Brand: Canrud
Price: 36.25 USD
Availability: InStock

$15.10

Material：

304stainless steel

Model：

CR2016two-piece set

item_No

Specifications

Price

CR2016 two-piece set

100 sets

$15.10

Details

Overview

Details

This product is developed for researchers and experimentalists assembling coin cells for battery and energy material testing, offering anode and cathode cases in 304 stainless steel for CR2016, CR2025, CR2032, and CR2430 formats. The cases are pre-cleaned with solvent and ready for direct use, saving preparation time in laboratory workflows. Recommended cleaning procedures—ultrasonic cleaning for cathode components and gentle rinsing for anode shells to prevent scratches—help maintain surface integrity and experimental consistency. Available in multiple set sizes with optional customized 2430 cases (without brand logo), these components support reliable electrical contact and durability in button cell assembly for electrochemical characterization and materials research.

If purchasing positive or negative coin cell case , the price is calculated the current package unit price/2+0.03yuan per terminal.

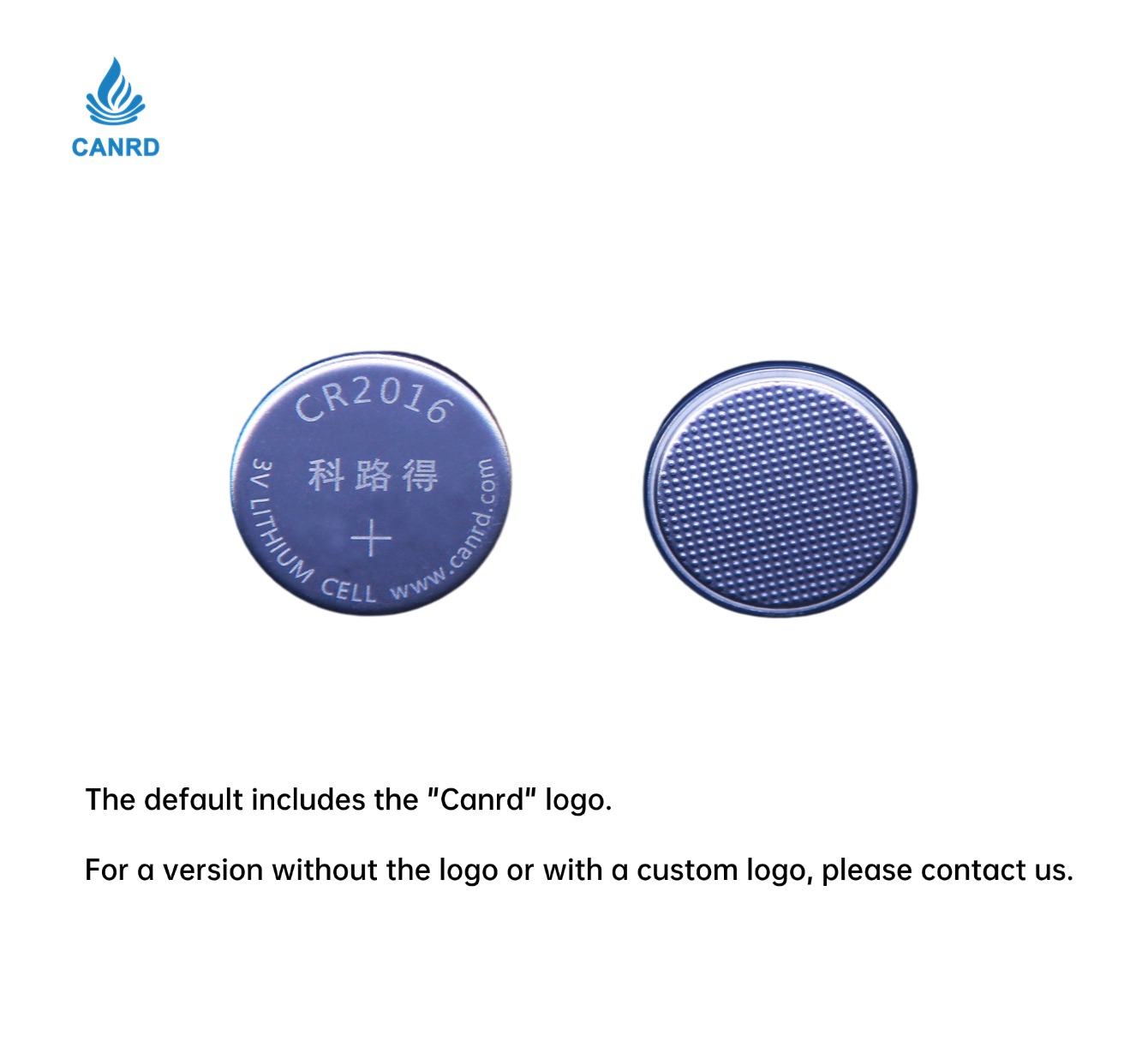

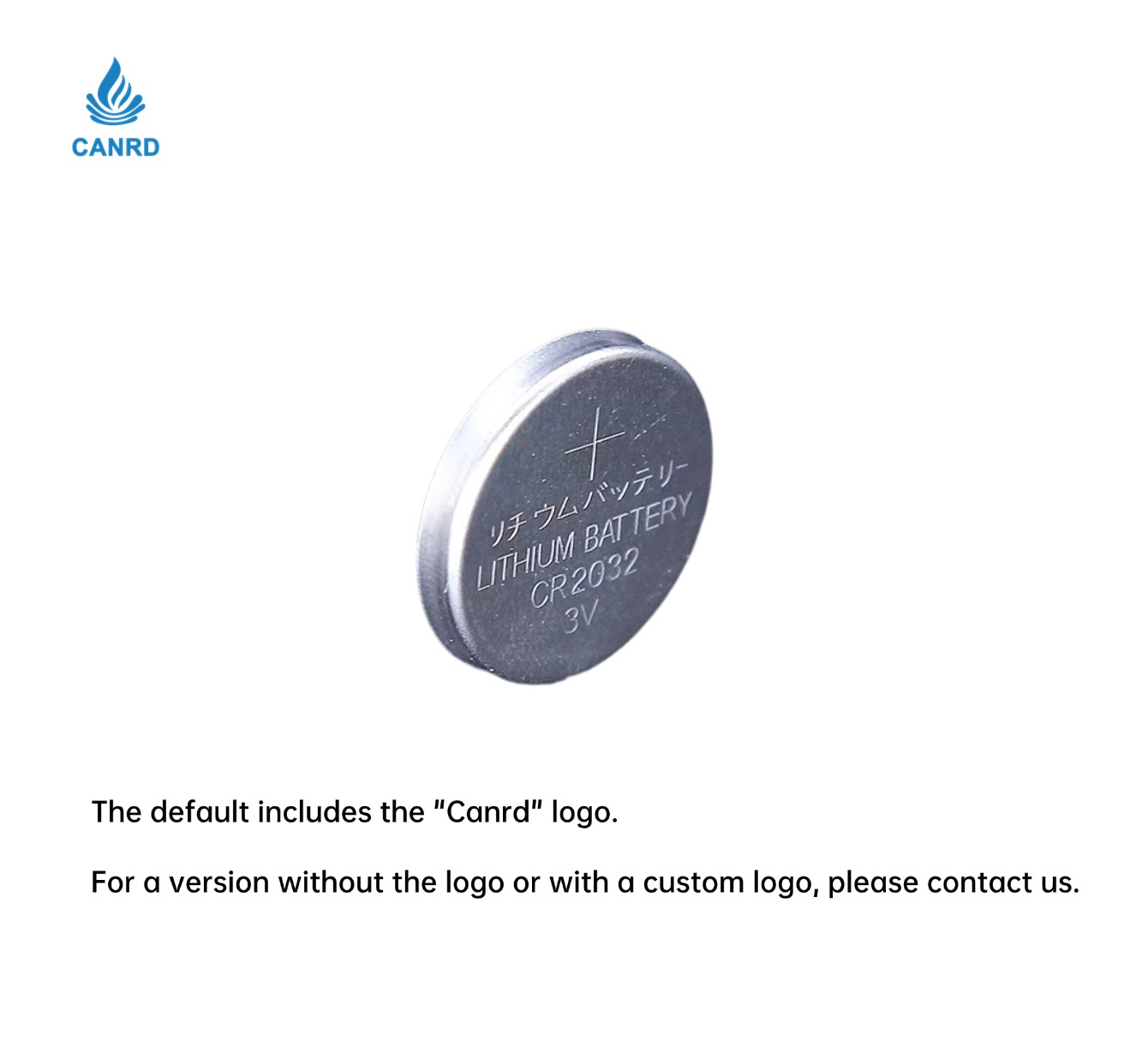

Customized 2430 does not have a Canrd logo, while the standard version does have the Canrd logo.

Battery cover (cathode shell), spring, and gasket cleaning recommendations:

1. Choose alkaline or neutral solvent (such as deionized water) for ultrasonic cleaning for 10-20 minutes;

2. Use deionized water for ultrasonic cleaning 2-3 times, 1-2 minutes each time;

3. Dry

Anode shell cleaning recommendations (anode shell is not recommended for ultrasonic cleaning, as it may cause scratches):

1. Choose alkaline or neutral solvent (such as deionized water) for soaking for 10-20 minutes;

2. Rinse with deionized water 2-3 times, 1-2 minutes each time;

3. Dry

Note: Corunode button shell, button cover, spring, and gasket have been professionally cleaned with solvent before shipment and can be used directly without cleaning.
