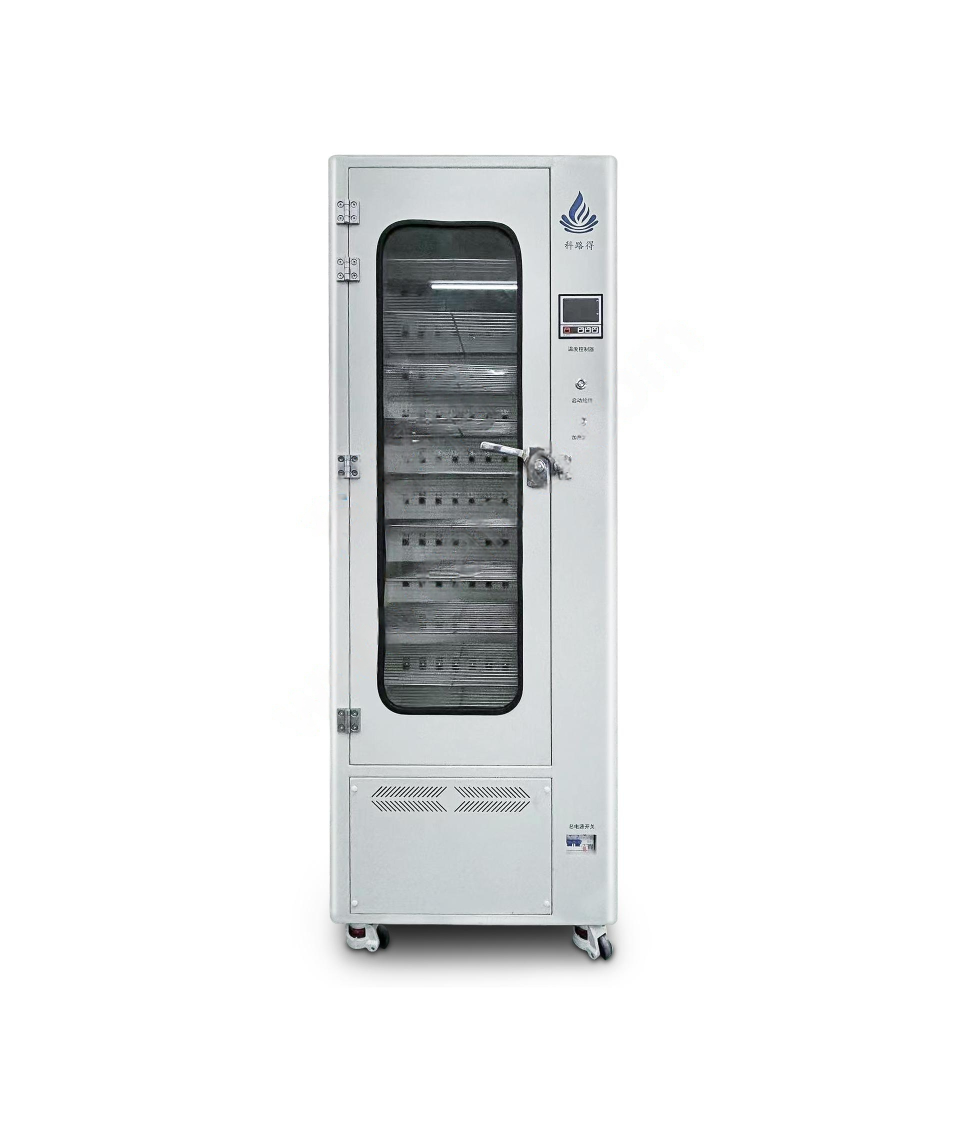

Battery Constant Temperature Test System (5~80 °C)

Name: Battery Constant Temperature Test System (5~80 °C)
Brand: Canrd
Availability: InStock

Model：

CAN-CON10-0144LS

Applied range：

Thisequipment is a common temperature control equipment for button batteries, polymer soft-pack batteries, square batteries, cylindrical batteries and mold batteries, providing accurate test data for battery research, production, terminal and other fields. This equipment can be used in energy technology, electronics, electrical appliances, communications, instrumentation, vehicles, plastic products, metals, food, chemicals, building materials, medical, aerospace and other products for quality testing.

Date issued：

2024-12-09 18:05:36

Equipment Size：

Outerbox size: L 570mm * W 570mm * H1450mm, inner box size: L 400mm * W 400mm * H900mm

Weight：

100kg

Details

Visão Geral

Especificações

Detalhes

This battery constant temperature test system from Canrd is developed for evaluating cell performance under controlled thermal conditions, covering a temperature range of 5 to 80 °C. It is designed to integrate with various battery manufacturing lines—including button cell, single-layer stacked, cylindrical, and pouch cell production—making it suitable for R&D and quality control environments. The system supports consistent testing of material behavior and electrochemical stability across different cell formats, which is critical for validating new battery chemistries or optimizing assembly processes. By maintaining precise temperature control, it helps researchers assess how thermal variations affect capacity, internal resistance, and cycle life. Its modular design allows straightforward incorporation into existing production workflows, and the broad temperature span accommodates both low- and moderate-temperature tests commonly required in advanced battery research.

equipment weight	100kg
overall dimensions	L 570mm * W 570mm * H1450mm
operating environment	1. temperature: 5 ℃ ~ 40 ℃ 2. relative humidity: ≤ 85% 3. Air pressure: 86kPa ~ 106kPa
maximum operating power	about 1.5kW
inner box dimensions	L 400mm * W 400mm * H900mm
power supply	220V

Temperature uniformity	≤ ± 2 ℃ (after no-load stabilization)
Temperature deviation	± 1 ℃ (after no-load stabilization)
Heating time	3.5 ℃/min (average heating rate) 25 ℃ ~ 80 ℃ (no load)
Temperature range	+5 ℃ ~ +80 ℃
cooling time	0.2 ℃/min (average cooling rate) 25 ℃ ~ 8 ℃ (no load)
Temperature fluctuation	≤ 0.5 ℃ (Note: if indicated according to GB/T5170.2-1996, the fluctuation is ≤ ± 1 ℃)
Resolution	temperature: 0.1 ℃

& nbsp; & nbsp; & nbsp; This equipment is a common temperature control equipment for button batteries

1. The outer wall material is painted with high-quality galvanized sheet; the inner wall material is made of high-quality mirror stainless steel plate

2. The air conditioning channel adopts FLOW THROW air supply mode; horizontal diffusion and vertical heat exchange arc circulation;

3.5 layers of anti-conductive coating tray, supported by pull-out guide rails (each layer of samples in the box does not exceed 20Kg);

4. Single hinged door (right hinge when facing the box), equipped with observation window;

5. The temperature setting range is 8~80 ℃ above zero;

6. control mode: anti-integral saturation PID,BTC balanced temperature control mode + DCC intelligent cooling control + DEC intelligent electrical control (temperature test equipment),BTHC balanced temperature control mode + DCC intelligent cooling control + DEC intelligent electrical control.
