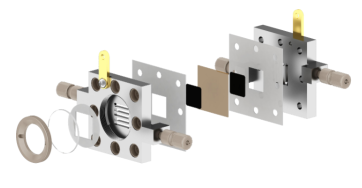

In-situ Raman MEA Electrolytic Cell
In-situ Raman MEA Electrolytic Cell

In-situ Raman MEA Electrolytic Cell

$2657.96
item_NoSpecificationsPrice
MA-EN-BE-009901MEA-TI-RM(14*14mm)$2657.96
✓ Selected: MA-EN-BE-009901 / MEA-TI-RM(14*14mm)
Quality Assurance
Factory Direct
Global Shipping

Details

Product Description & Recommendations

Membrane electrode electrolytic cell for in-situ Raman testing.

• Window material: quartz wafer or sapphire.

• Plate material: high-purity titanium plate; customized high-purity nickel plate is available upon experimental demands for superior corrosion resistance in alkaline solutions.

• Tab material: gold-plated copper to improve electrical conductivity and reduce resistance.

• Connector type: PEEK quick connector, 1/8 inch British standard; corrosion-resistant with enhanced internal shear force.

• Channel size: 14*14 mm, custom sizes are acceptable.

• Distance from window sheet to sample: less than 5 mm.
