Details
Battery cover (anode shell), contact spring, gasket cleaning recommendations:
1. Choose alkaline or neutral solvent (such as deionized water) for ultrasonic cleaning for 10-20 minutes;
2. Rinse with deionized water using ultrasonic cleaning 2-3 times, 1-2 minutes each time;
3. Dry
Positive shell cleaning recommendations (not recommended for ultrasonic cleaning, as it may cause scratching):
1. Soak in alkaline or neutral solvent (such as deionized water) for 10-20 minutes;
2. Rinse with deionized water 2-3 times, 1-2 minutes each time;
3. Dry
Note: Korode shell, shell cover, contact spring, and gasket have been cleaned with professional solvents before shipment and can be used directly without cleaning requirements.
Made of high-quality 304 stainless steel, suitable for battery production.
Other models can also be customized according to customer requirements.
Please note the gasket and contact spring model when placing an order:
| CR20** spacer-15.8*0.5 | 15.8*0.5mm |
| CR20** spacer-15.8*1.0 | 15.8*1.0mm |
| CR20** spacer-15.8*1.5 | 15.8*1.5mm |
| CR20** spacer-16.1*0.5 | 16.1*0.5mm |
| CR20** spacer-16.1*0.8 | 16.1*0.8mm |
| CR20** spacer-16.2*1.5 | 16.2*1.5mm |
| 15.4*1.1*0.3mm(Funnel shrapnel) | 15.4*1.1mm |
| 15.4*1.2*0.3mm(Funnel shrapnel) | 15.4*1.2mm |
| 15.4*1.3*0.3mm(Wave shrapnel) | 15.4*1.3mm |
| 13*1.8*0.3mm(Wave shrapnel) | 13*1.8mm |
| 20.0*1.6*0.3(Wave shrapnel) | 20.0*1.6mm |

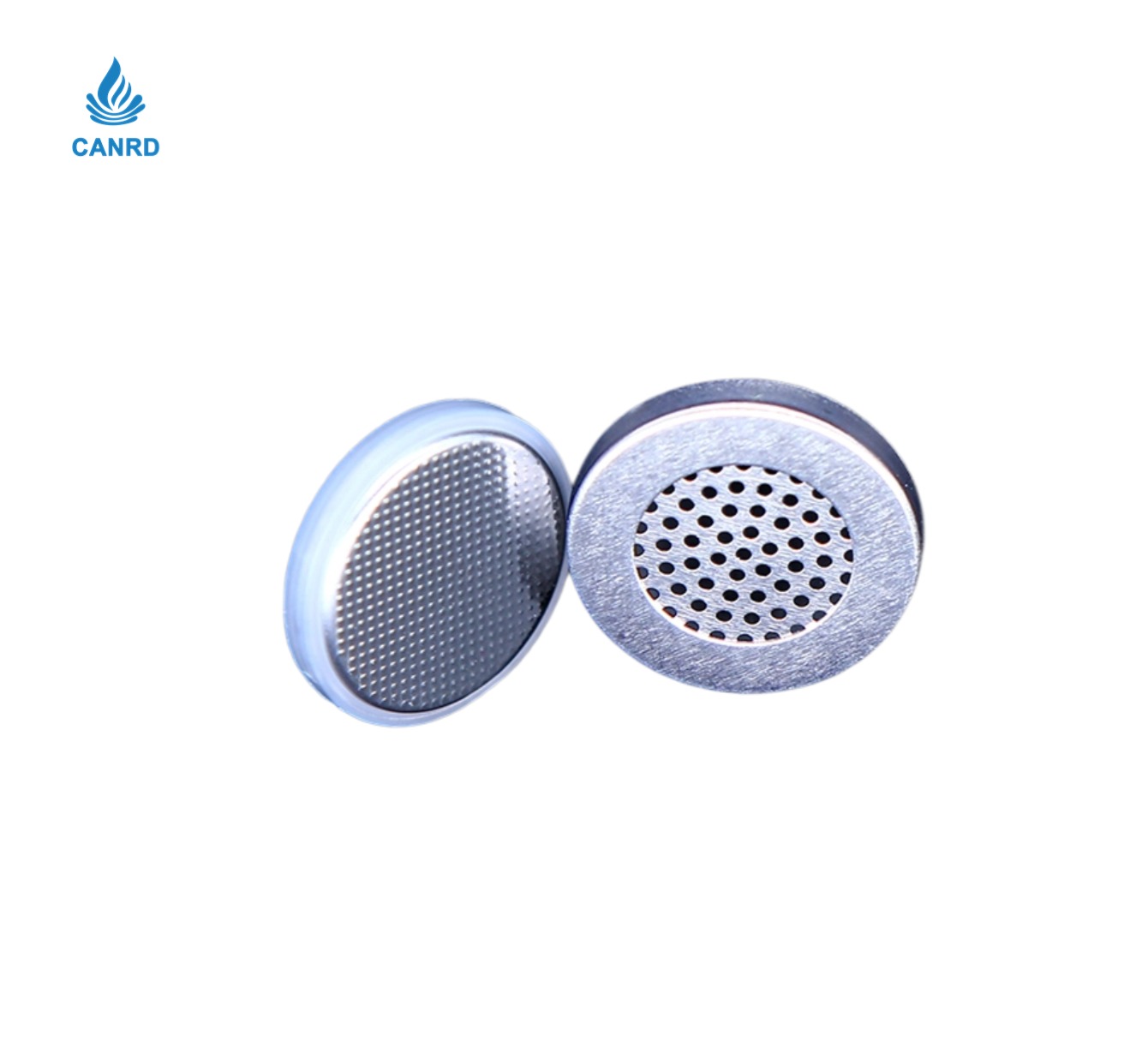

Mesh battery case
