Uniform-Pressure Solid-State Battery Test Mold – Rapid R&D Model (3A)
Uniform-Pressure Solid-State Battery Test Mold – Rapid R&D Model (3A)
Uniform-Pressure Solid-State Battery Test Mold – Rapid R&D Model (3A)
Uniform-Pressure Solid-State Battery Test Mold – Rapid R&D Model (3A)

Uniform-Pressure Solid-State Battery Test Mold – Rapid R&D Model (3A)

$628.25
Numéro d'article:CF-SOL-MOL3A102B
✓ Sélectionné: Uniform-Pressure Solid-State Battery Test Mold – Rapid R&D Model 3A
Assurance qualité
Vente directe usine
Livraison mondiale

Details

This product is developed for rapid, small-scale research on solid-state batteries, offering a compact and robust fixture design for laboratory environments. The mold features an outer dimension of φ88 mm with a height of 180 mm and a customizable working chamber of φ10 mm, allowing flexibility for varied experimental setups. Constructed with die steel poles and a ceramic core, it withstands maximum loads up to 5 tons and operating temperatures up to 200°C, supporting high-pressure testing up to 500 MPa (1000 MPa optional). These characteristics make it particularly suitable for evaluating new electrolytes, electrode materials, and interface stability in lithium battery research. The Canrd CF-SOL-MOL3A102B model is engineered to deliver consistent performance in pressing and assembling solid-state cell components, enabling efficient iteration of research prototypes.

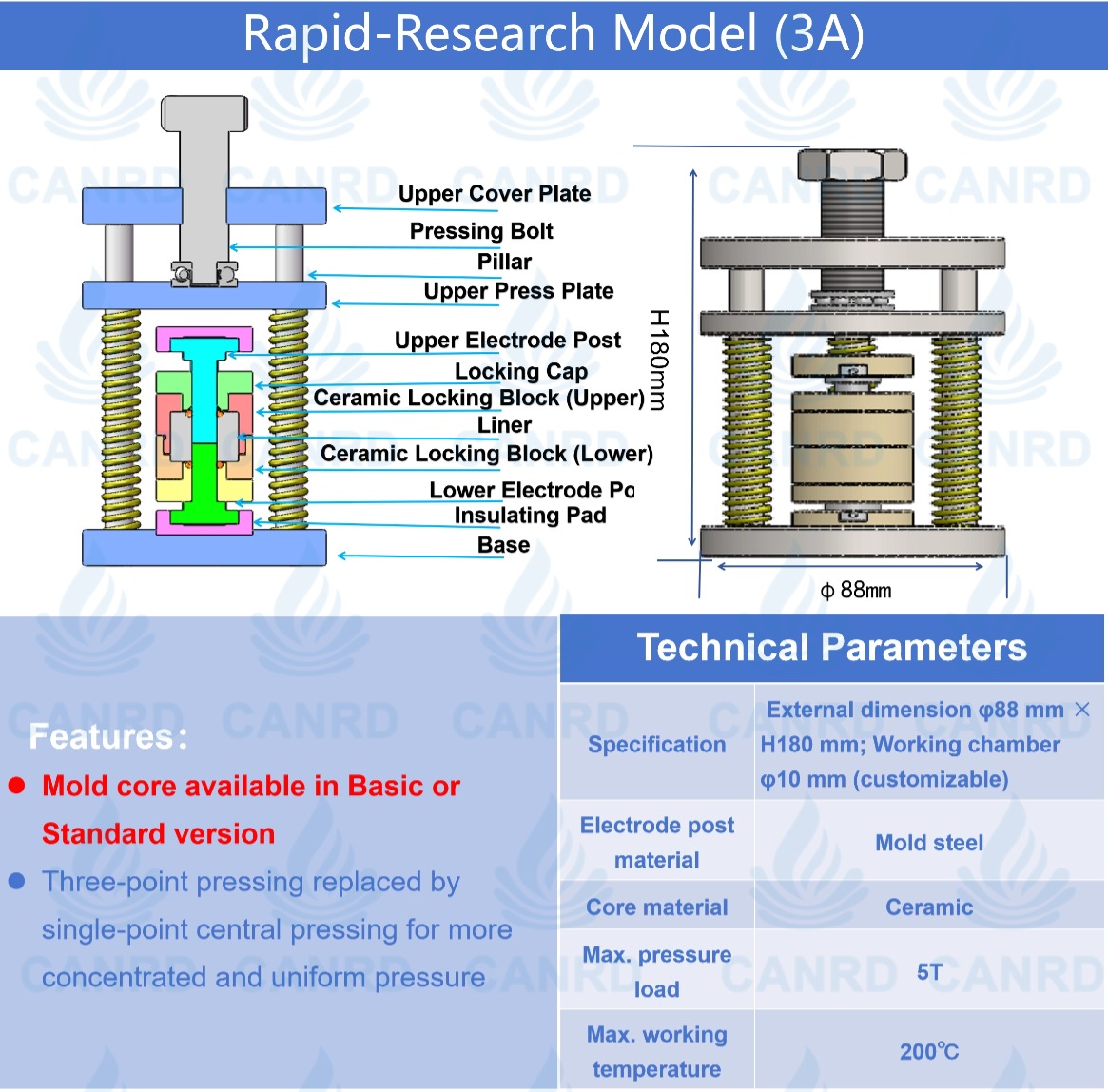

Technical Parameters:

1、Specification: Outer dimension φ88mm × H180mm, working chamber φ10mm (customizable)
2、Pole material: Die steel
3、Core material: Ceramic
4、Application: New energy, lithium battery research, laboratory R&D
5、Max load: 5T
6、Max working temperature: 200℃

Remarks:
Pole adopts φ10mm, 0.8T ≈ 100MPa, regular max pressure 500MPa (1000MPa optional)
