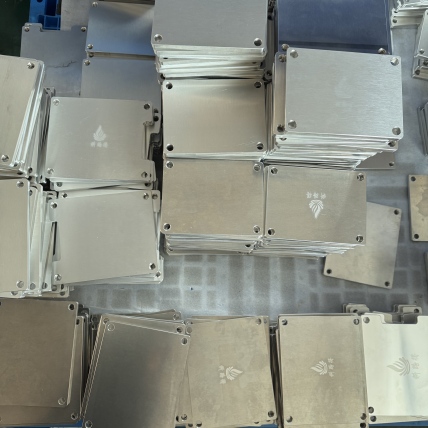

Pouch Cell Test Fixture (8 / 10 mm120 mm160 mm)

Name: Pouch Cell Test Fixture (8 / 10 mm*120 mm*160 mm)
Brand: Canrd
Price: 102.69 USD
Availability: InStock

$102.69

Nom

Spécifications

✓ Sélectionné: With Silicone Pad & Card Paper / 10 mm × 150 mm × 180 mm-Grooved

Quantité

Assurance qualité

Vente directe usine

Livraison mondiale

Details

Scope of Application

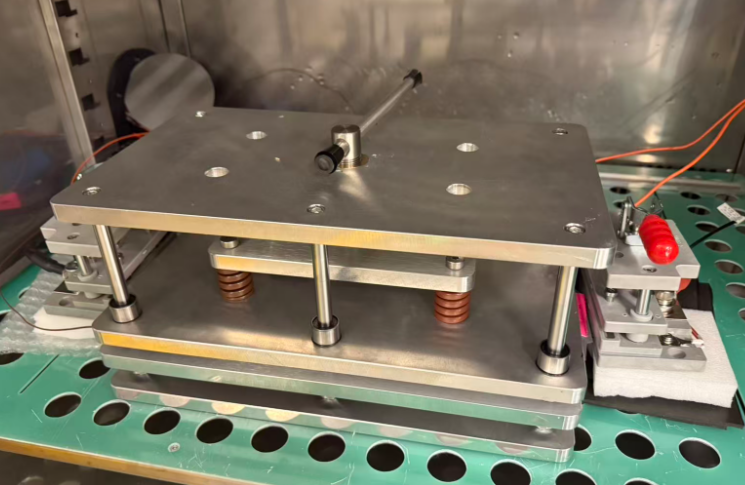

Primarily used for securing batteries during testing and production, and establishing stable and reliable electrical connections to ensure accurate data and process safety.

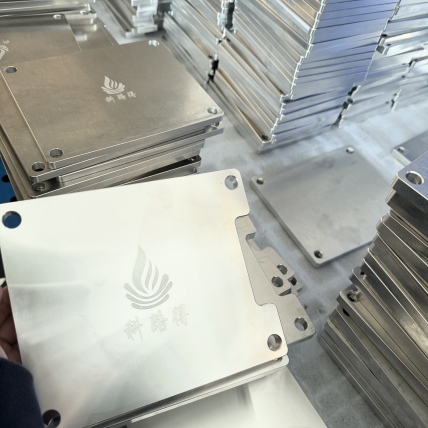

Aesthetic appearance with chamfered and deburred edges
Material

Special aluminum alloy; other materials can be customized according to pressure requirements.
Grooved version is suitable for batteries with gas pouch testing.
Standard pressure: 300 kg

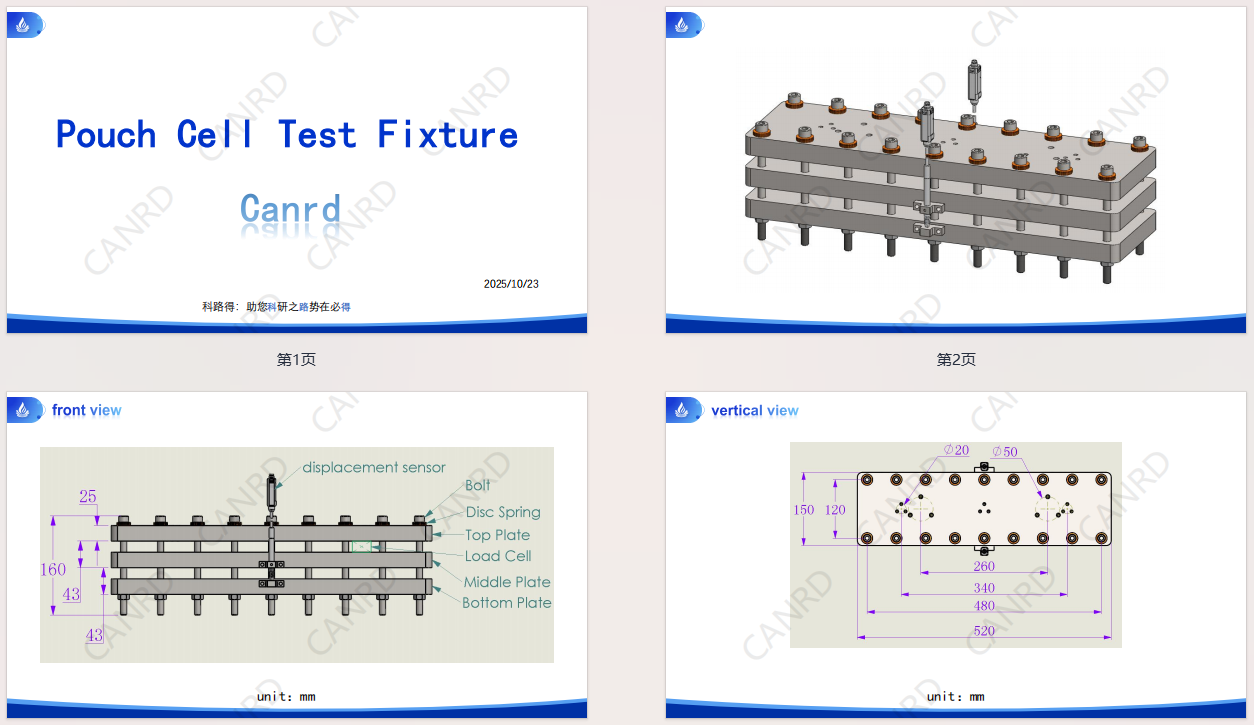

Overall Dimensions

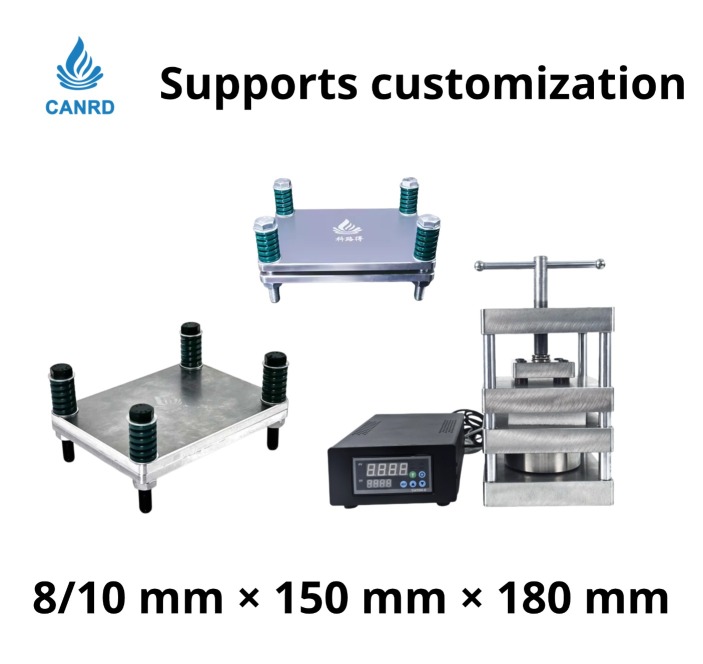

8×90×107mm, 8×120×160mm, 8×150×180mm, 10×120×160mm, 10×150×180mm
Common Spring Specifications

Item No.	Product Name	Specification	Unit Price	Unit	Material

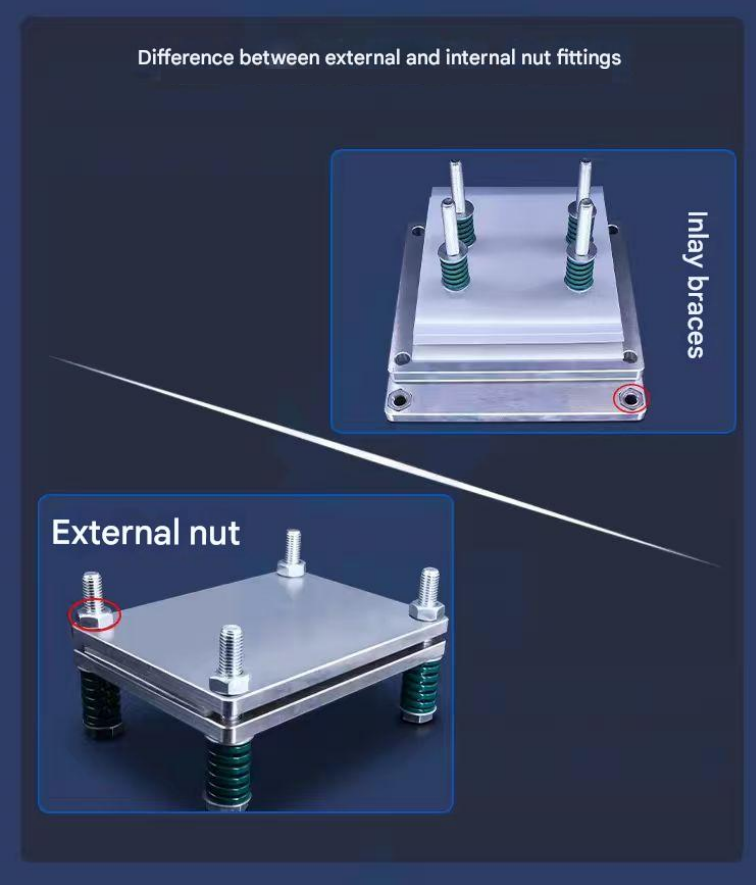

CF-TES-SPR08150180A	Pouch Cell Test Fixture (with Silicone Pad & Card Paper)	8 mm × 150 mm × 180 mm	78.5	set	External Nut Design, Al 6061
CF-TES-SPR10150180D	Pouch Cell Test Fixture (with Silicone Pad & Card Paper)	10 mm × 150 mm × 180 mm	81.6	set	External Nut Design, Al 6061
CF-TES-SPR10150180B	Pouch Cell Test Fixture (with Silicone Pad & Card Paper)	10 mm × 150 mm × 180 mm	87.6	set	Embedded Thread Insert, Al 6061
CF-TES-SPR10150180C	Grooved Pouch Cell Test Fixture (with Silicone Pad & Card Paper)	10 mm × 150 mm × 180 mm	102.7	set	Embedded Thread Insert, Al 6061
CF-TES-SPR08150180A-J01-003A/004A	Silicone Pad + Card Paper	150 mm × 150 mm	18.1	set	—
CF-TES-SPR08150180A-J01-003A	Silicone Pad	2 × (150 mm × 150 mm)	15.1	set (2 pcs)	Natural Silicone
CF-TES-SPR08150180A-J01-004A	Card Paper	0.25 × (150 mm × 150 mm)	12.1	set (40 pcs)	White Card Paper
CF-TES-SPR08120160A-S01-000A	M10 × 80 Screw, Green Spring (Ø20 × 30) with Nut & Washer	M10 × 80 + Ø20 × 30	13.5	set (4 pcs)	—
CF-BZJ-000018	Hex Head Screw	M10 × 80 (Full Thread)	9.7	set (20 pcs)	—
CF-BZJ-000017	Green Spring	ID 11 × OD 20 × L 30 mm	50.7	set (20 pcs)	—
CF-BZJ-000021	M10 Flat Washer	M10 × 1	12.1	set (100 pcs)	—
CF-BZJ-000022	M10 × 8 Nut	M10 × 8	10.9	set (40 pcs)	External Nut
CF-BZJ-000039	M10 × 5 Nut	M10 × 5	10.9	set (40 pcs)	Embedded Nut

No.	Specification (mm)	Material	Standard Max. Pressure (kg)	Compatible Cell Size #1 (mm)	Compatible Cell Size #2 (mm)	Remarks
1	8 × 90 × 107 mm	Aluminum Alloy	300	≤10 × 65 × 105 mm	≤10 × 80 × 90 mm	Pressure customizable
2	8 × 120 × 160 mm	Aluminum Alloy	300	≤25 × 128 × 118 mm	≤25 × 85 × 158 mm	Pressure customizable
3	10 × 120 × 160 mm	Aluminum Alloy	300	≤23 × 128 × 118 mm	≤23 × 85 × 158 mm	Pressure customizable
4	8 × 150 × 180 mm	Aluminum Alloy	300	≤25 × 148 × 148 mm	≤25 × 85 × 158 mm	Pressure customizable
5	10 × 150 × 180 mm	Aluminum Alloy	300	≤23 × 148 × 148 mm	≤23 × 115 × 178 mm	Pressure customizable
