Lithium-ion Battery Cathode Electrode Sheet (NCM622 Lithium Nickel Cobalt Manganese Oxide SY25)
Lithium-ion Battery Cathode Electrode Sheet (NCM622 Lithium Nickel Cobalt Manganese Oxide SY25)
Lithium-ion Battery Cathode Electrode Sheet (NCM622 Lithium Nickel Cobalt Manganese Oxide SY25)
Lithium-ion Battery Cathode Electrode Sheet (NCM622 Lithium Nickel Cobalt Manganese Oxide SY25)
Lithium-ion Battery Cathode Electrode Sheet (NCM622 Lithium Nickel Cobalt Manganese Oxide SY25)

Lithium-ion Battery Cathode Electrode Sheet (NCM622 Lithium Nickel Cobalt Manganese Oxide SY25)

$302.04
✓ Sélectionné: Customized / 5 Pcs / Pack
Assurance qualité
Vente directe usine
Livraison mondiale

Details

This product is designed for lithium-ion battery research and development, specifically as a cathode electrode sheet based on NCM622 (LiNi₀.₆Co₀.₂Mn₀.₂O₂) single-crystal active material. It is engineered for consistent electrochemical testing, with recommended use of 622 deduction electrolyte or ternary electrolyte (KLD-1230C) to achieve reliable performance. The electrode sheet requires rolling at an appropriate compacting pressure and vacuum baking at 105°C for 4 hours prior to use. Proper storage in vacuum-sealed or glove-box conditions is critical, especially for high-nickel materials, to prevent increased internal resistance. Single-sided sheets may exhibit curling after rolling; fold marks from flattening and packaging should be noted. This product is commonly employed in coin-cell or pouch-cell assembly for evaluating NCM cathode performance under controlled test protocols, with a recommended sealing pressure of 1300 psi during constant-current charging.
Canrd 10*10cm 5 sheets/pack   Coating
NO. Electrode Name Model Main Material Active Material Capacity (mAh/g) Loading Areal Density (mg/cm²) Areal Capacity (mAh/cm²)
1 NCA Electrode SY51 NCA-S (Nickel Cobalt Aluminum Oxide) 195  94.50% 17.66  3.25
2 Ni90 Electrode SY41 Ni90 Single Crystal NCM 195  94.50% 9.50  1.75
3 NCM811 Electrode SY33 NCM811 Single Crystal 188  94.50% 9.20  1.63
4 NCM811 Electrode SY34 — 188  94.50% 21.50  3.82

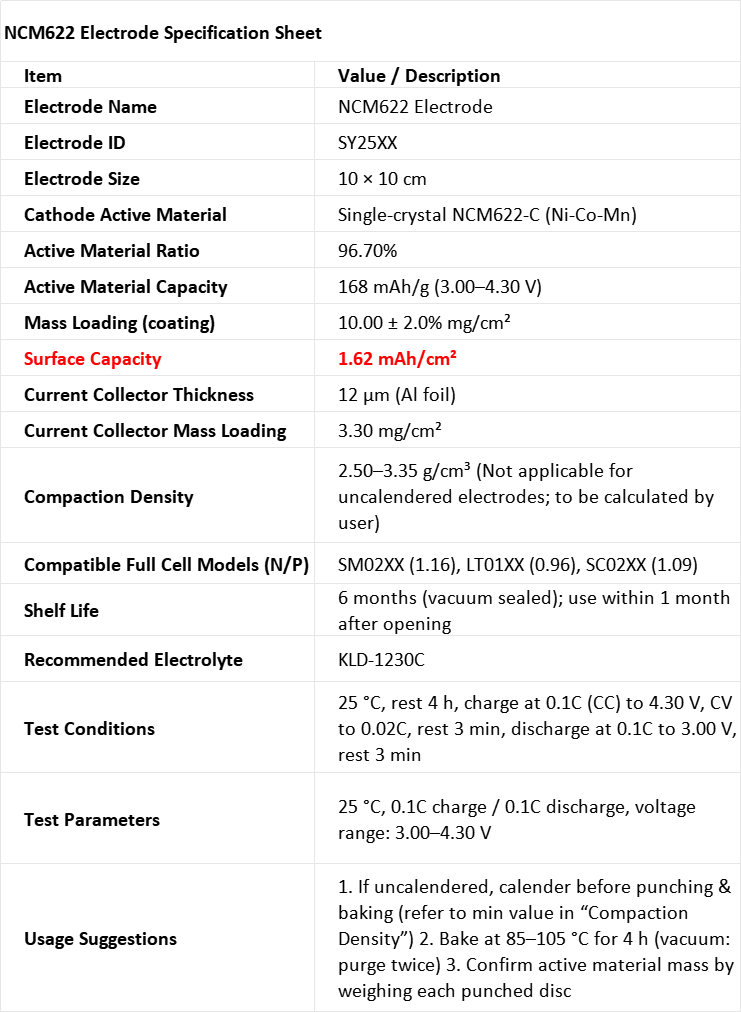

5 NCM622 Electrode SY25 NCM622 Single Crystal-B 168  96.70% 10.00  1.62
6 NCM622 Electrode SY24 — 168  96.70% 21.60  3.51
7 NCM523 Electrode SY15 NCM523 165  94.00% 19.70  3.06
8 NCM523 Electrode SY13 NCM523 165  94.00% 10.50  1.63
9 LCO Electrode LC02 High Voltage Lithium Cobalt Oxide-Z-4.45V 178  96.40% 10.00  1.72
10 LRM Electrode FL01 Lithium-rich Manganese-based-E 280  95.00% 5.96  1.59
11 Graphite Electrode SM02 Natural Graphite (Standard)-A 340  95.70% 5.80  1.89
12 Fast Charging Graphite Electrode SM04 Fast Charging Graphite-B 350  96.70% 5.60  1.90
13 Silicon Carbon Electrode SC02 Silicon Carbon Anode 1800 (Porous Carbon Deposited Silicon) 420  95.00% 4.80  1.92
14 NFM Electrode NT02 Sodium Nickel Iron Manganese Oxide 127  95.50% 12.27  1.49
15 NFM Electrode NT03 — 127  95.50% 8.00  0.97
16 Hard Carbon Electrode YT02 Imported Hard Carbon (5 μm) 300  95.50% 6.00  1.72
17 LFP Electrode LF07 Lithium Iron Phosphate
(High Compaction Density)		 150  91.50% 12.30  1.69
18 LNMO Electrode NM01 High Voltage Lithium Nickel Manganese Oxide-B 130  96.00% 7.50  2.00
19 NFPP Electrode NF01 Sodium Iron Phosphate Pyrophosphate 100  93.50% 15.30  1.43
20 Vanadium Pentoxide Electrode VO02 Vanadium Pentoxide 300  80.00% 5.00  1.20
21 Manganese Dioxide Electrode MO01 Manganese-based or Vanadium-based Material 100  80.00% 5.00  /
22 Zinc Negative Electrode ZA01 Pure Zinc Powder / Alloy Zinc Powder / 70.0%–96.0% 5.0–15.0 /

MOQ for Custom Small Electrode Sheets: 10*10cm/pcs，5cs/pack，1pack

To place an order or request a quotation, please Contact Us.



Storage conditions (vacuum sealing or using self-sealing bags in a glove box, especially for high-nickel and sodium electrode materials, improper storage may lead to increased internal resistance).

Fold marks: Single-sided electrode sheets may curl after rolling, and flattening and packaging may cause fold marks.

The electrode sheets are made of nickel-cobalt-manganese NCM622-C (single crystal), and the electrolytes used during testing are 622 deduction electrolyte and ternary electrolyte (KLD-1230C).

The electrode sheets need to be rolled (it is recommended to roll according to the lowest parameter range of the corresponding electrode sheet compacting), baked at 105°C for 4 hours after punching, left to stand for 8 hours after injection, and the positive electrode sheet needs to be pressure-sealed at 0.02C during constant current charging testing, with a sealing pressure of 1300 psi.

This product must be tested in accordance with the test methods and electrolytes recommended by

Canrd to achieve the corresponding performance.Since the test method and electrolyte have a great

influence on the performance of the battery, any change in the test method or electrolyte may reduce

the performance of the pole piece; be sure to check this information before purchasing.

622 SY2501 Test data
