High-Pressure Constant Flow Pump

High-Pressure Constant Flow Pump

$2174.69
Numéro d'article:MA-EN-BE-007301

✓ Sélectionné: Model HP300-01
Assurance qualité
Vente directe usine
Livraison mondiale

Details

Product Description & Recommendations

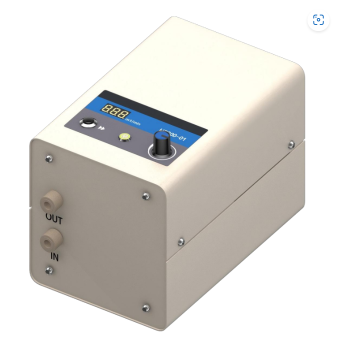

Model HP300-01 High-pressure Constant Flow Pump is a liquid delivery product with high pressure resistance and large flow rate, specially developed by our company for electrochemical testing.

It adopts knob adjustment mode to quickly set the required flow rate. A full-speed button enables one-touch activation for rapid pipeline filling or flushing. The external interface adopts 1/4-28 UNF thread design, compatible with most pipeline connection requirements. Multi-channel expansion is available upon customer request.

Technical Parameters

• Flow Rate Range: 0~300 ml/min

• Flow Resolution: 1 ml/min

• Pressure Resistance Range: 0~0.8 MPa

• Pipeline Fitting: 1/4-28 UNF

• Power Supply: AC 220V; 50Hz/60Hz

• Rated Voltage: AC 24V

• Operating Environment: Temperature 0~40°C; Humidity ≤80%

Notes:

  1. Rinse the pipeline thoroughly with clean water after use.
  2. After 3000 hours of operation, the pump must be returned to the factory for maintenance.
