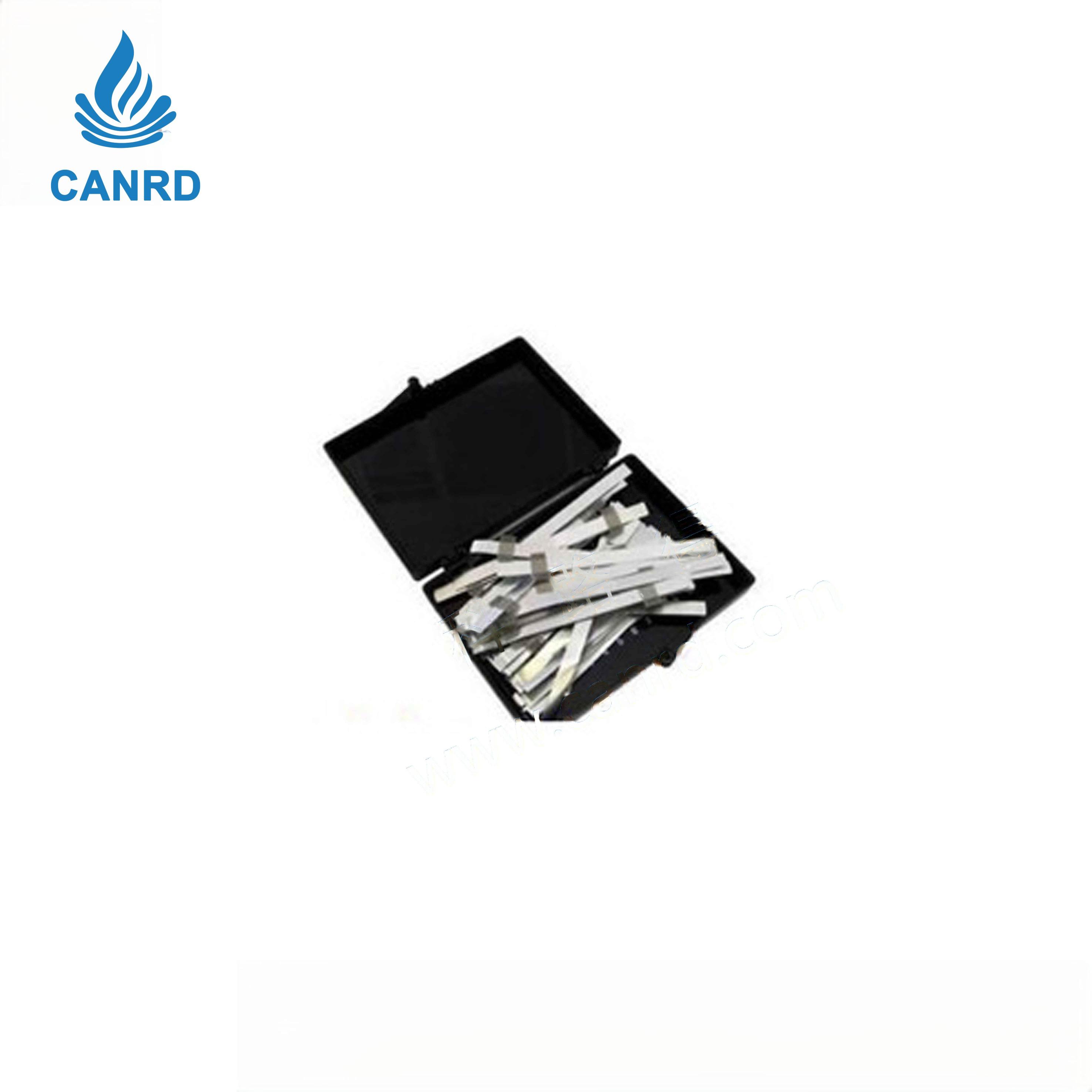

Aluminum Battery Tabs

Aluminum Battery Tabs

$36.25
✓ Sélectionné: 0.08*2*30, 0.08*4.5 white glue / 100pcs/box
Assurance qualité
Vente directe usine
Livraison mondiale

Details

These aluminum tabs from Canrd are developed for use in lithium-ion and nickel-based batteries, including both cylindrical and pouch cell configurations. Designed with a white glue coating featuring a three-layer structure—surface layer melting point of 136–138°C and core layer at 165°C—they offer excellent resistance to electrolyte and reliable sealing performance. The tabs are available in a range of dimensions and adhesive specifications to accommodate different assembly requirements. Suitable for experimental and commercial battery production, these components support consistent electrical connection and long-term durability in energy storage applications.

1. This product is suitable for the production of lithium-ion batteries and nickel batteries, cylindrical and soft pack batteries.

Excellent resistance to electrolyte and sealing performance.

The white adhesive features a three-layer structure, with a surface layer melting point of 136–138°C and a core layer melting point of 165°C.

This product is suitable for the manufacturing of lithium-ion and nickel-based batteries, including cylindrical and pouch cell types.

Item Test Item Inspection Standard

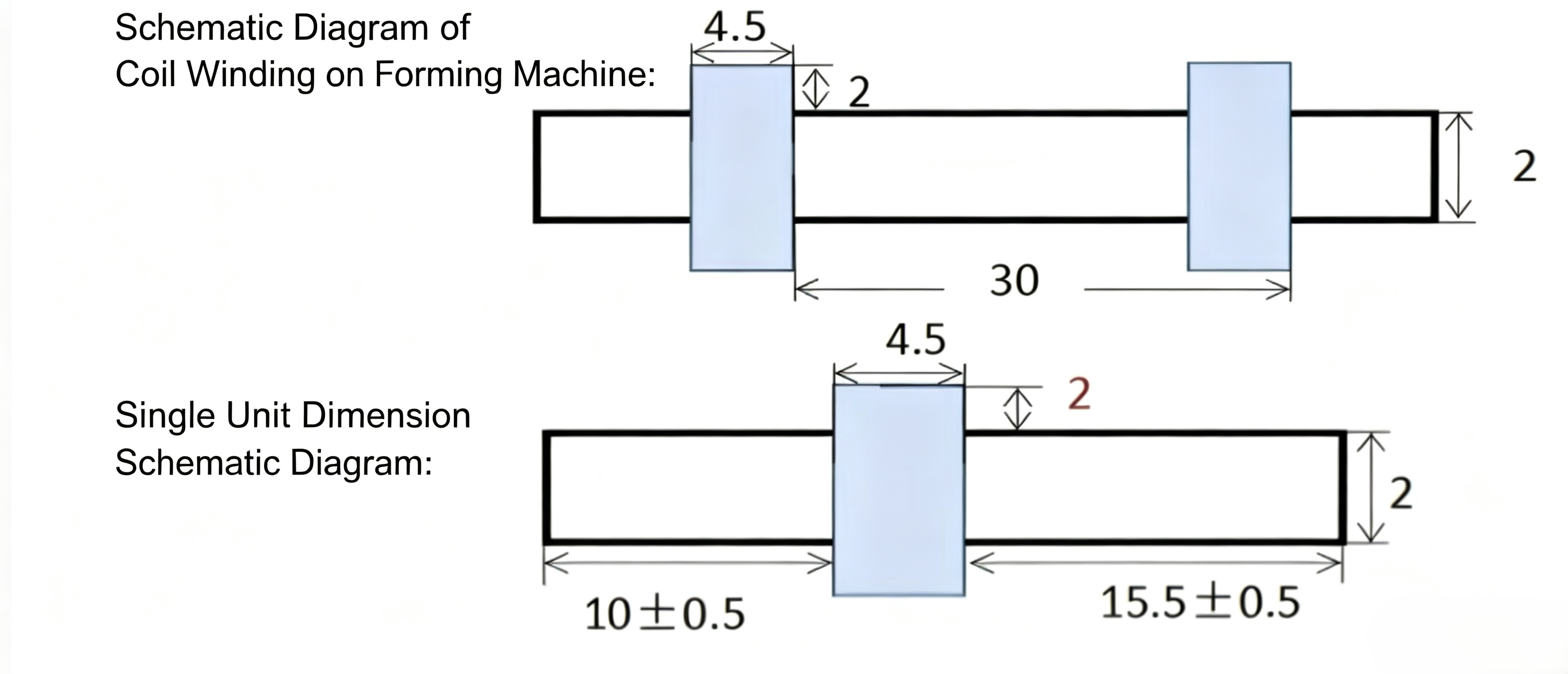

Tab Specification 0.08*2*30, 0.08*4.5 white adhesive
Tab Fixture Fixture 2*4; glue groove 4.5mm
Tab Metal Strip Thickness 0.08±0.01mm, Width 2±0.1mm
Tab Tab Adhesive Thickness 0.08±0.01mm, Height 4.5+0.5mm, white adhesive
Tab Total Length 30±1.0mm (Key Item)
Tab Head Section 10±0.5mm (Key Item)
Tab Tail Section 15.5±0.5mm (Key Item)
Tab Shoulder Width 2±0.3mm (Key Item)

Item Test Item Inspection Standard Remarks

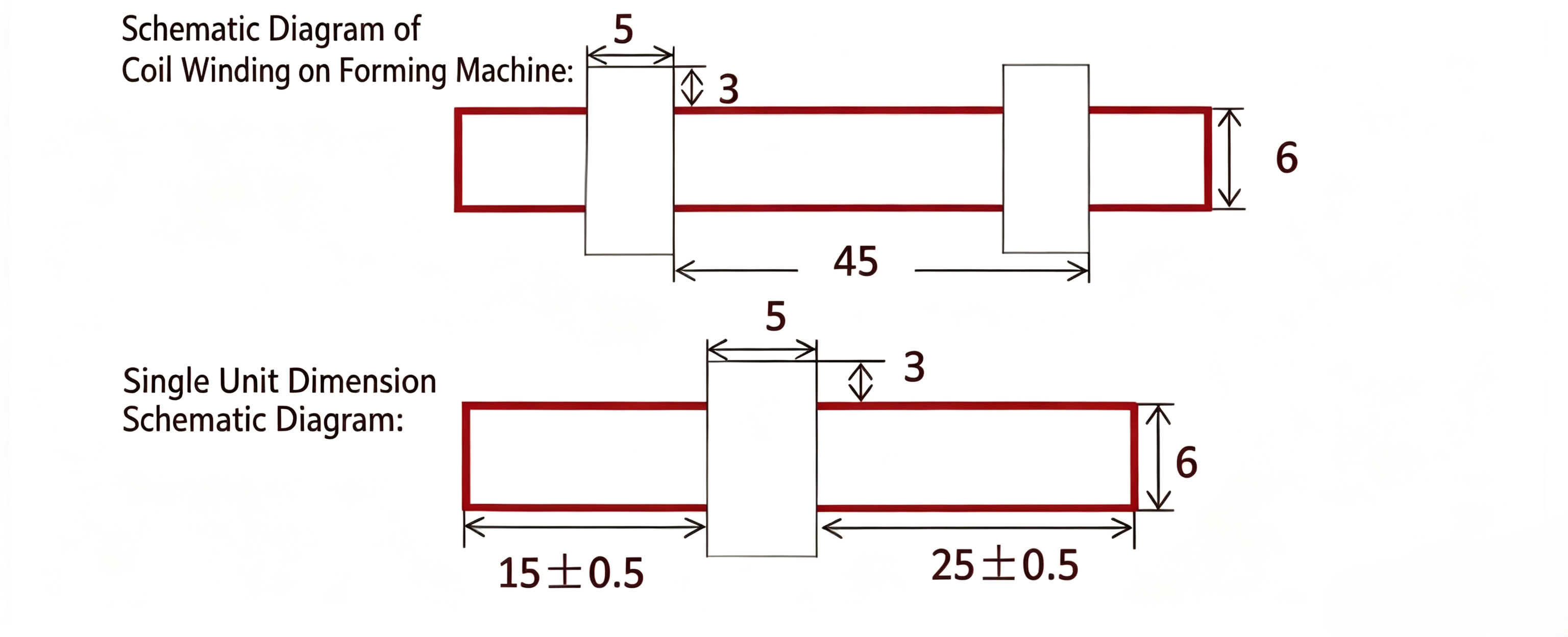

Tab Specification 0.08*6*45, 0.1*5 white adhesive Appearance: No scratches, bending or burrs on product surface.
Soak in electrolyte at 85°C for 24h, tab adhesive shall not fall off.
After peeling, bonding surface is milky white with tensile force retained.
Tab Fixture Fixture 6*6; glue groove 5.0mm Appearance: No scratches, bending or burrs on product surface.
Soak in electrolyte at 85°C for 24h, tab adhesive shall not fall off.
After peeling, bonding surface is milky white with tensile force retained.
Tab Metal Strip Thickness 0.08±0.01mm, Width 6±0.1mm Appearance: No scratches, bending or burrs on product surface.
Soak in electrolyte at 85°C for 24h, tab adhesive shall not fall off.
After peeling, bonding surface is milky white with tensile force retained.
Tab Tab Adhesive Thickness 0.1±0.01mm, Height 5+0.5mm, white adhesive Appearance: No scratches, bending or burrs on product surface.
Soak in electrolyte at 85°C for 24h, tab adhesive shall not fall off.
After peeling, bonding surface is milky white with tensile force retained.
Tab Total Length 45±1.0mm (Key Item) Appearance: No scratches, bending or burrs on product surface.
Soak in electrolyte at 85°C for 24h, tab adhesive shall not fall off.
After peeling, bonding surface is milky white with tensile force retained.
Tab Head Section 15±0.5mm (Key Item) Appearance: No scratches, bending or burrs on product surface.
Soak in electrolyte at 85°C for 24h, tab adhesive shall not fall off.
After peeling, bonding surface is milky white with tensile force retained.
Tab Tail Section 25±0.5mm (Key Item) Appearance: No scratches, bending or burrs on product surface.
Soak in electrolyte at 85°C for 24h, tab adhesive shall not fall off.
After peeling, bonding surface is milky white with tensile force retained.
Tab Shoulder Width 3±0.3mm (Key Item) Appearance: No scratches, bending or burrs on product surface.
Soak in electrolyte at 85°C for 24h, tab adhesive shall not fall off.
After peeling, bonding surface is milky white with tensile force retained.

Item Test Item Inspection Standard

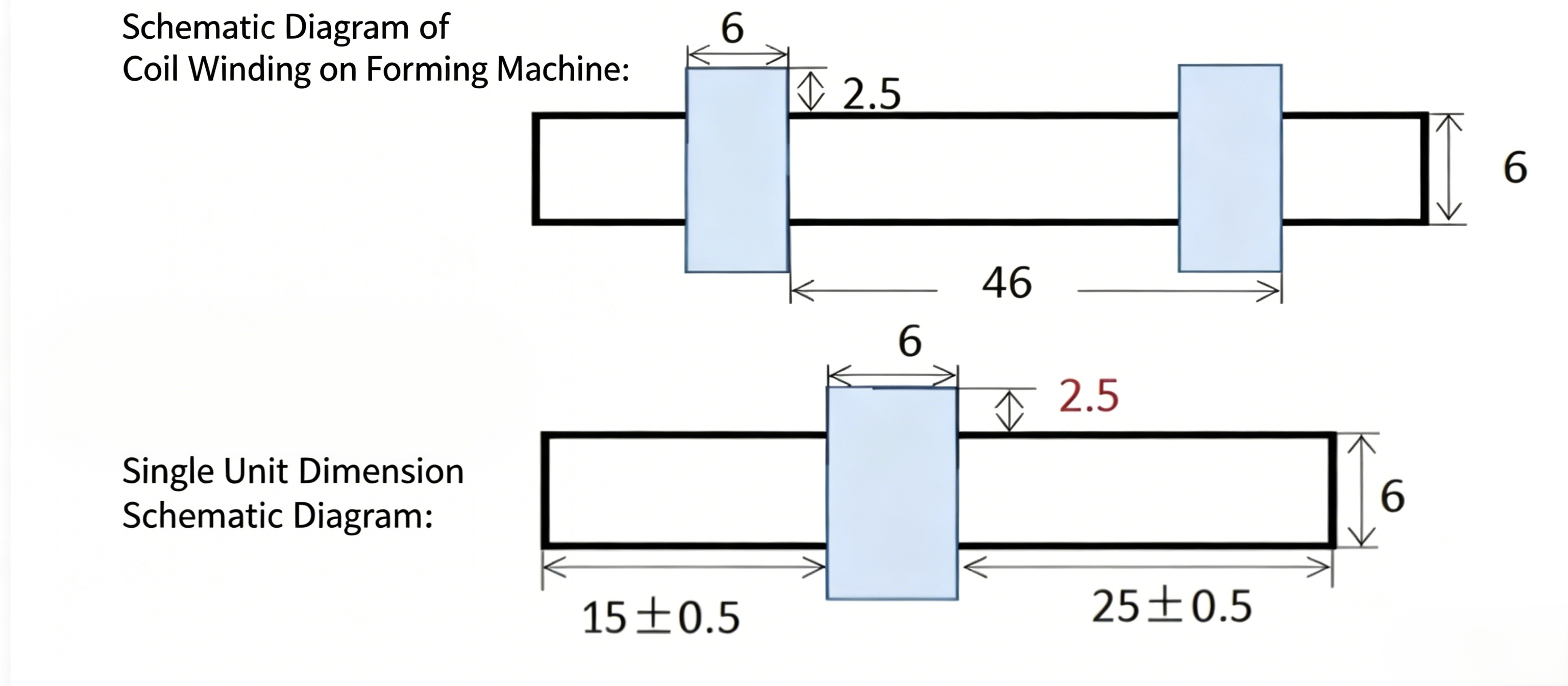

Tab Specification 0.1*6*46, 0.1*6 black adhesive
Tab Fixture Fixture 6*5; glue groove 6.0mm
Tab Metal Strip Thickness 0.1±0.01mm, Width 6±0.1mm
Tab Tab Adhesive Thickness 0.1±0.01mm, Height 6+0.5mm, black adhesive
Tab Total Length 46±1.0mm (Key Item)
Tab Head Section 15±0.5mm (Key Item)
Tab Tail Section 25±0.5mm (Key Item)
Tab Shoulder Width 2.5±0.3mm (Key Item)

Item Test Item Inspection Standard
Tab Specification 0.2*15*45, 0.1*5 white adhesive
Tab Fixture Fixture 15*10; glue groove 5.0mm
Tab Tab Adhesive Thickness 0.1±0.01mm, Height 5+0.5mm, white adhesive
Tab Total Length 45±1.0mm (Key Item)
Tab Head Section 15±0.5mm (Key Item)
Tab Tail Section 25±0.5mm (Key Item)
Tab Shoulder Width 5±0.5mm (Key Item)

Item Test Item Inspection Standard

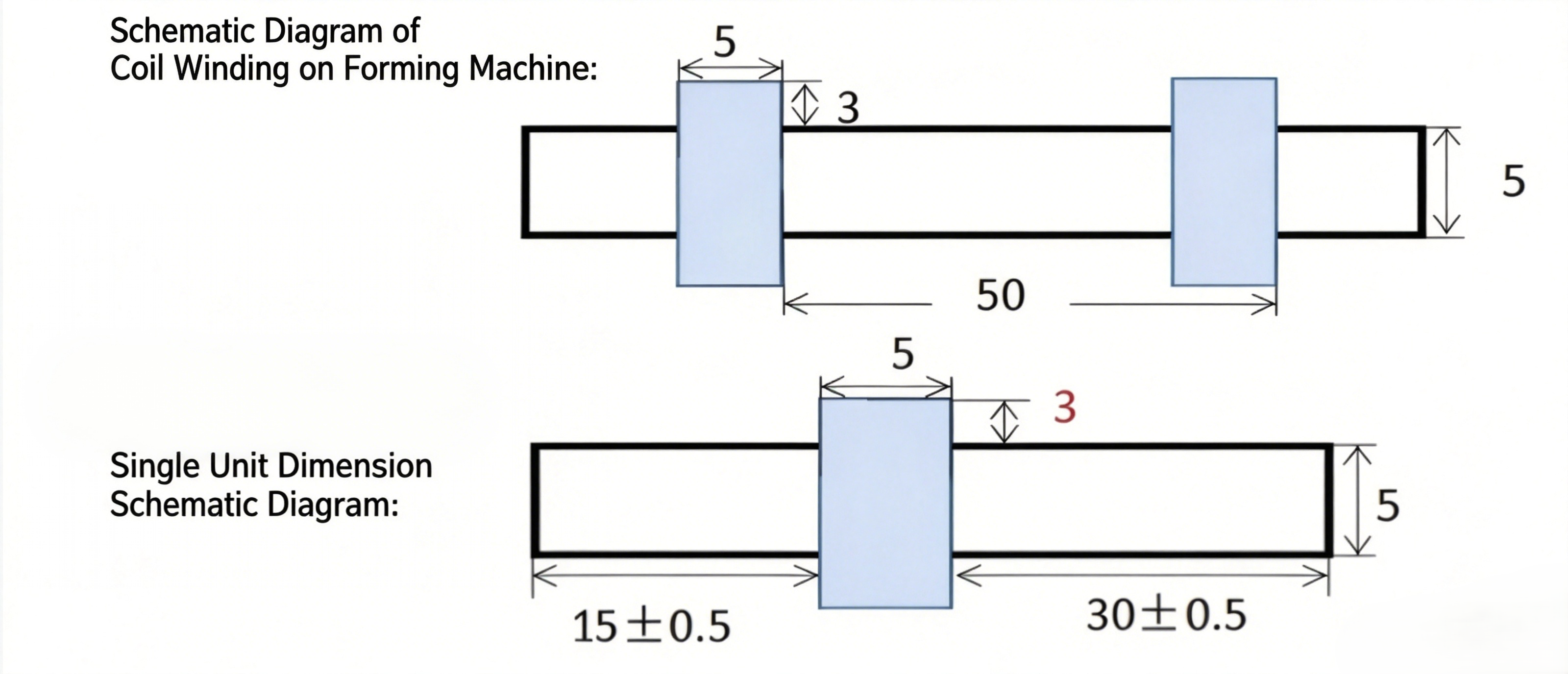

Tab Specification 0.1*5*50, 0.1*5 white adhesive
Tab Fixture Fixture 5*6; glue groove 5.0mm
Tab Metal Strip Thickness 0.1±0.01mm, Width 5±0.1mm
Tab Tab Adhesive Thickness 0.1±0.01mm, Height 5+0.5mm, white adhesive
Tab Total Length 50±1.0mm (Key Item)
Tab Head Section 15±0.5mm (Key Item)
Tab Tail Section 30±0.5mm (Key Item)
Tab Shoulder Width 3±0.3mm (Key Item)

Item Test Item Inspection Standard

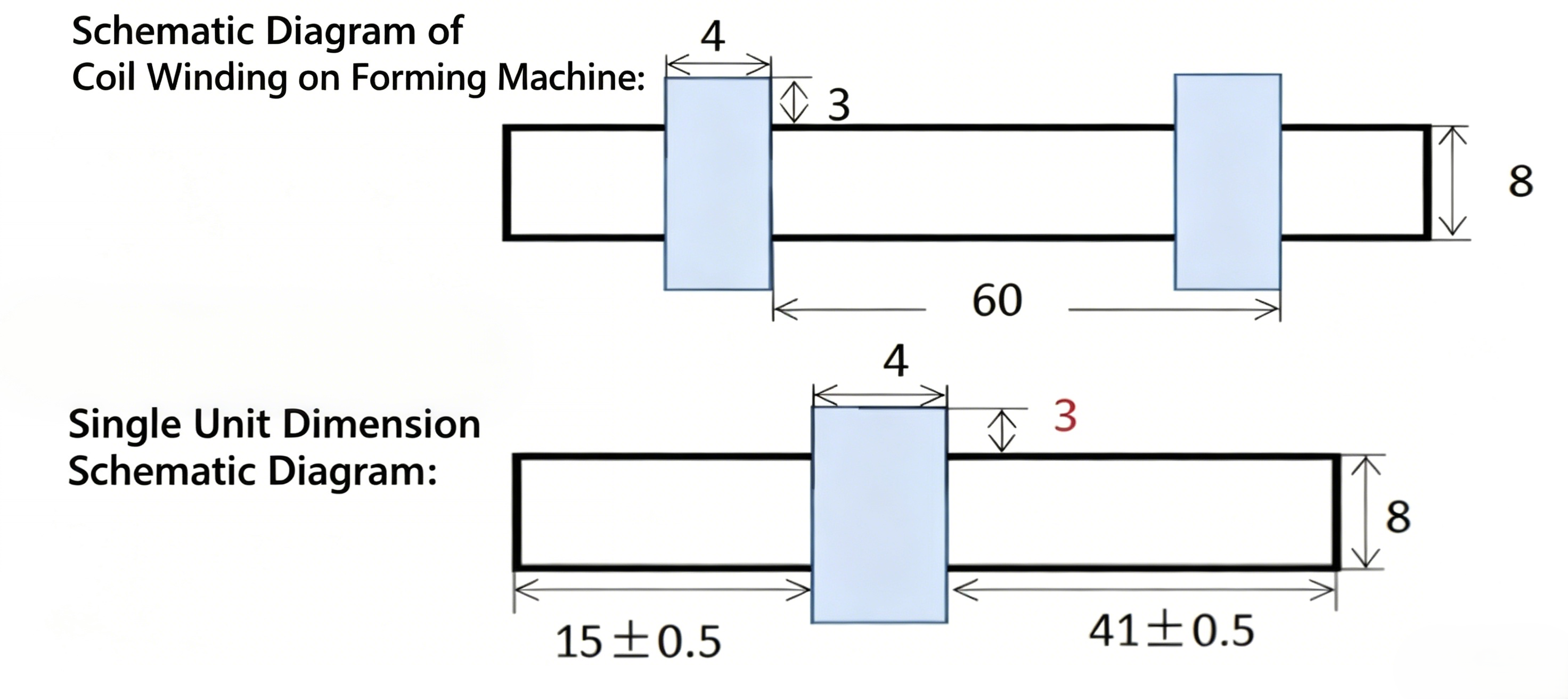

Tab Specification 0.1*8*60, 0.1*4 white adhesive
Tab Fixture Fixture 8*6; glue groove 4.0mm
Tab Metal Strip Thickness 0.1±0.01mm, Width 8±0.1mm
Tab Tab Adhesive Thickness 0.1±0.01mm, Height 4+0.5mm, white adhesive
Tab Total Length 60±1.0mm (Key Item)
Tab Head Section 15±0.5mm (Key Item)
Tab Tail Section 41±0.5mm (Key Item)
Tab Shoulder Width 3±0.3mm (Key Item)

Aluminum Tabs

Product Advantages:

Tab Purity (%) ≥99.3%
Tab Hardness (HV) ＜25HV
Tab Material Grade 1A30(GB), A1N30(JIS)
Tab Material Positive Aluminum
Tab Width (mm) /
Tab Tensile Strength (N) ≥10N

Packaging, shipping and storage instructions:

  1. Packaging material: special coil packaging
  2. Storage conditions: ordinary indoor warehouse: temperature 5-40°C, relative humidity ≤95%
  3. Storage period: 2 years from the date of production
  4. Hazard level: Level 4 according to "Hazardous Goods Classification and Operation Regulations"
  5. Packaging class level: Level Ill according to "Packaging Class Level"

This product is suitable for the manufacture of lithium-ion batteries and nickel batteries, ylindrical and pouch batteries
