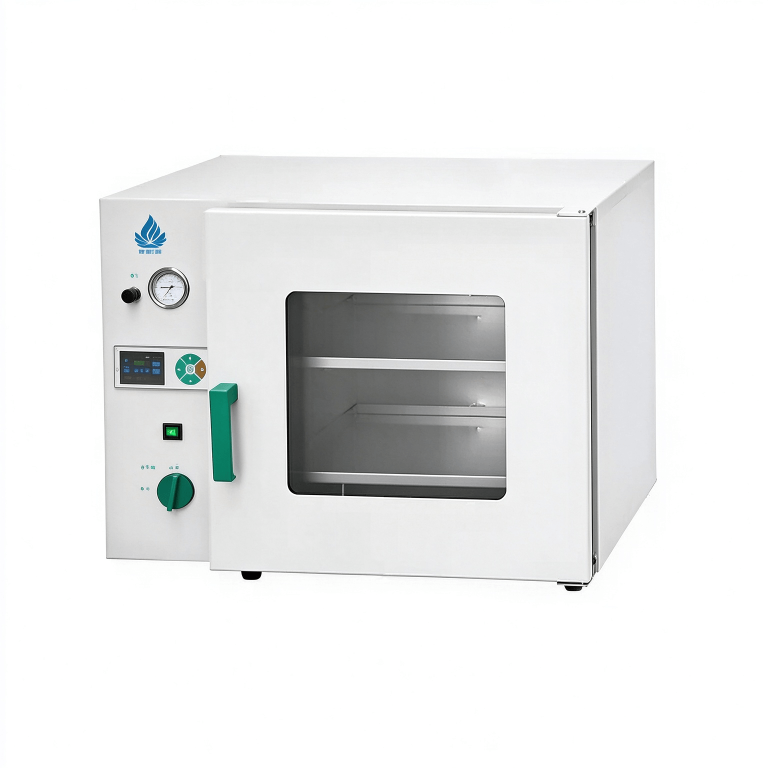

Vacuum Drying Oven (90 L)

Name: Full-Cell Contract Manufacturing - Customer A
Brand: Canrd

Model：

CAN-OVE01-6094DV

Date issued：

2026-10-27 20:16:14

Equipment Size：

L815mm*W660mm*H665mm

Weight：

145kg

Details

Especificaciones

Detalles

Internal Chamber Dimension	L450 × W450 × H450 mm
External Dimension	L815 × W660 × H665 mm
Rated Power	1400 W
Operating Environment	Standard ambient conditions
Chamber Volume	90 L
Weight	145 kg
Power Supply	AC 220 V, 50 Hz

Temperature Fluctuation	±1°C
Timer Range	0~9999 min
Loading Shelves	4 pcs (2 shelves with independent temperature control)
Temperature Control Range	RT+10 ~ 250°C
Temperature Resolution	0.1°C

It is suitable for drying and heat treatment of items under vacuum conditions in industrial and mining enterprises, medical colleges and schools, and scientific research institutes.

The square-shaped working chamber maximizes the usable area. The tempered and bulletproof double-layer glass door provides a clear, unobstructed view of the items inside the chamber.
The door closure tightness is adjustable, and the one-piece silicone rubber door seal ensures a high vacuum level inside the chamber.
Equipped with a microcomputer intelligent temperature controller, it features dual digital displays for set and measured temperature, together with PID self-tuning, providing accurate and reliable temperature control.
The heating power ratio is freely adjustable, ensuring temperature control without overshoot.
Shelf-type heating enables fast heating-up.
Timer function, timing range: 0~9999 min.
