Sodium-Ion Solid-State Electrolyte Powder NZSPO 1–5 μm (Na3Zr2Si2PO12)

Name: Sodium-Ion Solid-State Electrolyte Powder NZSPO 1–5 μm (Na3Zr2Si2PO12)
Brand: Canrd
Price: 72.49 USD
Availability: InStock

$72.49

Número de artículo:MA-EN-SS-013101

Especificaciones

✓ Seleccionado: 20g

Cantidad

Garantía de calidad

Venta directa de fábrica

Envío mundial

Details

Descripción general

Detalles

This product is designed for research and development in sodium-ion solid-state batteries, offering a NASICON-structured electrolyte powder with the composition Na₃Zr₂Si₂PO₁₂ (abbreviated NZSPO or NZSP). With a median particle size around 2 µm and a low moisture content below 0.025 %, it provides a consistent starting material for fabricating dense ceramic pellets via dry pressing and sintering at approximately 1150 °C. The material exhibits an ionic conductivity exceeding 1.1 mS/cm at room temperature, measured by EIS on sintered pellets, supporting its use as a solid electrolyte in all-solid-state sodium battery architectures. The fine, uniform white powder facilitates dispersion and processing, making it suitable for studies on electrolyte performance, interface engineering, and cell assembly. Storage in sealed, dry conditions is recommended to preserve its properties over a six-month shelf life.

Test Item	Standard Value	Unit	Test Method
Appearance	White powder, uniform, no visible impurities	Pass	Visual inspection
Chemical Formula	Na₃Zr₂Si₂PO₁₂	/	/
Abbreviation	NZSPO or NZSP	/	/

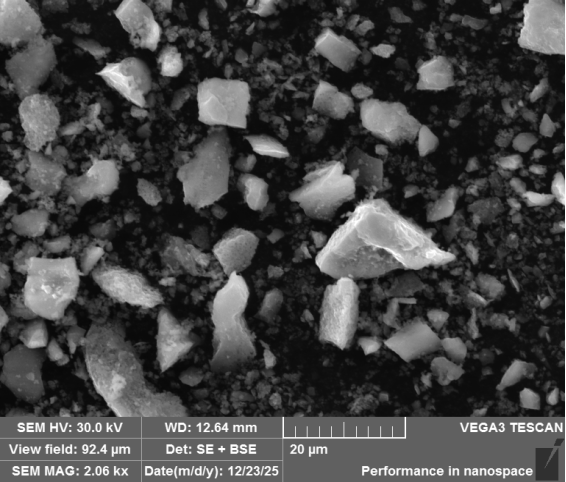

Particle Size	2	μm	Laser particle size analyzer
Moisture Content	< 0.025	%	Moisture analyzer
Ionic Conductivity	> 1.1	mS/cm	Sintered ceramic pellet, EIS test at 25 °C

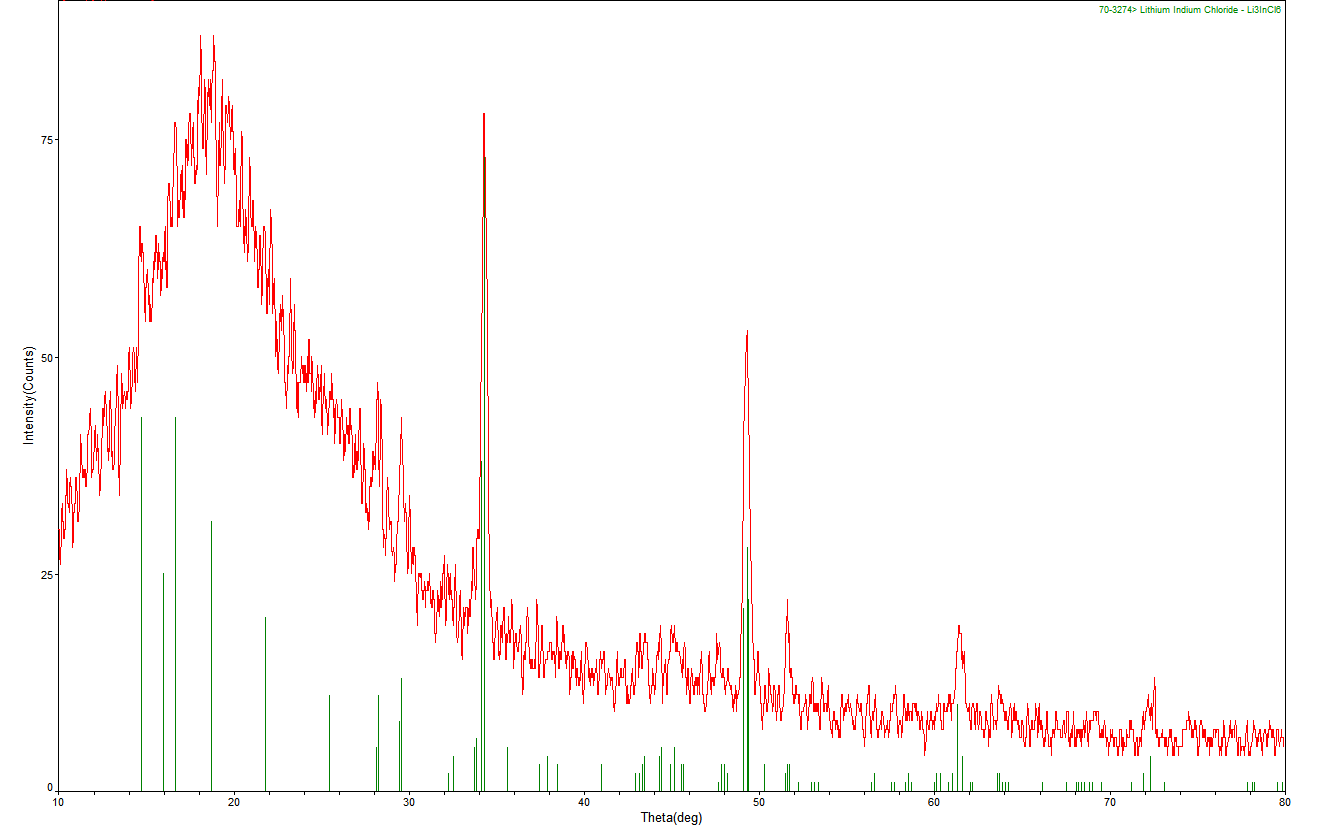

Crystal Structure	NASICON structure	/	X-ray diffraction (XRD)
Storage Requirements	Store in a sealed, dry environment to prevent moisture absorption and degradation. Shelf life: 6 months.
Recommended sintering temperature	The powder was dehydrated using isopropyl alcohol, followed by ball milling to achieve uniform dispersion, and then vacuum-dried. Approximately 0.3 g of the powder was uniaxially dry-pressed at 150 MPa and held for 1 minute. The green pellets were sintered at approximately 1150 °C. During sintering, a powder-bed covering was optionally used to suppress sodium volatilization. After sintering, the pellets were ground and polished according to surface smoothness and mechanical hardness. Coarse grinding was first performed, followed by fine grinding using sandpapers with grit sizes ranging from 100 to 2500 mesh. The surface was then polished to near-mirror finish. Gold was sputtered onto both sides of the pellets, and the coating quality was evaluated. A two-point resistance below 100 Ω measured over a 10 mm distance was considered acceptable. Electrochemical impedance spectroscopy (EIS) measurements were then conducted. The electrochemical workstation was set to the highest possible response frequency, with a test frequency range of 10 MHz to 1 Hz. Notes: The dry-pressing parameters may be optimized according to the actual condition of the powder, and the applied pressure can be adjusted accordingly. The test results are influenced by multiple factors, including sintering conditions, surface polishing quality, gold coating effectiveness, and testing temperature. This procedure is provided for reference only, and users are encouraged to further optimize the protocol based on their specific requirements.
