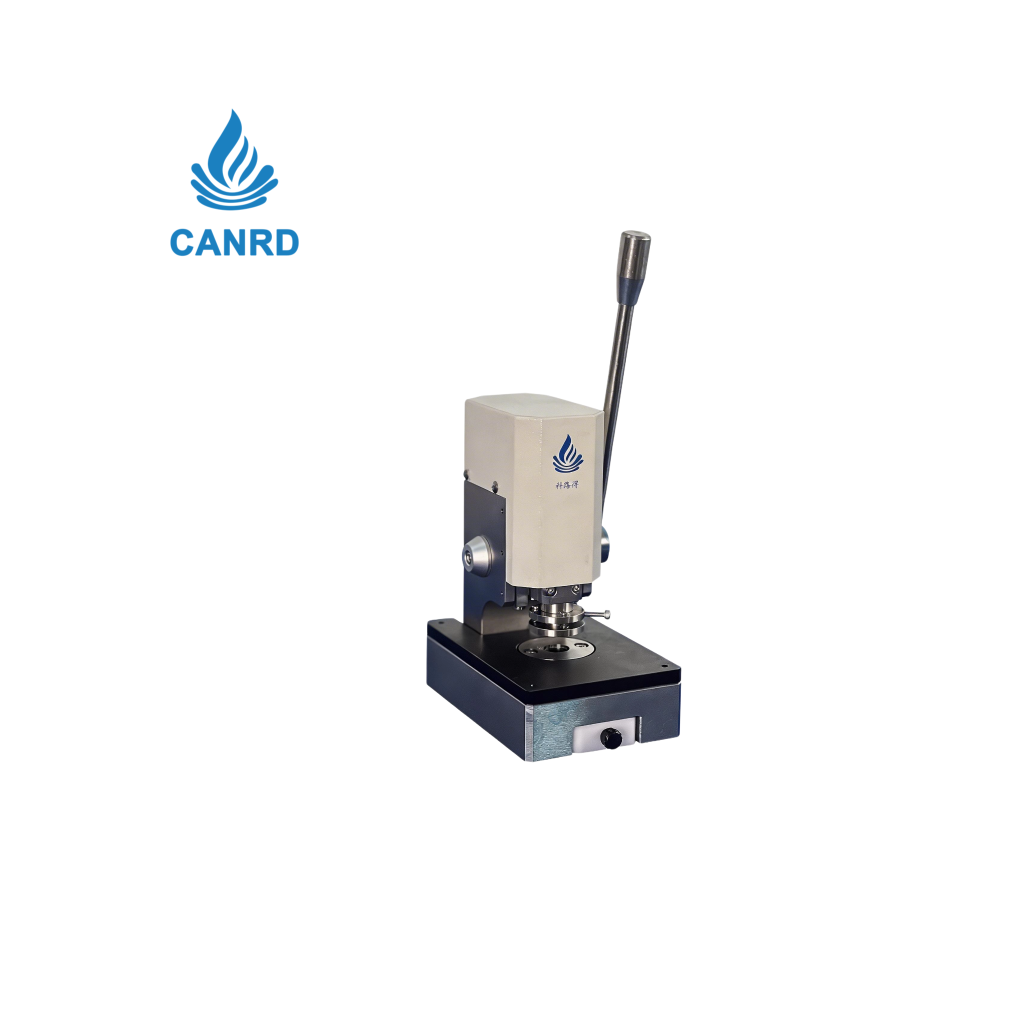

Model：
CAN-SLI50-0020WS
Applied range：
Itis suitable for punching film blanking on materials such as positive and negative electrode sheets and diaphragms of batteries with a thickness of 0.01mm to 0.5mm. Manual operation, matching different size molds, punching products without indentation, good appearance.
Date issued：
2024-12-18 23:48:15
Equipment Size：
L200mm* W120mm * H230mm
Weight：
6kg

Details

This punching machine is designed for use in film coating and button cell production lines, supporting precise punching of electrode materials and separators in battery research and small-scale manufacturing. The CAN-SLI50-0020WS model from Canrd delivers consistent dimensional accuracy suitable for laboratory prototyping or pilot production of coin-type cells. Its integration into a coating workflow allows reliable material preparation for studies on electrode composition or electrolyte interaction. While no specific performance data is provided, the equipment is intended to meet standard tolerances required in advanced materials testing. Common applications include cell assembly for battery performance evaluation and research into thin-film electrode architectures.
Device size
L200mm * W120mm * H230mm
Device weight
About 6kg
Appearance color
Off-white RAL9006 (user can specify color, color plate is required)
Environment
regular environment, can be used in the glove box
Punching Die
Diameter φ3 ~ φ24mm, regular Series φ10/φ12/φ14/φ15/φ16/φ19/φ20mm (Customizable)
Punching Pressure
Up to 300KG
Punching Stroke
Up to 20mm
Punchable Material
0.01~0.5mm Thick Sheet, lithium battery diaphragm and pole piece can be punched (weighing paper or A4 paper is required in special cases)

& nbsp; & nbsp; & nbsp; It is suitable for punching and blanking on materials such as positive and negative electrode sheets and diaphragms of batteries with a thickness of 0.01mm ~ 0.5mm. Manual operation


1. Can be equipped with different specifications of the mold can be in the pole piece, diaphragm punching, blanking and other processes;

2. The upper die is guided by high-precision slide rails, with high punching accuracy and few burrs, burrs, indentations, etc.;

3. The appearance is exquisite and beautiful, simple and simple to clean and maintain, and has the advantages of small size;

4. Small size, easy to operate, flexible and quick to use, and can pass freely in the glove box with a diameter of & Phi;230mm or more;
