Details
1. Product use
(1) It is widely used in the basic research of electrochemical conductivity and impedance of positive/negative electrode materials of various lithium-ion batteries, positive/negative electrodes of sodium-ion batteries and positive/negative electrodes of potassium-ion batteries.

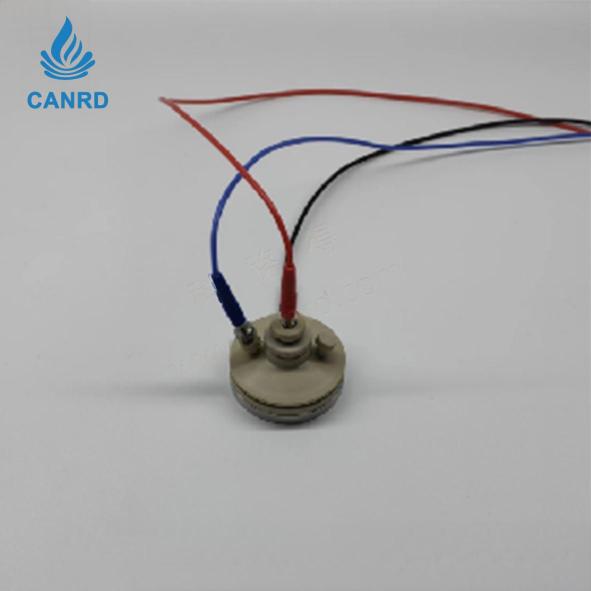

(2) The mold is suitable for lithium battery three-electrode testing.
(3) Easy to use and easier to focus.
Features:
(1) Cavity diameter 50mm, thickness 28mm, window 6mm (customizable).
(2) The cavity is sealed with O ring, and the cavity is made of PEEK as the main body, which is acid and alkali resistant and high temperature resistant.(3) Easy to operate, compact in size, easy to disassemble and assemble.(4) Widely used in various current collector materials.(5) It can be configured with high and low temperature devices.(6) The electrode area is adjustable.
