Glass Fixture Kit for Pouch Cell Formation, Capacity & Cycle Testing

$132.90

Name

Spezifikationen

✓ Ausgewählt: 2 glass plates + 1 dovetail clip / 12set

Menge

Qualitätsgarantie

Direkt ab Werk

Weltweiter Versand

Details

Product Advantages:

It ensures uniform flatness and consistent thickness for all cells, improving overall cell thickness consistency.
The pressurized forming iron clamps prevent pouch cell swelling and deformation. Compared with commonly used dovetail clips, acrylic plates and bakelite boards, the iron clamps deliver higher clamping force up to 50kg; the tempered glass features high hardness and permanent deformation resistance.
It optimizes electrode-electrolyte interfacial contact, reduces thickness swelling during cycling, and enhances cycling consistency.
Simple and fast operation, with an average loading speed of 15 cells per minute.
It can replace traditional hot & cold pressing processes, effectively forming a stable SEI interfacial layer to boost cell cycling performance and service life. The clamp forming process enables better electrolyte infiltration into electrode pores.

Product Specifications & Recommendations:

Overall Dimensions: Iron clamp: 46.724.650mm, thickness 1.5mm

Tempered glass: 90*80*3mm

Main Materials: Manganese steel, tempered glass

Application:Suitable for formation, capacity testing and cycle testing of all types of pouch cells

Working Pressure: 30kg

Ambient Temperature: ≤120°C Note: Operation above the temperature limit will shorten fixture service life.

Service Life: Over 10,000 operation cycles

Operation Mode: Opening and clamping via pneumatic tools

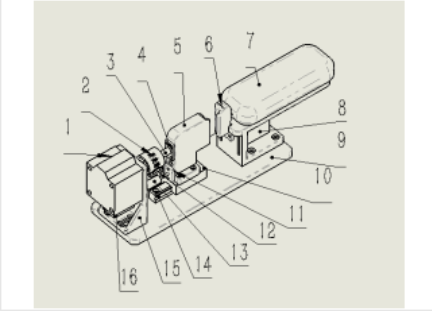

Clamp Opener Engineering Drawing：

1. Large air cylinder — for opening iron clamps
2. Main regulating valve — adjusts the opening stroke width of iron clamps
3. Connecting rod — links air cylinder and movable jaw
4. Connecting block — fastens connecting rod to movable jaw
5. Movable jaw — mounts iron clamps
6. Fixed jaw — holds iron clamps, mounted on force gauge
7. Force gauge — measures clamping force when iron clamps are opened. Refer to the force gauge manual for full functional instructions.
8. Force gauge base — fixes the force gauge in place
9. Base plate — main mounting base of the equipment
10. Slide block — guides the movement of movable jaw
11. Small connecting block — secures small connecting rod and movable jaw
12. Small connecting rod — connects small air cylinder
13. Small regulating valve — adjusts opening width for cell unloading
14. Slide rail — supports slide block, guides movable jaw travel
15. Cylinder support — mounts large air cylinder and small air cylinder
16. Small air cylinder — positions movable jaw during cell unloading
1. The clamping force of iron clamps can be customized as required.
2. The dimensions of tempered glass plates can be customized according to customer requirements.
3. Iron clamps must be used together with clamp openers and tempered glass plates during operation.
