Sealed Electrolytic Cell with Gas Inlet and Outlet Tubes

$135.92

رقم المنتج:MA-CM-AE-005801

المواصفات

✓ تم الاختيار: 1piece 50 ml

الكمية

ضمان الجودة

مباشرة من المصنع

الشحن العالمي

Details

نظرة عامة

تفاصيل

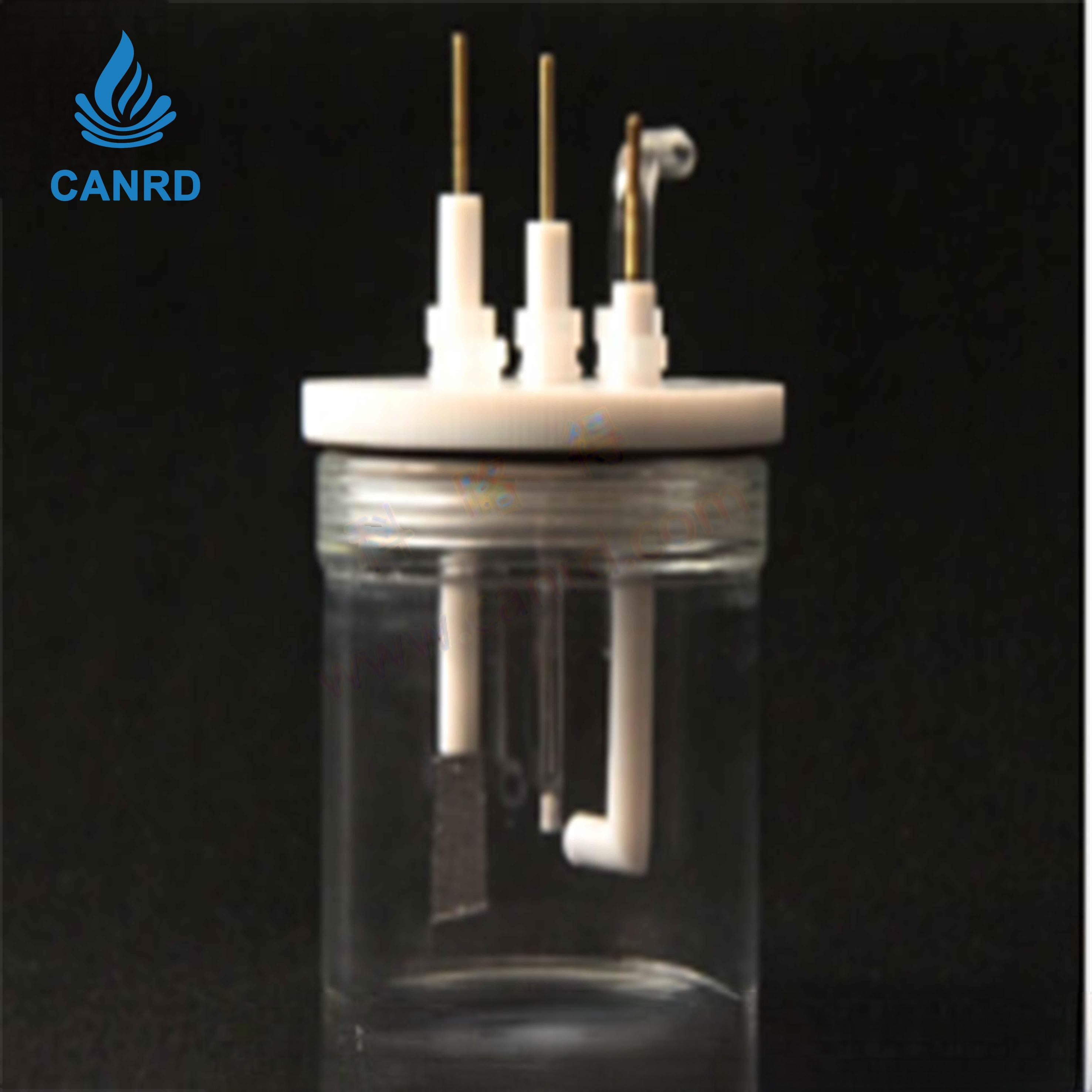

This sealed electrolyte cell is designed for three-electrode electrochemical experiments requiring a controlled atmosphere or gas exchange. It features a glass vessel with a polytetrafluoroethylene cover that seals the system, minimizing air contamination during measurements. The cover is equipped with three 6 mm electrode holes by default, with customizable dimensions and hole count available upon request, allowing adaptation to specific electrode geometries. Integrated inlet and outlet tubes facilitate gas purging or connection to auxiliary equipment such as RuJin capillaries. Available in capacities from 50 to 250 mL, this cell suits applications in energy materials and analytical electrochemistry where stability and reproducibility are essential. Please note that the cell is supplied without electrodes, and a vent hole can be added if required.

Note: The electrolytic cell cover has three 6mm electrode holes by default. The size and number of holes on the cover can be customized according to the electrode size purchased by the customer. Please inform us in advance. The electrode in the photo is for reference only.

No electrode, please contact customer service for remarks if a vent hole is required. Default without vent hole, the electrode shown in the picture is for reference only.

Product features: Sealed system, polytetrafluoroethylene cover, three electrode system, with matching inlet and outlet tubes, can be used with RuJin capillary.

Cell material: glass

Cover material: polytetrafluoroethylene
