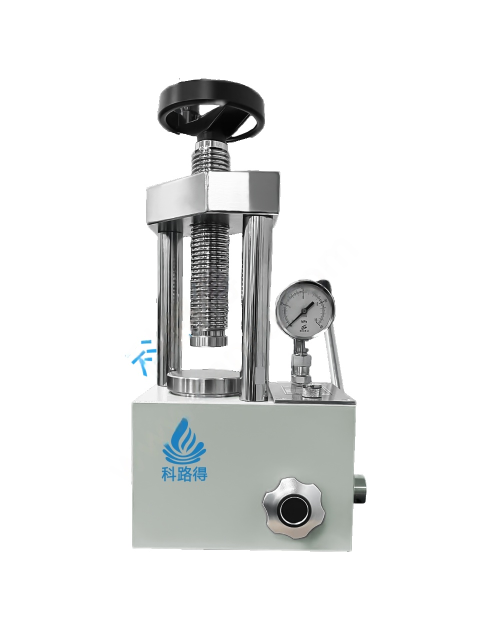

Powder Pellet Press (0-5 T)

Name: Powder Pellet Press (0-5 T)
Brand: Canrd
Availability: InStock

Model：

CAN-TAP60-0005ST

Applied range：

Suitablefor solid electrolyte battery positive electrode, electrolyte membrane pressure sheet.

Date issued：

2024-12-23 03:35:56

Equipment Size：

225x155x380mm(L*W*H)

Weight：

28kg

Details

نظرة عامة

مواصفات

تفاصيل

This product is designed for powder compaction in advanced battery manufacturing, specifically tailored for dry electrode preparation and solid-state battery production lines. The CAN-TAP60-0005ST tablet press from Canrd integrates precise mechanical control to achieve uniform density and thickness in electrode powder compacts, critical for electrochemical performance and scalability. Its engineering supports consistent pressure application, suitable for research and pilot-scale processing of solid electrolytes, cathode, or anode powders. Commonly used in dry electrode coating workflows and solid-state cell prototyping, this equipment helps maintain material integrity during pressing. The compact design and reliable operation make it a practical tool for laboratories transitioning from material synthesis to prototype testing, aligning with the growing demand for solvent-free electrode fabrication methods.

Number of Columns	2
Cylinder Diameter	Chrome Plating Cylinder Φ45mm
Table Size	Φ80mm(D)
Overall Size	225 x155x380mm(L * W * H)
Equipment Weight	28KG

maximum piston stroke	30mm(T)
pressure gauge	pressure and pressure double scale display
pressure stability	≦ 1MPa/10min
Pressure range	0-5T

Suitable for solid electrolyte battery positive electrode

The integrated structure of this product has the advantages of no oil leakage and no pressure drop. If it is not used for a long time, it will not cause the problem of no pressure.
