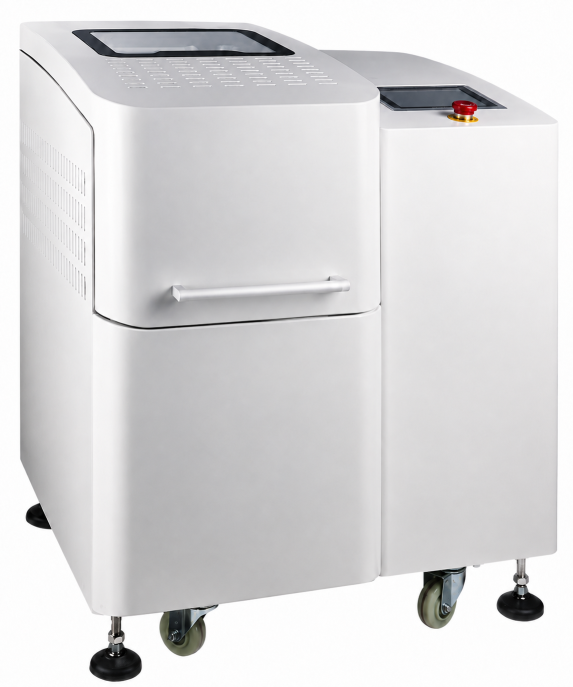

high energy planetary ball mill

Model：

CAN-MIX73-1602ST

Applied range：

Thehigh-energy ball mill is the 1 planetary high-energy ball mill with a maximum rotation speed of 1600 r/min. It is specially developed for dry grinding, wet grinding, mixing various powder materials and mechanical alloying of metal materials. The rotation and revolution speed of the tank body can be independently controlled, and enough high energy is generated in the tank to grind the particles to the nanometer range. It is suitable for long-term grinding process, so it is very attractive to scientific research and mechanical chemistry. Convenient operating system, less heating effect.

Date issued：

2024-12-23 19:31:43

Equipment Size：

770*718*875mm

Weight：

300kg

Details

Overview

Specifications

Details

This high energy planetary ball mill is developed for advanced material processing, particularly in battery research and production settings. Designed to support dry electrode preparation and solid-state battery manufacturing lines, it provides efficient grinding and mixing capabilities for fine particle size reduction. The equipment is suitable for handling a range of battery material precursors, including active materials, conductive additives, and solid electrolytes, where uniform dispersion and high-energy milling are critical. With a robust planetary drive mechanism, it ensures reproducible milling results essential for laboratory-scale development and process optimization. Its integration into dry electrode and solid-state battery workflows makes it a versatile tool for researchers and manufacturers aiming to improve material performance and processing consistency.

Voltage	220V 50/60HZ
Dimensions	770718875mm
Weight	300kg
Power	6kW

discharge particle size	~ 0.1um (wet grinding <1um; dry grinding <20um)
rotation speed	0-1600 r/min, centrifugal acceleration: 21G
sample characteristics	hard, medium hard, soft, brittle, elastic, fiber-containing
revolution speed	0-800 r/min, centrifugal acceleration: 120G
processing type	homogenization, mechanical alloying, crushing, grinding, mixing
male/rotation ratio	1 : 2
maximum injection size	brittle material <10mm, other materials <3mm
Grinding tank volume	4 *(50ml/100ml/250ml/500ml)
processing principle	impact force, shear force, friction force
grinding ball diameter	5mm
grinding tank quantity	2 or 4
tank material	stainless steel, zirconia, tungsten carbide
total centrifugal acceleration	141G

& nbsp; & nbsp; & nbsp; High-energy ball mill is the 1 planetary high-energy ball mill with a maximum rotation speed of 1600 r/min. It is specially developed for dry grinding

The rotation and revolution speed of the tank body can be controlled independently;
rotation speed: 0-1600 r/min, centrifugal acceleration: 120G;
revolution speed: 0-800 r/min, centrifugal acceleration: 21G, total centrifugal acceleration: 141G;
Large touch screen control panel, setting program, speed, grinding time;
Equipped with emitr remote control system, connected with computers, mobile phones, PAD and other terminals for intelligent control;
can store 3 modes and 15 schemes, with power-off protection memory self-starting function;
Can be dry grinding, wet grinding, vacuum grinding, protective atmosphere grinding;
Open lid safety travel switch, self-locking tank card anti-loosening design, safe and stable;
Professional German design engineer produced, set simple, beautiful, environmental protection, safety as one of the design concept.
