Four-Sided Fixed-Gap Film Applicator

Name: Four-Sided Fixed-Gap Film Applicator
Brand: Canrd
Price: 63.43 USD
Availability: InStock

$63.43

رقم المنتج:MA-CM-TO-000201

الاسم

المواصفات

✓ تم الاختيار: Overall Length: 100mm Coating Width: 80mm / 5\\10\\15\\20um

الكمية

ضمان الجودة

مباشرة من المصنع

الشحن العالمي

Details

نظرة عامة

مواصفات

تفاصيل

80 mm Coating Width | Four Fixed Coating Gaps | Stainless Steel

The CANRD Four-Sided Fixed Film Applicator is a manual coating tool designed for preparing wet films of controlled nominal thickness on flat substrates. It is widely applicable to laboratory-scale battery electrode slurry coating, material evaluation, and functional film preparation.

Each applicator features four fixed coating gaps, allowing researchers to select different gap settings by rotating the tool. Made of stainless steel, it offers durable construction and smooth working surfaces for routine laboratory use.

With an effective coating width of 80 mm and an overall length of 100 mm, this compact tool is suitable for small-scale coating trials and experimental sample preparation.

Key Features

Four Fixed Coating Gaps:

Each applicator provides four different fixed gap sizes, allowing researchers to compare coating conditions without switching between multiple tools.

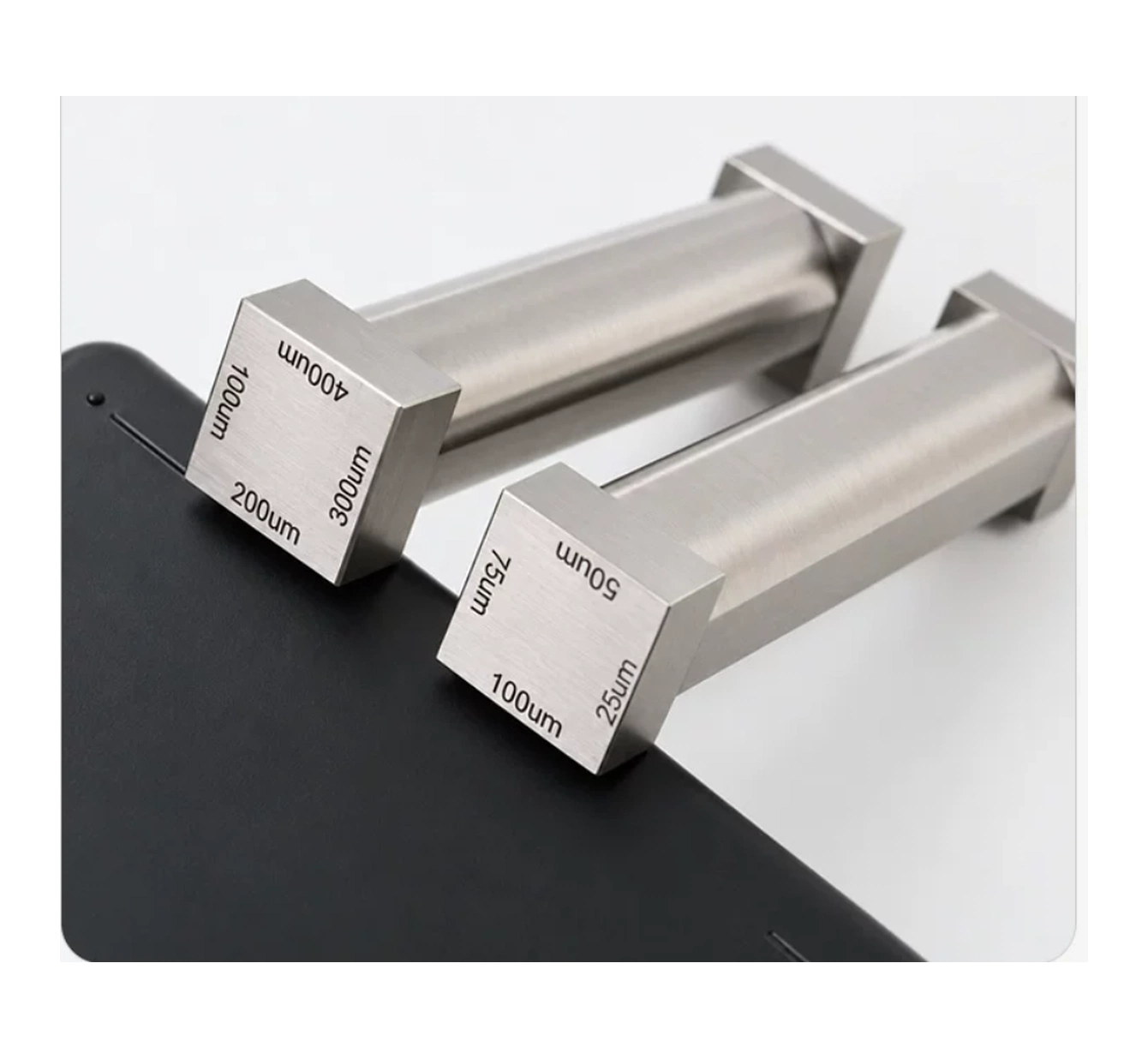

Clearly Engraved Gap Marking

Each fixed coating gap is marked on the end face for quick identification and selection.

Stainless-Steel Construction

Manufactured from stainless steel for durability, wear resistance, and convenient cleaning after coating.

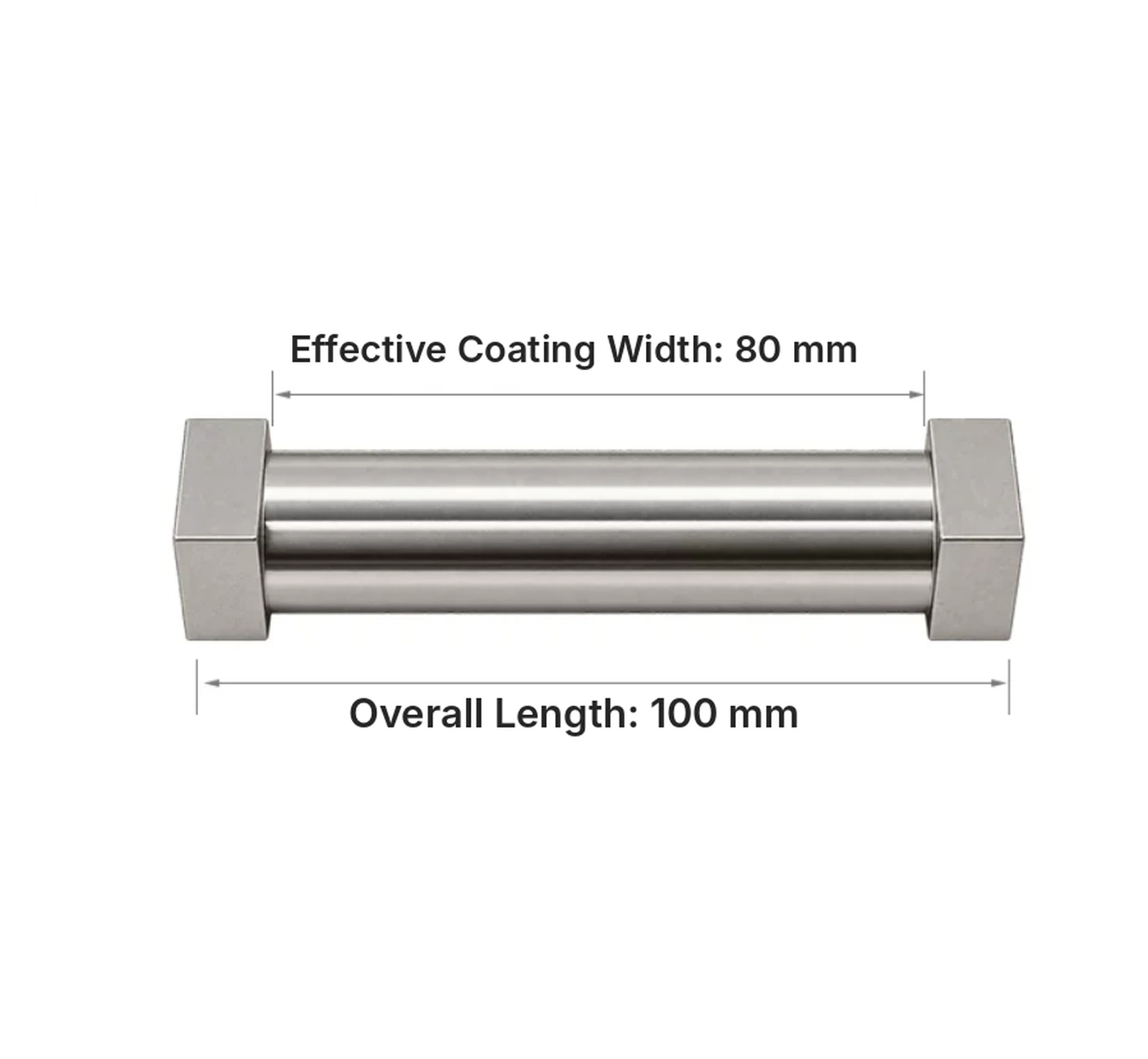

80 mm Effective Coating Width

Suitable for small-scale laboratory coating, electrode preparation, and comparative evaluation of experimental slurry formulations.

Technical Specifications

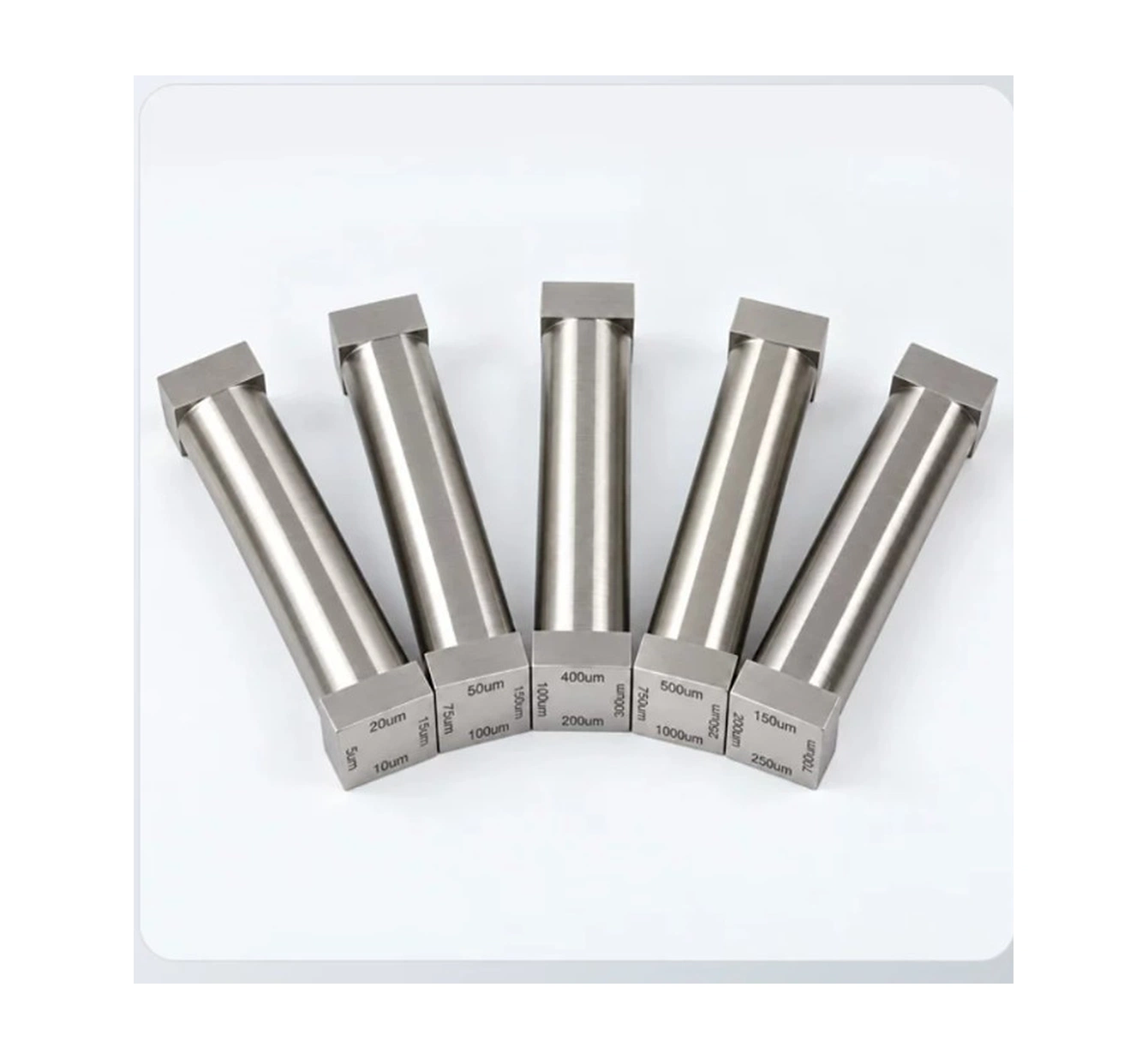

Option	Fixed Coating Gaps (Four Sides, μm)	Overall Length (mm)	Effective Coating Width (mm)
01	5 / 10 / 15 / 20	100	80
02	10 / 15 / 20 / 25	100	80
03	25 / 50 / 75 / 100	100	80
04	50 / 100 / 150 / 200	100	80
05	30 / 60 / 90 / 120	100	80
06	100 / 200 / 300 / 400	100	80
07	50 / 75 / 100 / 150	100	80
08	100 / 150 / 200 / 250	100	80
09	250 / 500 / 750 / 1000	100	80
10	900 / 1000 / 1100 / 1200	100	80

Note: Each applicator features four separate fixed coating gaps, one on each side. The specified gap values refer to nominal applicator clearances, not the actual wet-film or dry-film thickness. Actual coating thickness depends on slurry properties, substrate conditions, coating speed, and drying parameters.

Complies with ASTM D823

Customization Available: Different coating widths and fixed coating gap sizes can be customized upon request.

Applications

Battery Electrode Preparation

Suitable for laboratory-scale coating of cathode and anode slurries onto properly secured aluminum or copper foil substrates.

Slurry and Binder Evaluation

Enables researchers to compare the coating behavior of different slurry formulations, binder systems, and material dispersions.

Functional Film Preparation

Applicable to laboratory preparation of compatible coating formulations, inks, and functional films on appropriately supported flat substrates.

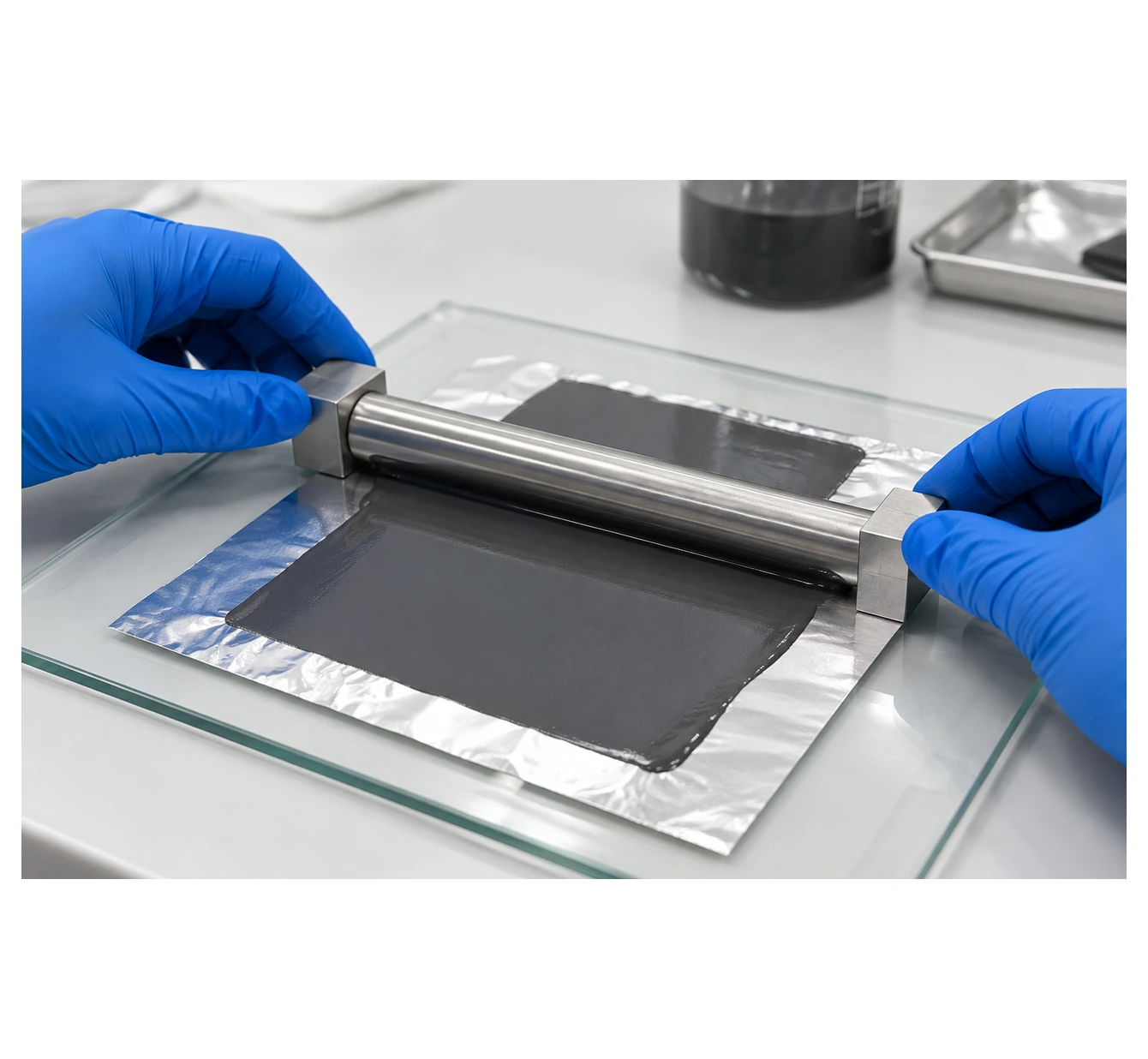

How to Use

Prepare the Substrate: Place the substrate on a clean, level surface and secure it firmly to prevent movement during coating.
Select the Coating Gap: Rotate the applicator to select the required fixed gap according to its engraved marking.
Apply the Slurry: Dispense an appropriate amount of well-mixed coating slurry ahead of the applicator.
Draw the Film: Move the applicator smoothly across the substrate at a consistent speed, avoiding tilting or interruptions.
Dry and Evaluate: Dry the coated sample under suitable conditions and evaluate the resulting coating.
Clean After Use: Remove residual slurry promptly using a compatible cleaning solvent, then dry the applicator thoroughly.

Frequently Asked Questions

Q: Does the coating gap equal the final film thickness?

A: No. The specified gap represents the nominal mechanical clearance. Actual wet-film and dry-film thicknesses depend on slurry rheology, solids content, coating conditions, and drying behavior.

Q: Are the coating gaps adjustable?

A: No. Each applicator provides four fixed coating gaps. Different gap combinations are available to accommodate different coating requirements.

Q: Can it be used for battery electrode slurry coating?

A: Yes. The applicator can be used for laboratory-scale cathode and anode slurry coating on flat, securely fixed substrates.

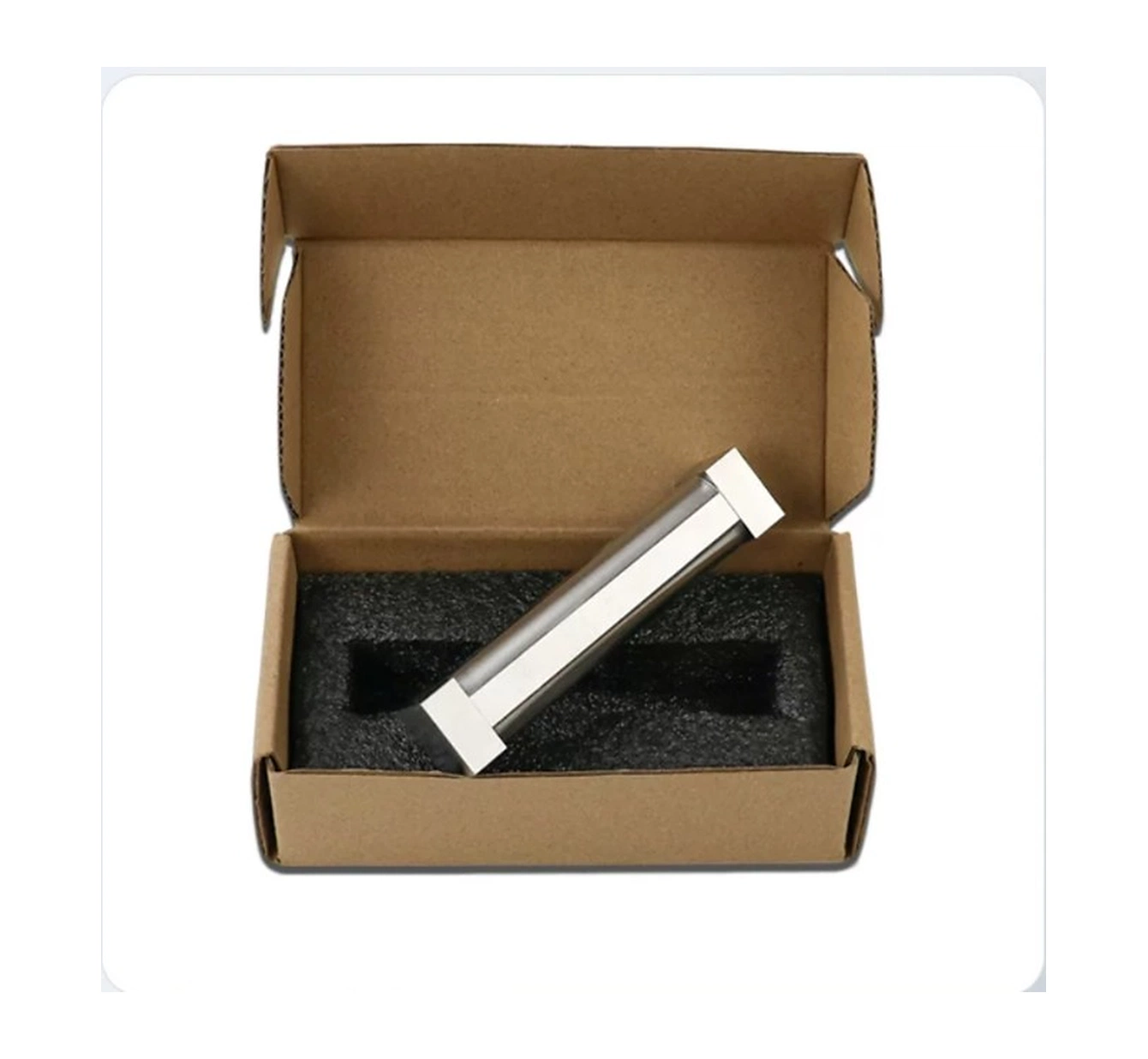

Packaging

Protective packaging helps reduce the risk of damage to the applicator's working surfaces during transportation. The packaging shown is for reference; the final packaging configuration should be confirmed when ordering.
