CR2032 Coin Cell Case Kit for Lithium-Air Batteries (Mesh Type)

Name: CR2032 Coin Cell Case Kit for Lithium-Air Batteries (Mesh Type)
Brand: Canrd
Price: 120.82 USD
Availability: InStock

$120.82

الاسم

المواصفات

✓ تم الاختيار: CR2032 Meshed Positive Case / 100 pcs

الكمية

ضمان الجودة

مباشرة من المصنع

الشحن العالمي

Details

نظرة عامة

مواصفات

تفاصيل

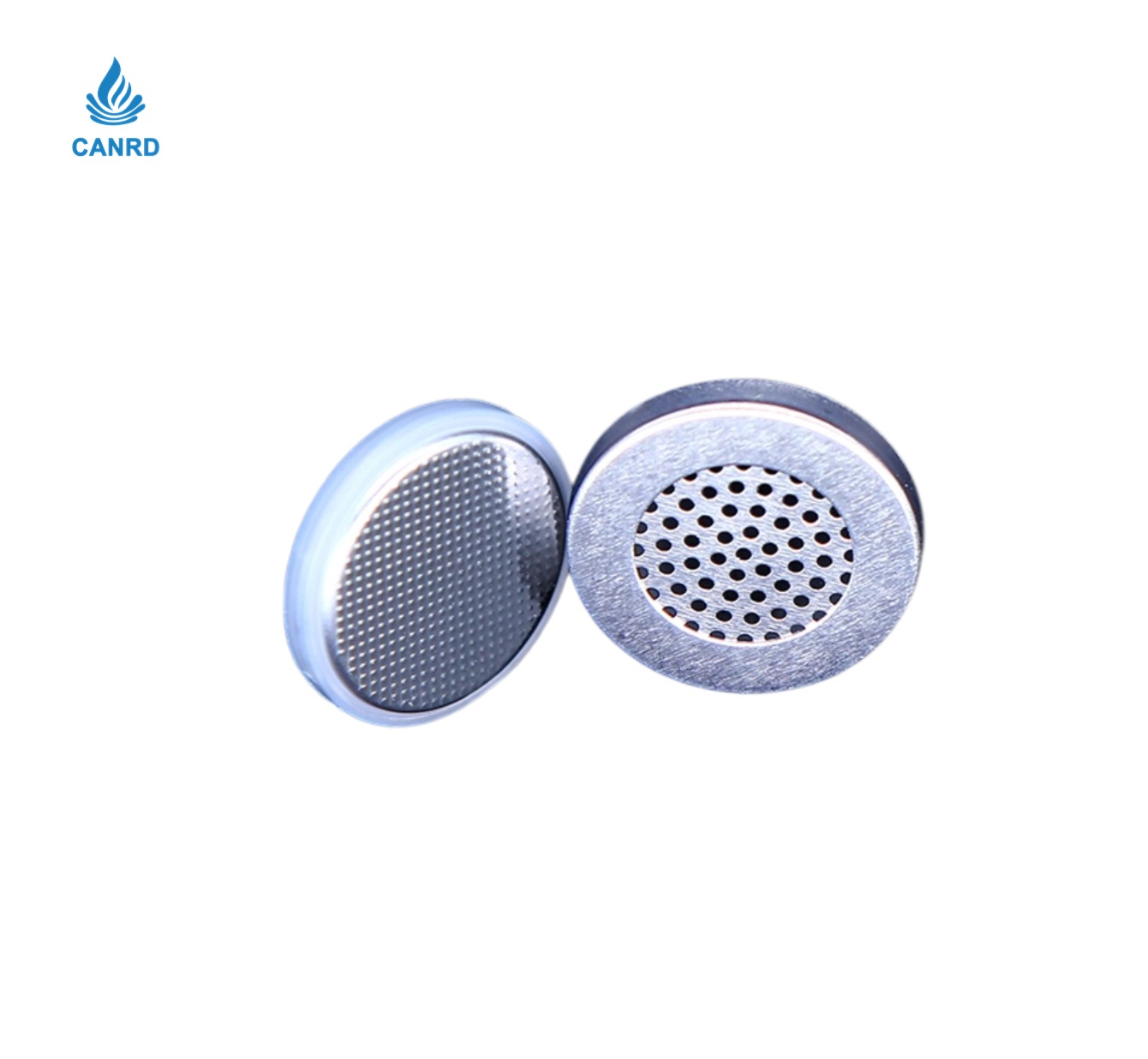

This CR2032 lithium meshed coin cell case kit is designed for researchers working with lithium-air or other gas-diffusion battery systems, where the perforated positive shell facilitates oxygen access to the electrode. Manufactured from high-quality 304 stainless steel, each component—including the mesh anode case, contact spring, and gasket—is pre-cleaned with professional solvents and ready for direct use in laboratory assembly. The kit supports customization of spacer and spring dimensions to match specific experimental configurations, with options for both positive-only cases or full sets including negative cases and spacers. Commonly employed in energy materials research, these coin cell cases enable reliable testing of novel cathode chemistries under controlled conditions, providing a standardized platform for evaluating electrochemical performance in coin-type battery setups.

Battery cover (anode shell), contact spring, gasket cleaning recommendations:

1. Choose alkaline or neutral solvent (such as deionized water) for ultrasonic cleaning for 10-20 minutes;

2. Rinse with deionized water using ultrasonic cleaning 2-3 times, 1-2 minutes each time;

3. Dry

Positive shell cleaning recommendations (not recommended for ultrasonic cleaning, as it may cause scratching):

1. Soak in alkaline or neutral solvent (such as deionized water) for 10-20 minutes;

2. Rinse with deionized water 2-3 times, 1-2 minutes each time;

3. Dry

Note: Korode shell, shell cover, contact spring, and gasket have been cleaned with professional solvents before shipment and can be used directly without cleaning requirements.

Made of high-quality 304 stainless steel, suitable for battery production.

Other models can also be customized according to customer requirements.

Please note the gasket and contact spring model when placing an order:

CR20** spacer-15.8*0.5	15.8*0.5mm
CR20** spacer-15.8*1.0	15.8*1.0mm
CR20** spacer-15.8*1.5	15.8*1.5mm
CR20** spacer-16.1*0.5	16.1*0.5mm
CR20** spacer-16.1*0.8	16.1*0.8mm
CR20** spacer-16.2*1.5	16.2*1.5mm
15.41.10.3mm(Funnel shrapnel)	15.4*1.1mm
15.41.20.3mm(Funnel shrapnel)	15.4*1.2mm
15.41.30.3mm(Wave shrapnel)	15.4*1.3mm
131.80.3mm(Wave shrapnel)	13*1.8mm
20.01.60.3(Wave shrapnel)	20.0*1.6mm
