Cell & Module Testing Capabilities

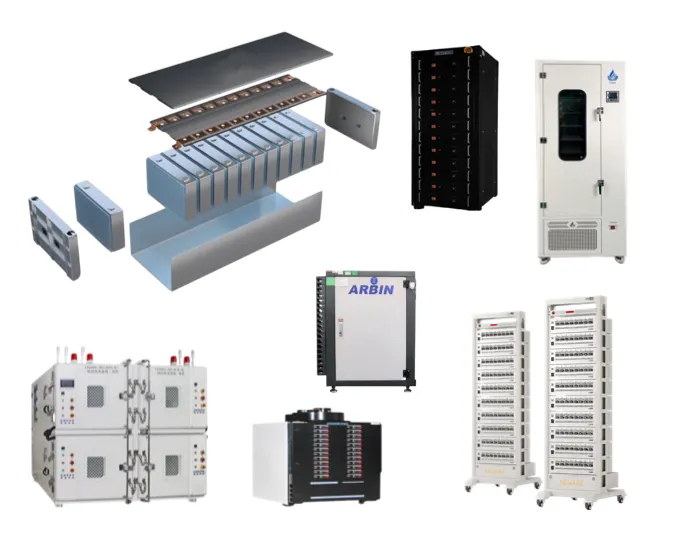

Equipped with high-precision battery testing systems, temperature and temperature-humidity chambers, and liquid-cooled integrated test platforms, enabling accurate performance evaluation of cells and modules under controlled thermal and electrical conditions.

Our Services

Item

No. Equipment Type Main Brand Range Accuracy Channels Key Test Items
1 Charge/Discharge Equipment Lande 5V 5mA~20mA 0.5‰ F.S. 160 Room temperature capacity and energy (initial capacity and energy), room temperature power (initial power), standard cycle life, working condition cycle life, room temperature rate discharge capacity, room temperature rate charge performance, low temperature discharge capacity, high temperature discharge capacity, charge retention and capacity recovery
2 Charge/Discharge Equipment Canrd 5V 5mA~100mA 0.2‰ F.S. 160
3 Charge/Discharge Equipment Neware 5V 3A~50A 0.5‰ F.S. 576
4 Charge/Discharge Equipment AVL 800V/600A 0.1‰ F.S. 2
5 Charge/Discharge Equipment LITE 5V/5A 0.1‰ F.S. 16
8 Charge/Discharge Equipment Arbin 1000V/800A 0.2‰ F.S. 4
9 Charge/Discharge Equipment Arbin 120V/300A 0.5‰ F.S. 22
10 Charge/Discharge Equipment Chroma 150V/500A 0.5‰ F.S. 8
11 Charge/Discharge Equipment Chroma 100V/500A 0.5‰ F.S. 4
12 High-Precision Test Cabinet Maccor, Arbin, LITE 5V 30A~500A ±0.025% FS 596 Cycle, storage, gas generation, capacity, rate, high/low temperature, lithium plating, SOC-OCV, DCR, HPPC, Power, Imax, working conditions, etc.
13 Fast Sampling System Neware, Shenghong 5V 30A~1000A ±(0.05%FS + 0.05%RD) 2414
14 Standard Precision Test Cabinet Neware, Jice, Shenghong 5V 6A~1500A ±(0.05%FS + 0.05%RD) 15630
15 Thermal Chamber Integrated System Neware, Jice, Shenghong 5V 20A~700A ±(0.05%FS + 0.05%RD) 4548
16 Oven Integrated System Neware, Jice 5V 20A~600A ±(0.05%FS + 0.05%RD) 4077
17 High/Low Temperature Integrated System Neware, Jice 5V 20A~600A ±(0.05%FS + 0.05%RD) 1724
18 Liquid-Cooled Integrated System Neware, Jice, Shenghong 5V 20A~1000A ±(0.05%FS + 0.05%RD) 2174
19 High/Low Temperature Chamber Sanki, Tsinghua, BEL, Canrd -75℃~150℃ Temperature deviation: ±1℃; Uniformity ≤1℃ 60 units
20 Temperature Room Neware, Jice, Shenghong 5V 6A~1000A Temperature deviation: ±1℃; Uniformity ≤1℃ 20720
