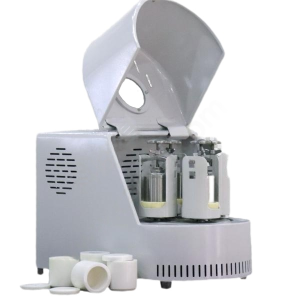

vertical planetary ball mill

vertical planetary ball mill

Model：
CAN-MIX73-0400MS
Applied range：
Theproduct is small in size, full-featured, high efficiency and low noise. It is an ideal equipment for scientific research units, institutions of higher learning and enterprise laboratories to obtain micro-particle research samples (four samples can be obtained at the same time in each experiment). It can be equipped with a vacuum ball milling tank to grind samples under vacuum.
Date issued：
2024-12-23 19:48:44
Equipment Size：
500*300*340mm
Weight：
26kg

Details

Equipment Size
500*300*340mm
Power
About 250W
Weight
26kg Feed Size
Power Supply
220V
discharge particle size
minimum up to 0.1 μm
maximum continuous working time (full load)
48 hours
rotation speed
revolution: 45-435R/MIN, rotation: 90-870R/MIN
feed particle size
soil material ≤ 10MM, other materials ≤ 3MM
power of three-phase motor frequency conversion controller
0.25KW (with power display electronic monitoring device, continuous operation timing time (min): positive and negative commutation operation period (min)
speed regulation mode
stepless speed regulation, automatic timing forward and reverse rotation, automatic shutdown

& nbsp; & nbsp; & nbsp; The product is small in size


1. Small volume, the structure is made of thickened steel plate, and the shell is made of thickened plate, which is anti-vibration, stable, soundproof and stable, and is sprayed inside and outside;

2. Use creative oil seal technology and noise reduction materials to reduce noise and improve comfort

3. Fully automatic processing, no debugging, simple to use, practical and full-featured;

4. Low power, low loss, low cost, low failure;

5. select the european standard conical drive wheel, european standard electrical accessories and circuit design, brand frequency converter, electric and other gao standard accessories to ensure quality and service life;

6. The impact energy is strong, the discharge is more uniform, the precision is higher, the crushing ability is stronger, the sample size is finer, and the processing speed is faster;

7. can set the grinding time, intermittent time, movement direction, movement speed, and has the power-off memory, emergency stop, overload protection function;

8. Long service life, strong stability, can meet the long-term, high-intensity experimental requirements;

9.25ml, 50ml, 100ml, 250ml different volume ball milling tank can be universal.
