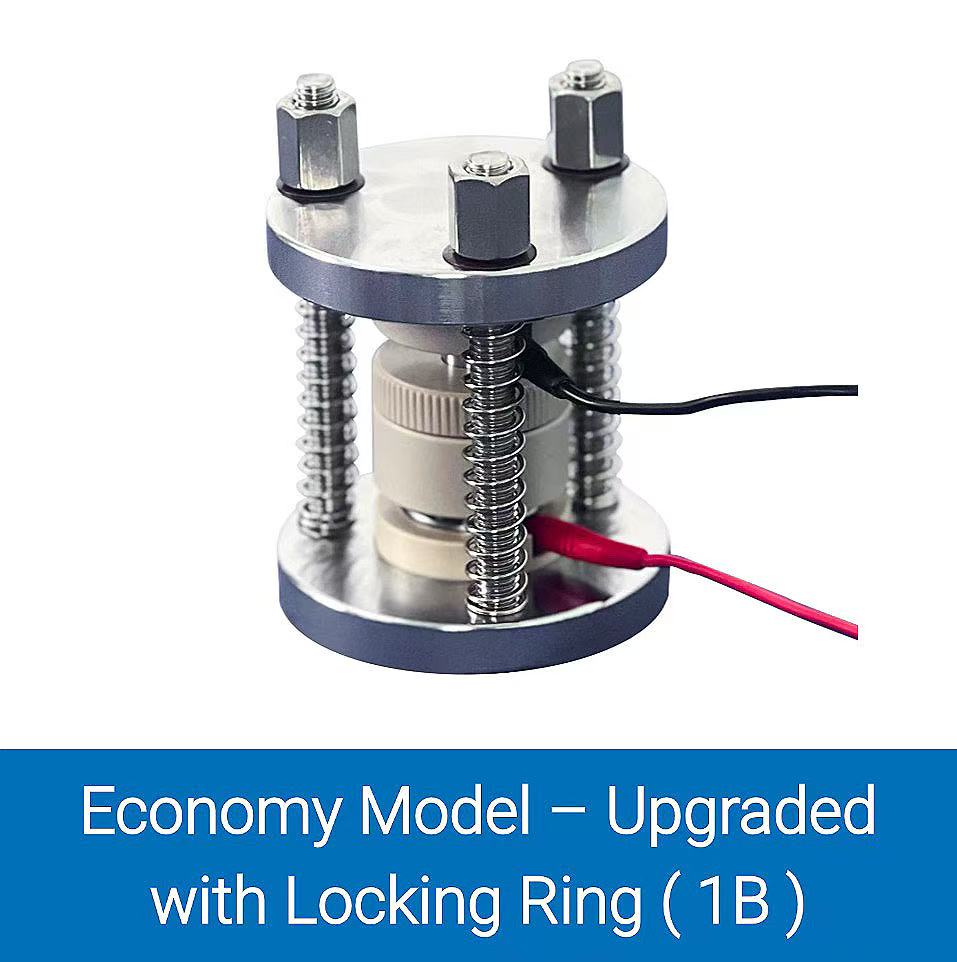

Solid-State Battery Mold – Upgraded Locking Ring (1B)

This product, the Solid-State Battery Mold with an upgraded locking ring (Model CF-SOL-MOL1B100A), is developed for researchers assembling and testing solid-state battery cells under controlled uniaxial pressure. It features an added upper locking ring designed for convenient pressure relief, along with a compact structure that simplifies assembly and disassembly. The mold incorporates a humanized insulation and positioning design, facilitating customization and ease of operation. With an electrode post diameter of 10 mm and a reference conversion of 0.8 T ≈ 100 MPa, this fixture supports a standard maximum working pressure of 500 MPa, with an optional 1000 MPa variant available. Typical applications include laboratory-scale solid-state battery fabrication and electrochemical characterization where precise mechanical loading is required.
